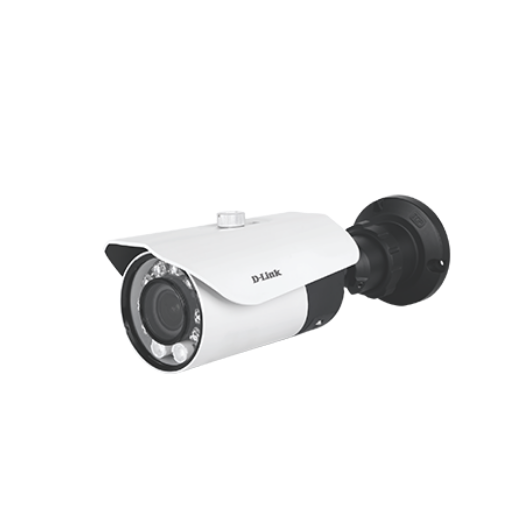

D-Link DCS-F4724 | 4MP Outdoor Varifocal Bullet Network Camera | 2592×1520 @30fps | IR Range up to 25m | Motorized 2.8-12mm Lens | Audio Support

The D-Link DCS-F4724 4MP Outdoor Varifocal Bullet Network Camera delivers high-definition security with a 2592×1520 resolution at 30fps. Featuring a motorized 2.8-12mm lens, 25m IR range, IP66 weatherproofing, and smart features like De-fog, Corridor Mode, and Region of Interest, this camera ensures optimal surveillance in all conditions. Supports SD storage up to 128GB and audio input/output.

The D-Link DCS-F4724 4MP Outdoor Varifocal Bullet Network Camera is engineered for professional-grade surveillance, offering crystal-clear video with a high 2592×1520 resolution at 30fps. Its motorized 2.8-12mm varifocal lens allows users to adjust zoom and focus remotely for precise monitoring, making it perfect for both wide-area and close-up surveillance.

​D-Link’s Indigenous Series is a range of surveillance solutions designed and manufactured in India, aligning with the government’s ‘Make in India’ initiative. This series includes a variety of IP-based cameras and Network Video Recorders (NVRs) tailored to meet the security needs of Indian consumers.

D-Link DCS-F4724 is equipped with powerful infrared night vision (up to 25m), this camera ensures reliable 24/7 monitoring, even in complete darkness. The IP66-rated weatherproof housing protects against rain, dust, and extreme temperatures, making it ideal for outdoor environments.

D-Link DCS-F4724 has advanced features such as Corridor Mode and Region of Interest (RoI) allow for optimized video coverage, reducing bandwidth and storage usage. The Smart De-fog technology improves visibility in foggy or low-contrast conditions, enhancing overall image clarity.

D-Link DCS-F4724 comes with local SD storage (up to 128GB), the DCS-F4724 offers flexible recording options without needing a dedicated NVR. Additionally, audio input/output support enables sound recording and two-way communication for enhanced security applications.

D-Link DCS-F4724 is ideal for homes, businesses, parking lots, and industrial sites, the D-Link DCS-F4724 is a powerful outdoor surveillance solution with advanced imaging technology and intelligent security features.

Category	Details
Image Sensor	1/3″ 4 MP Progressive Scan Exmor CMOS
Lens	Motorized lens, 2.8-12mm focal length
Aperture	F2.2
IR Illumination	Up to 25 meters, Smart IR support
ICR Filter	Built-in Infrared-Cut Removable (ICR) Filter module
Minimum Illumination	Color: 0.05 Lux; IR ON: 0 Lux
Shutter Speed	1/5 to 1/20000 seconds
Angle of View	Horizontal: 95° ~ 35°; Vertical: 48° ~ 20°
Minimum Object Distance	0.3 meters
Digital Zoom	10x

---

Camera Housing

Category	Details
Weatherproof Rating	IP66 compliant
Sunshield	Included

---

Image Features

Category	Details
Image Size/Quality	Configurable
Frame Rate	Configurable, up to 30 FPS
Privacy Mask Zones	Up to 4 zones
Text Overlays	Time stamp and customizable text
Image Adjustments	Exposure, Brightness, Saturation, Contrast, Sharpness, White Balance
Rotate/Corridor Mode	Supported
Digital Noise Reduction	2D and 3D technology
ROI Zones	Up to 8 configurable zones
Image Enhancement	WDR (Wide Dynamic Range), HLC (Highlight Compensation)

---

Video Compression

Category	Details
Compression Formats	H.264, H.265, MJPEG
Multicast Streaming	Supported
Still Images	JPEG format

---

Video Resolution

Category	Details
Main Stream	2592×1520, 2560×1440, 2304×1296, 1920×1080
Second Stream	D1 to QVGA

---

External Device Interfaces

Category	Details
Ethernet Port	10/100 BASET-X with PoE (802.3af)
Audio	1 channel Audio In, 1 channel Audio Out
BNC Output	Supported
Storage	Micro SD/SDHC/SDXC slot (up to 64GB)

---

Network Protocols

Category	Details
Supported Protocols	IPv4, IPv6, TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, HTTP/HTTPS, PPPoE, UPnP, RTP/RTSP/RTCP, Multicast
Compliance	ONVIF compliant

---

Security

Category	Details
User Protection	Administrator and user group protection
Authentication	HTTP and RTSP authentication
Encryption	HTTPS for web access
Access Control	Remote client access control

---

Event Management

Category	Details
Motion Detection	Supported
Alerts	SMTP client notifications
Event Notifications	Email alerts with snapshots

---

Remote Management

Category	Details
Web Interface	Accessible via web browser
Snapshots	Supported

---

OS and Mobile Support

Category	Details
Operating Systems	Windows 7/8/XP/Vista/2000 and higher, Android

---

DCMS System Requirements

Category	Details
Operating System	32-bit: Windows XP Pro SP3, Vista SP1, Win 7 SP1; 64-bit: Win 7 SP1, Win Server 2008 R2
Software Function	Control and manage up to 64 channels

---

Physical Specifications

Category	Details
Weight	830g
Power Supply	DC 12V & PoE (802.3af)
Power Consumption	3W (IR OFF), 5.5W (IR ON)
Operating Temperature	-30°C to 60°C
Operating Humidity	0% to 90% RH
Certifications	CE, FCC
Dimensions	80.3 × 264.5mm
