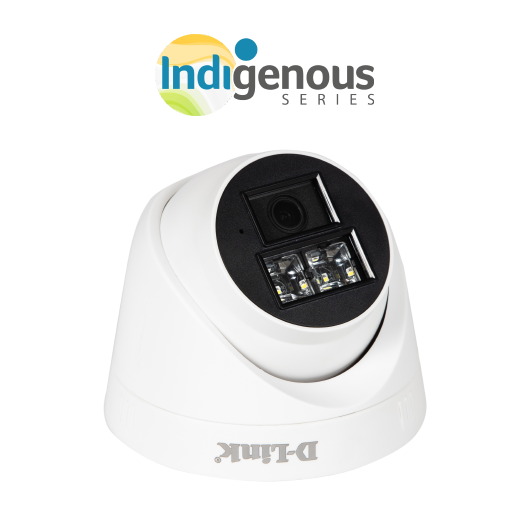

D-Link DCS-F5613-L1C | 3MP IP Dome Color Camera with Audio | 1/2.9″ Progressive Scan CMOS Sensor | 2.8mm Fixed Lens | Full HD 2304×1296 Resolution | Smart Functions | Dual Stream Support
The D-Link DCS-F5613-L1C 3MP IP Dome Color Camera delivers Full HD 2304×1296 resolution with built-in audio, smart functions, and dual-stream support. Equipped with a 2.8mm fixed lens, white light illumination up to 30m, DWDR, and 3DNR, it ensures vivid, clear surveillance in day and night conditions.
The D-Link DCS-F5613-L1C 3MP IP Dome Color Camera is an advanced surveillance solution designed for homes, offices, and commercial spaces. It features a high-performance 3MP Progressive Scan CMOS sensor, delivering crystal-clear 2304×1296 resolution video for detailed and accurate monitoring.
D-Link’s Indigenous Series is a range of surveillance solutions designed and manufactured in India, aligning with the government’s ‘Make in India’ initiative. This series includes a variety of IP-based cameras and Network Video Recorders (NVRs) tailored to meet the security needs of Indian consumers.
D-Link DCS-F5613-L1C comes with white light illumination up to 30 meters, this IP dome camera ensures full-color visibility even in complete darkness, making it ideal for low-light and nighttime surveillance. DWDR (Digital Wide Dynamic Range) and 3D Noise Reduction (3DNR) enhance image quality in varying light conditions, providing sharp, balanced footage with minimal noise.
D-Link DCS-F5613-L1C is equipped with smart surveillance functions, the DCS-F5613-L1C enables intelligent monitoring with features such as motion detection and event-based alerts. The Day/Night (ICR) mode automatically adjusts for optimal image quality around the clock.
D-Link DCS-F5613-L1C has dual-stream support optimizes bandwidth usage, ensuring smooth remote monitoring and recording. Additionally, the built-in microphone captures real-time audio, enhancing overall situational awareness.
D-Link DCS-F5613-L1C is designed for indoor applications, this compact yet powerful dome camera is ideal for security-conscious environments, such as retail stores, offices, warehouses, and residential properties. With its high-definition video, intelligent security features, and reliable performance, the DCS-F5613-L1C is a top choice for advanced surveillance needs.
Key Features:
✔ 3MP High-Resolution Video – Captures 2304×1296 Full HD footage for clear monitoring.
✔ 2.8mm Fixed Lens – Wide-angle field of view for enhanced coverage.
✔ White Light Night Vision (Up to 30m) – Full-color visibility even in low-light environments.
✔ DWDR & 3DNR – Enhanced clarity in high-contrast and low-light conditions.
✔ Day/Night (ICR) Mode – Auto-adjusts for optimal visibility 24/7.
✔ Smart Functions – Intelligent analytics for proactive security monitoring.
✔ Dual Stream Support – Efficient bandwidth management for seamless monitoring & recording.
✔ Built-in Audio – Captures ambient sounds for added security awareness.
Camera Specifications
| Category | Details |
|---|---|
| Image Sensor | 1/2.9″ 3MP Progressive CMOS Sensor |
| Effective Pixels | 2304(H) x 1296(V) |
| Minimum Illumination | Color: 0.001 Lux @F1.2 |
| S/N Ratio | >60dB |
| White Light Distance | Up to 30 meters |
| Shutter Speed | Auto, Manual Mode: 1/50 sec to 1/10000 sec |
| DWDR | Yes |
| IR On/Off Control | Auto/Manual |
| LEDs | 3 x 2pcs White LED |
Lens Specifications
| Category | Details |
|---|---|
| Lens Type | Fixed |
| Mount Type | M12 |
| Focal Length | 2.8mm |
| Max. Aperture | F1.2 |
| Angle of View | Horizontal: 103°; Vertical: 55.5°; Diagonal: 122.5° |
| Focus Control | Fixed |
Video Specifications
| Category | Details |
|---|---|
| Compression | H.264 / H.265 |
| Streaming Capability | 2 Streams |
| Resolution | 3MP (2304×1296), 2MP (1920×1080), D1 (704×576), VGA (640×480), CIF (352×288) |
| Streams | Mainstream: 3MP (2304×1296) / 2MP (1920×1080) @25fps; Sub Stream: D1/VGA/CIF @25fps |
| Frame Rate | 3MP @25/30fps |
| Bit Rate Control | CBR/VBR |
| Bit Rate Range | 27Kbps ~ 8Mbps |
Image Settings
| Category | Details |
|---|---|
| Day/Night | Automatic/Black and White |
| Exposure Mode | Automatic/Manual (1-1/10000) |
| BLC Mode | On/Off |
| Profiles | Auto, Low Light Priority, High Light Priority |
| Noise Filter | Auto, 2D (1-5 Levels) |
| Noise Reduction | Yes |
| I-Frame Interval | 1 to 20 |
| Digital Zoom | 16X, Area selection with Mouse |
| Anti-Flicker | On/Off |
| White Balance | Yes |
| AE Reference | 1-255 Level |
| AE Sensitivity | 1-10 Level |
| Flip | Off/On |
| Mirror | Off/On |
| Text Overlay | Title, Date & Time, Weekday |
| Privacy Masking | 4 Private Masking Options |
Event Management
| Category | Details |
|---|---|
| Motion Detection | Yes |
| Video Tempering | Supported |
| Smart Functions | Human Detection, Vehicle Detection, Line Crossing, Area Intrusion |
| Event Actions | Record alarm, Linkage alarm output, Sound alarm, Email link, Upload FTP, Snapshot |
Pan/Tilt Range
| Category | Details |
|---|---|
| Pan/Tilt Range | Pan: 0° ~360°; Tilt: 0° ~90°; Rotation: 0° ~360° |
Network & Audio
| Category | Details |
|---|---|
| ONVIF Authentication | On/Off |
| RTSP Authentication | Digest, None |
| Audio Compression | G.711A/U |
| Ethernet | 1 x RJ45, 10/100M adaptive Ethernet interface |
| Protocols | IPv4, TCP/IP, HTTP, HTTPS, UDP, RTSP, FTP, DHCP, DDNS, NTP, SMTP, UPnP, Alarm Server, IP filter |
| Interoperability | ONVIF Profile S |
| Max. User Access | 30 Users |
| Edge Storage | Local PC for instant recording, One-click Snapshot, One-click Triple Snapshot |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | VMS |
| Smart Phone Support | Supports VMS App for iPhone, Android |
Physical & Environmental
| Category | Details |
|---|---|
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F); <90% RH |
| Storage Conditions | -30°C ~ 60°C (-22°F ~ 140°F); <90% RH |
| Ingress Protection | NA |
| Vandalism Protection | NA |
| Power Rating | DC 12V / 1Amp, PoE |
| Power Consumption | Max 12W |
| Dimensions | 705 x 105 x 90mm |
| Weight | 225g |
