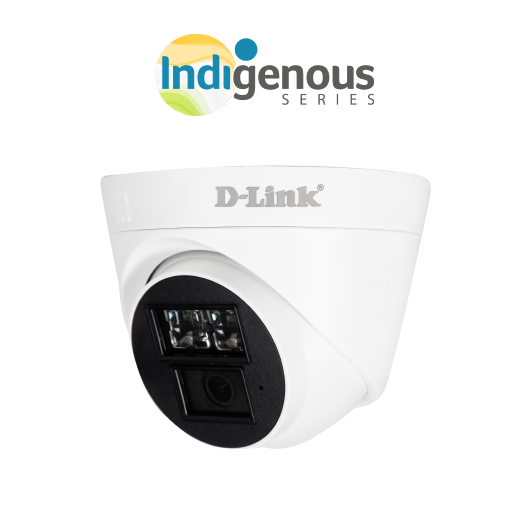

D-Link DCS-F5615-L1C | 5MP IP Dome Colour Camera with Audio | 1/3″ Progressive Scan CMOS Sensor | 2.8mm Fixed Lens | Full HD 2592×1944 Resolution | Smart Functions | Dual Stream Support

The D-Link DCS-F5615-L1C 5MP Dome Color IP Camera provides crystal-clear 2592×1944 Full HD resolution, built-in audio, and intelligent security features. With a 2.8mm fixed lens, 30m white light illumination, DWDR, and 3DNR, it delivers superior low-light and night surveillance performance.

The D-Link DCS-F5615-L1C is a high-performance 5 MP IP dome camera engineered for detailed video surveillance in indoor environments. D-Link DCS-F5615-L1C comes With its 5 MP resolution (2592 x 1944), D-Link DCS-F5615-L1C camera captures crisp, vibrant footage, making it ideal for monitoring offices, retail stores, and residential spaces. D-Link DCS-F5615-L1C has Wide Dynamic Range (WDR) technology ensures balanced image quality in high-contrast lighting, while infrared night vision up to 20 meters enables reliable round-the-clock monitoring.

​D-Link’s Indigenous Series is a range of surveillance solutions designed and manufactured in India, aligning with the government’s ‘Make in India’ initiative. This series includes a variety of IP-based cameras and Network Video Recorders (NVRs) tailored to meet the security needs of Indian consumers.

DCS-F5615-L1C is Equipped with a built-in microphone, this camera records high-quality audio alongside video for comprehensive security coverage. Compact and discreet, the DCS-F5615-L1C blends seamlessly into its surroundings, while advanced compression formats like H.265 optimize bandwidth and storage usage.

1/2.9″ Progressive scan CMOS Sensor

Key Features:

• 2.8mm Fixed lens
• Up to 2592 x 1944 Full HD resolution
• White light distance up to 30 Mtr
• DWDR, Day/Night (ICR), 3DNR, AWB, AGC, BLC
• Support smart functions
• Support dual stream

1. 5 MP High-Resolution Video: Captures sharp, detailed footage.
2. Infrared Night Vision: Ensures visibility up to 20 meters in darkness.
3. Audio Monitoring: Built-in microphone for enhanced security.
4. Wide Dynamic Range (WDR): Balances exposure in complex lighting conditions.
5. Compact Dome Design: Discreet and suitable for indoor installations.
6. H.265 Compression: Reduces storage and bandwidth needs while maintaining quality.

Camera Specifications

Category	Details
Image Sensor	1/3″ 5MP Progressive CMOS Sensor
Effective Pixels	2592(H) x 1944(V)
Minimum Illumination	Color: 0.001 Lux @F1.2
S/N Ratio	>60dB
White Light Distance	Up to 30 meters
Shutter Speed	Auto, Manual Mode: 1/50 sec to 1/10000 sec
DWDR	Yes
IR On/Off Control	Auto/Manual
LEDs	2pcs White LED

---

Lens Specifications

Category	Details
Lens Type	Fixed
Mount Type	M12
Focal Length	2.8mm
Max. Aperture	F1.2
Angle of View	Horizontal: 102.5°; Vertical: 55.2°; Diagonal: 122°
Focus Control	Fixed

---

Video Specifications

Category	Details
Compression	H.264 / H.265
Streaming Capability	2 Streams
Resolution	5MP (2592×1944), 4MP (2560×1440), 1080P (1920×1080), 720P (1280×720), D1 (704×576), VGA (640×480), CIF (352×288)
Streams	Mainstream: 5MP (2592×1944) @20FPS, 4MP (2560×1440)/2MP (1920×1080) @25/30FPS; Sub Stream: D1/VGA/CIF @25/30FPS
Frame Rate	5MP @25/30fps
Bit Rate Control	CBR/VBR
Bit Rate Range	221Kbps ~ 8Mbps

---

Image Settings

Category	Details
Day/Night	Automatic/Black and White
Exposure Mode	Automatic/Manual (1-1/10000)
BLC Mode	On/Off
Profiles	Auto, Low Light Priority, High Light Priority
Noise Filter	Auto, 2D (1-5 Levels)
Noise Reduction	Auto, 2D (1-5 Levels)
I-Frame Interval	1 to 20
Digital Zoom	16X, Area selection with Mouse
Anti-Flicker	On/Off
White Balance	Yes
AE Reference	1-255 Level
AE Sensitivity	1-10 Level
Flip	Off/On
Mirror	Off/On
Text Overlay	Title, Date & Time, Weekday
Privacy Masking	4 Private Masking Options

---

Event Management

Category	Details
Motion Detection	Yes
Video Blind	Supported
Smart Functions	Human Detection, Line Crossing, Area Intrusion
Event Actions	Record alarm, Linkage alarm output, Sound alarm, Email link, Upload FTP, Snapshot

---

Pan/Tilt Range

Category	Details
Pan/Tilt Range	Pan: 0° ~360°; Tilt: 0° ~90°; Rotation: 0° ~360°

---

Network & Audio

Category	Details
ONVIF Authentication	On/Off
RTSP Authentication	Digest, None
Audio Compression	G.711A/U
Ethernet	1 x RJ45, 10/100M adaptive Ethernet interface
Protocols	IPv4, TCP/IP, HTTP, HTTPS, UDP, RTSP, FTP, DHCP, DDNS, NTP, SMTP, UPnP, Alarm Server, IP filter
Interoperability	ONVIF Profile S
Max. User Access	30 Users
Edge Storage	Local PC for instant recording, One-click Snapshot, One-click Triple Snapshot
Web Viewer	IE, Chrome, Firefox, Safari
Management Software	VMS
Smart Phone Support	Supports VMS App for iPhone, Android

---

Physical & Environmental

Category	Details
Operating Conditions	-30°C ~ 60°C (-22°F ~ 140°F); <90% RH
Storage Conditions	-30°C ~ 60°C (-22°F ~ 140°F); <90% RH
Ingress Protection	NA
Vandalism Protection	NA
Power Rating	DC 12V / 1Amp, PoE
Power Consumption	Max 12W
Dimensions	105 x 105 x 90mm
Weight	225g
