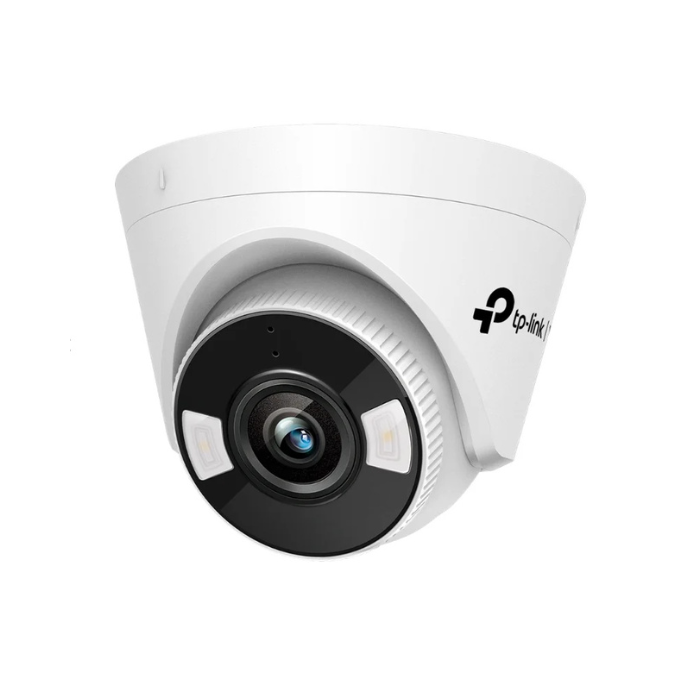

Tp-link VIGI C430 4mm 3MP Full-Color Turret Network IP CAMERA

The Tp-link VIGI C430 4mm 3MP camera offers high-definition, 24/7 color video, human/vehicle classification, and audio recording within 15 feet. Features include smart detection, H.265+ compression, video enhancement (Smart IR, WDR, 3D DNR, Night Vision), and PoE/12V DC for easy setup. Manage via web UI, NVR UI, VIGI app, or VIGI Security Manager.

The Tp-link VIGI C430 4mm 3MP camera delivers super-high-definition video with 24/7 full-color capture, a built-in microphone for audio within 15 feet, and human/vehicle classification for precise alerts. It features smart detection, H.265+ compression to save bandwidth and storage, and advanced video enhancement (Smart IR, WDR, 3D DNR, Night Vision). IP67 waterproof, it supports PoE/12V DC for easy setup and offers flexible management through web UI, NVR UI, VIGI app, or VIGI Security Manager.

• 3MP Super-High Definition: The camera comes with 3MP–more than enough pixels to pick up some of the more discrete details.
• 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
• Human & Vehicle Classification: Tp-link VIGI C430 Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
• Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, obstructs the camera, or removes/abandons objects.
• Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera.
• H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
• Smart Video Enhancement: VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
• PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
• Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.

CAMERA
Image Sensor	1/2.8” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Aperture	2.8 mm: F1.6 4 mm: F1.6
Lens	2.8 mm/ 4 mm
Lens Mount	M12
Minimum Illumination	Color: 0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
Digital Noise Reduction	3D DNR
WDR	DWDR
IR Working Distance	30m
Viewing Angle	2.8mm: 107.5°/57.2°/128.7°(H/V/D) 4mm: 89.1°/45.1°/106.9°(H/V/D)

LENS
Type	Fixed Focal Lens
Focal Length	2.8/4 mm
Aperture	2.8 mm: F1.6 4 mm: F1.6
FOV	2.8mm: Horizontal FOV: 107.5°, Vertical FOV: 57.2°, Diagonal FOV: 128.7° 4mm: Horizontal FOV: 89.1°, Vertical FOV: 45.1°, Diagonal FOV: 106.9°
Lens Mount	M12
DORI Distance	2.8 mm Detect: 52 m (170 ft) Observe: 22 m (71 ft) Recognize: 10 m (34 ft) Identify: 5 m (17 ft) 4 mm Detect: 70 m (230 ft) Observe: 29 m (96 ft) Recognize: 14 m (46 ft) Identify: 7 m (23 ft)

Angle Adjustment (Manual)
Range	Pan: 0° to 360° Tilt: 0° to 85° Rotate: 0° to 360°

ILLUMINATOR
IR LED	Quantity: 2 Range: 30m Wavelength: 850nm
White LED	Quantity: 2 Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off

VIDEO
Max. Resolution	2304 × 1296
Main Stream	Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Resolution: 2304×1296, 2048×1280, 1920×1080, 1280×720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Resolution: 704×576, 640×480, 352×288, 320×240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps

Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	WDR
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes

AUDIO
Audio Communication	N/A
Audio Input	Yes
Audio Output	N/A
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)

NETWORK
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF	Yes
API	ONVIF
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser	Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT
Smart Event	Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage	White Light Flashing, Message Push
Linkage Method	N/A
Output Notification	Message Push

INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm	N/A
Reset Button	N/A
Power	DC Power Port
Button	–
Video Output	–
On-board Storage	N/A
Built-in Microphone	Yes
Built-in Speaker	N/A
Audio	N/A

GENERAL
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Package Contents	VIGI Network Camera Quick Start Guide Mounting Accessories
Dimensions( H X W X D )	123 × 123 × 83 mm
Material	Plastic
General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight	0.21 Kg
Gross Weight	0.36 Kg
Power Consumption	12V DC: Max 4.2W PoE: Class 0
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)
Protection	N/A
Product Dimensions (L x W x H)	123× 83× 123 mm
Certifications	CE/BSMI/VCCI/ONVIF

VIDEO/IMAGE
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
Frame Rate & Resolutions	Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2304×1296, 2048×1280, 1920×1080, 1280×720 Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704×576, 640×480, 352×288, 320×240
Max. Resolution	3MP (2304 × 1296)
Video Streaming	Main Stream Sub-Stream
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Video Bit Rate	64 Kbps to 4 Mbps
Day/Night Switch	Day/Night/Auto/Schedule

SMART FEATURE-SET
Smart Event	Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event	Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage Method	Trigger Notification: ONVIF, HTTPS
Region of Interest	1 Region

WARRANTY & MANUFACTURER DETAILS

Country of Origin	China
Manufacturer Details	TP-Link Corporation Limited, Kowloon, Hong Kong
Importer Details	TP-Link India Private Limited, Palghar, Vasai, 401208
Packer Details	TP-Link India Private Limited, Palghar, Vasai, 401208
