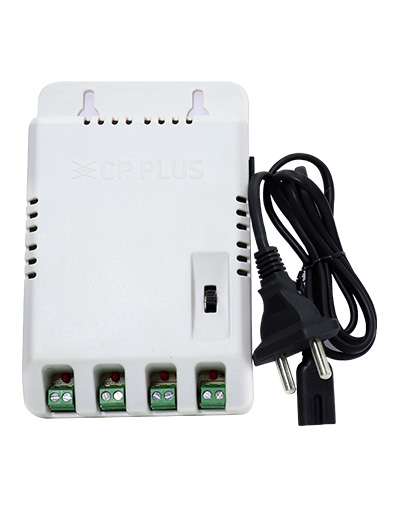

CP PLUS CP-LPS-PD04-12D 4 Channel Eco Power Supply – 12V DC Output, CCTV Camera Power Distribution Box, Energy Efficient, Short-Circuit Protection

Name: CP PLUS CP-LPS-PD04-12D 4 Channel Eco Power Supply – 12V DC Output, CCTV Camera Power Distribution Box, Energy Efficient, Short-Circuit Protection
Brand: TechPotli
SKU: 23761
Price: 650 INR
Availability: InStock
Rating: 5 (1 reviews)

Original price was: ₹950.00.Current price is: ₹650.00.

Input Voltage: 150V – 240V AC
Output Voltage: 12V DC (adjustable up to 15V)
Output Type: Terminal Block
Output Current: 1A max per channel
Rated Power: 48W
Ripple & Noise: <200mV
Efficiency: 70%
Protections:
- Short Circuit (Auto Recovery)
- Overload
- Overvoltage
- Overcurrent
Standards: EMC/EMI compliant
Startup Time: ≤30ms
Hold Time: ≤30ms @ full load
Temperature Range:
- Working: -10°C to +45°C
- Storage: -40°C to +70°C
Humidity: 5% to 95% (non-condensing)
Dimensions: 154.7mm x 97.38mm x 32.90mm
Weight: 219.1 g
Material: ABS plastic
Included: Power Cord
Region: For India market only

DATASHEET

Compare

Description
Reviews (0)

CP PLUS CP-LPS-PD04-12D CCTV Power Supply – 4 Channel 12V DC Output, Short-Circuit Protection, Eco Design

The CP PLUS CP-LPS-PD04-12D CCTV Power Supply is a reliable and energy-efficient solution for powering up to four CCTV cameras. With a 12V DC output and 1A current per channel, this unit ensures stable power distribution across connected devices.

Built with ABS plastic for fire resistance and durability, the unit includes essential protections like short-circuit, overload, overvoltage, and overcurrent protection. It also meets EMC/EMI standards, ensuring safer use in sensitive surveillance environments.

An LED power indicator helps you quickly check operational status, while a built-in power cord simplifies installation. Designed specifically for the Indian market, this power supply is ideal for small to medium CCTV setups in homes, shops, and offices.

Input voltage	150V~240V AC
Output Connector	Terminal Block Type
Output voltage	12V DC
Current Range	0-1A Each Channel
Voltage Adj. Range	12V DC – 15V DC
Rated Power	48W
Ripple & Noise (max.)	<200mV
Line Regulation	<3% at 150VAC-240VAC
Voltage Tolerance	10%
Hold Up Time (Typ.)	30ms max @ full load & 230Vac input turn of
Setup Rise time	30mS max @ rated load, output voltage from 10% to 90%.
start time	30mS max @ rated load, output voltage from 10% to 90%.
Load Regulation	<10% at 150Vac-240Vac
Linear modulate	SMPS (SMPS (Switch mode power supply)
Temperature coefficient	Max 75 degree
AC Current (Typ.)	1.2A Max @ max 100-240Vac input & full load
Efficiency (Typ.)	70%
Frequency Range	50Hz-60Hz. Normal
Leakage Current	0.008 A Max.
guard time	MAX 2Sec@ 150-240VAC at input & full load
override protection	Supported
Inrush Current (Typ.)	50A max @ 240 Vac input & full load
overvoltage protection	Supported
short-circuit protection	Supported (AUTO RECOVERY)
Over Load	Supported
Over Current	Supported
Isolation Resistance	50MΩ min at primary to secondary add 500Vdc test voltage
Withstand Voltage	Input (100 – 240)Vac/ Output (12 -15)Vdc
Working temperature	-10°C to +45°C
Store temperature	-40°C to +70°C
Working Humidity	5% to 95%
Dimension	154.7mm x 97.38mm x 32.90mm
Body Type	Plastics ABS
Weight	219.1gm
