CP PLUS CP-DPS-PD04V3-12D 4 Channel Power Supply

CP PLUS CP-DPS-PD04V3-12D 4 Channel Power Supply – 12V DC Output, CCTV Camera Power Distribution Box, Metal Enclosure, Overload & Short-Circuit Protection

Name: CP PLUS CP-DPS-PD04V3-12D 4 Channel Power Supply – 12V DC Output, CCTV Camera Power Distribution Box, Metal Enclosure, Overload & Short-Circui ...
Brand: TechPotli
SKU: 23721
Price: 599 INR
Availability: InStock
Rating: 5 (1 reviews)

Original price was: ₹999.00.Current price is: ₹599.00.

Model: CP-DPS-PD04V3-12D
4 Channel CCTV Power Supply
Output: 12V DC | Up to 3.0A | Rated Power: 36W
Input Voltage: 200–240VAC | Frequency: 47–63Hz
Power Cord: 2 Pin (L & N)
Short-Circuit, Over-Voltage & Over-Current Protection
Cable Compensation Switch (3 Modes: Normal, Long, Extra Long)
Built-in EMI Filter to reduce electrical interference
LED Power-On Indicator
Fully enclosed metal body with safety-covered terminals
Wall mount and desktop compatible
Dielectric Strength: 3.0KV | Insulation Resistance: 100MΩ
Dimensions: 132.7mm x 77.7mm x 33.2mm
Weight: 0.144kg (without cord & box)
Operating Temp: -10°C to +45°C | Humidity: 20%–90% RH

Compare

Description
Reviews (0)

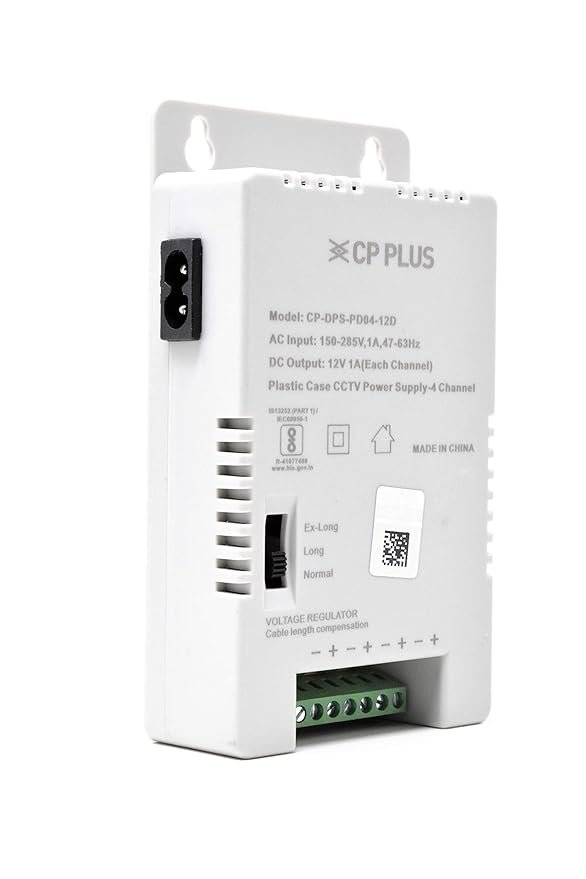

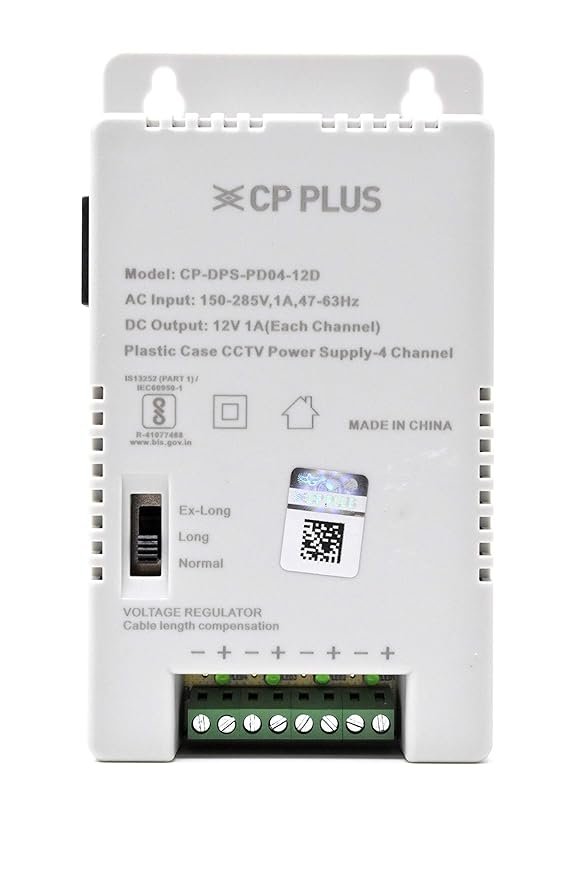

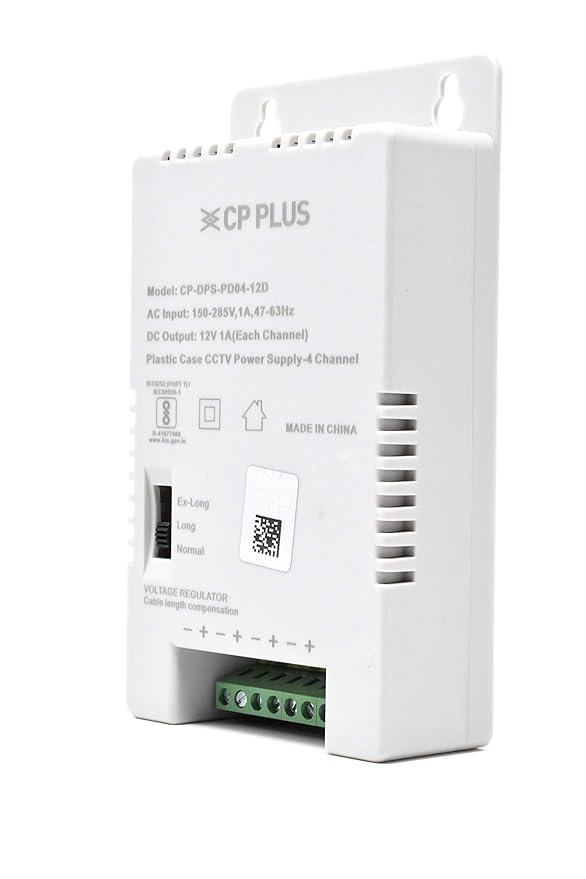

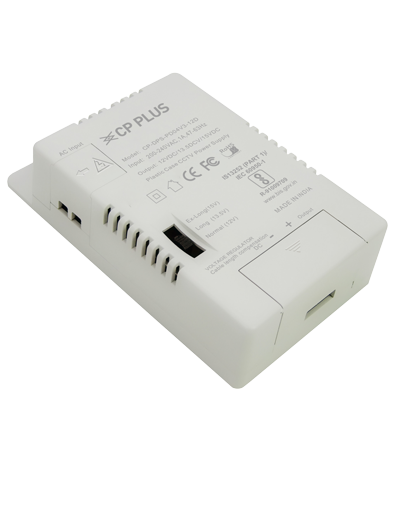

CP PLUS CP-DPS-PD04V3-12D – 4 Channel CCTV Power Supply (12V DC)

The CP PLUS CP-DPS-PD04V3-12D CCTV Power Supply is a compact and efficient 4-channel unit. It provides a reliable 12V DC output for CCTV systems. Housed in a durable metal enclosure, it delivers up to 36W of power. The unit includes protection against overload, over-voltage, and short circuits to safeguard your security setup. It features a built-in EMI filter and a cable compensation switch with 3 selectable modes. An LED power indicator ensures easy monitoring. This power supply is suitable for both wall-mount and desktop installation.

Input voltage	200 ~ 240VAC
Input AC Frequency Range	47 ~ 63Hz
Input Current (Typ.)	0.5A/230VAC
Power Cord	2 Pin (L & N)
Standby Power Consumption	≤0.5W
Inrush Current (Typ.)	≤40A@230VAC
Efficiency (Typ.)	85%
Output voltage	12V in Normal Mode
Output Current	3.0A in Normal Mode
Output Current range	0 ~ 3.0A in Normal Mode
Rated Power	36W in Normal Mode
Ripple & Noise (max.)	≤240mV
Line Regulation	2%
Load Regulation	3%
Power On Indicator	Support
Cable Compensation Switch	Support, 3 Modes (Normal, Long, Ex. Long)
No. of Output Ports	Single Port
short-circuit protection	Support
Dielectric Strength (Hi-pot)	3.0KV
Insulation Resistance	100MΩ@500VDC
Surge Immunity	1.0KV
Operating Temperature	-10 ~ +45°C
Operating Humidity	20 ~ 90% RH Non-condensing
Storage Temperature	-10 ~ +45°C
Storage Humidity	10 ~ 95% RH
Dimension	132.7mm x 77.7mm x 33.2mm
Weight	0.144kg without Power Cord and Packing Box
