16ft Prime Focus Aluminum C-Band dish 16 Trust 32 Single Ribs (48 Ribs)

The 16ft Prime Focus Aluminum C-Band dish is a high-gain, large-aperture satellite antenna designed for professional C-Band applications. Its robust design and advanced features ensure reliable and high-quality signal reception.

Key Features:

1. Antenna Size: 16 ft. (480 cm) diameter, providing high gain and directivity.

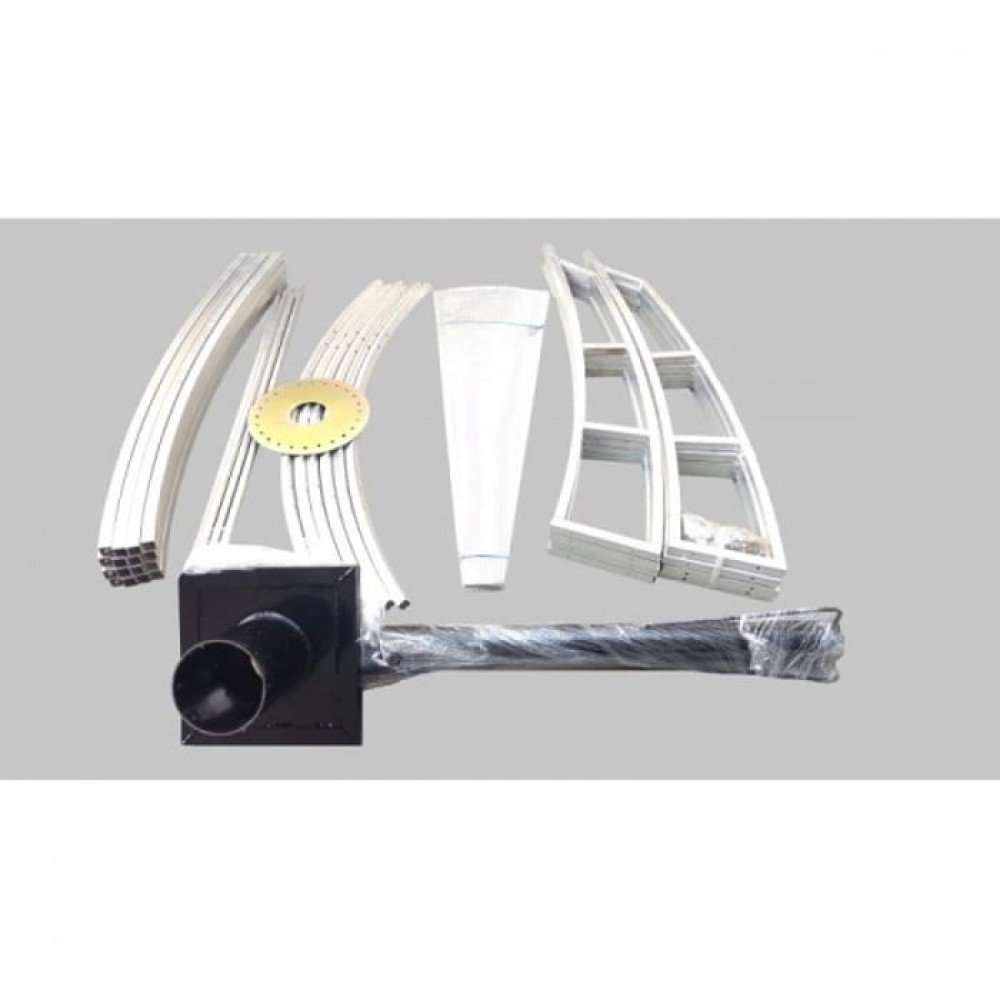

2. Antenna Type: Folding, prime focus design with 48 ribs (32 single and 16 truss).

3. Reflector Material: Metal, ensuring high reflectivity and durability.

4. Mount: AZ/EL (azimuth/elevation) mount, allowing for 360° azimuth rotation and 0-90° elevation adjustment.

5. Wind Load: Operational wind speed up to 95 km/h (59 mph), survival wind speed up to 105 km/h (65 mph).

6. Polarization: Linear and circular polarization support.

7. Pointing Accuracy: Better than ±0.2°, ensuring precise satellite alignment.

8. Operating Frequency: 10-13 GHz (C-Band).

9. Gain: 51.6 dB (not 34.6 dB as mentioned), providing high signal strength and quality.

Ideal for:

1. Professional C-Band satellite installations

2. Large-scale satellite TV distributions

3. Telecommunications and internet service providers

4. Research and development institutions

5. Maritime and military communications

Benefits:

1. High-gain signal reception

2. Precise satellite tracking and alignment

3. Robust design and durable materials

4. Support for linear and circular polarization

5. Wide operating frequency range

Antenna Size – 16Ft. / 480cm

Antenna Type – Folding

Feed – Prime Focus

Truss – 16 Truss

Single Ribs – 32 Ribs

Total Ribs – 48 Ribs

Penal – Aluminum Sheet

Mount – AZ / EL

Stability – AZ 360 Degree EL to 90 Degrees

Reflector Material – Metal

Wind load operational – 95 Kmph

Survival Wind Speed – 105 Kmph

Polarization – Liner & Circular

Pointing Accuracy – Better Than + / – 0.2 Deg.

Operating Frequency – 10 GHz. – 13 GHz.

Pointing – Manual

Gain – 34.6 db
