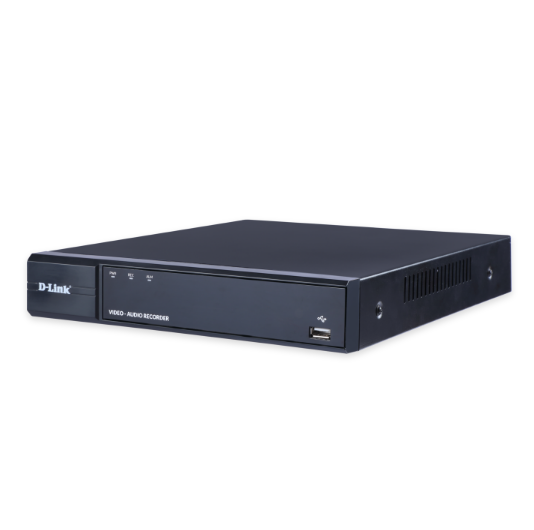

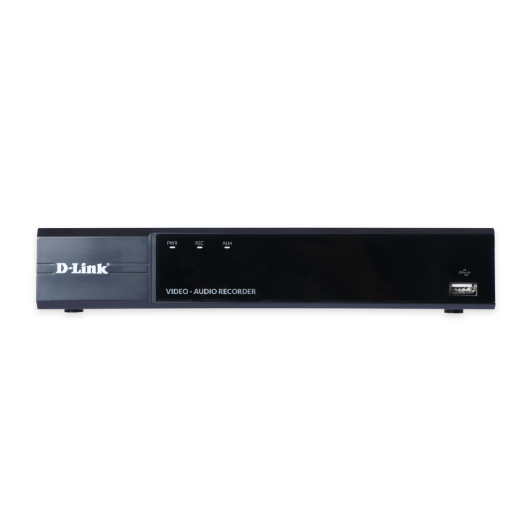

D-Link DNR-F5216-M8 | 16-Channel 4K Network Video Recorder (NVR) | H.265/H.264, 2 SATA Ports, Remote Monitoring & Backup, Gigabit Ethernet
The D-Link DNR-F5216-M8 16-Channel 4K Network Video Recorder (NVR) offers high-resolution surveillance, smart playback, and advanced video analytics. With H.265/H.264 compression, dual SATA ports (up to 20TB HDD support), and Gigabit Ethernet, it’s perfect for homes, businesses, and enterprise security
The D-Link DNR-F5216-M8 is a powerful 16-Channel 4K Network Video Recorder (NVR) designed for comprehensive security monitoring. D-Link DNR-F5216-M8 It supports up to 16 IP cameras, delivering sharp and detailed 4K video recording for enhanced surveillance.
D-Link’s Indigenous Series is a range of surveillance solutions designed and manufactured in India, aligning with the government’s ‘Make in India’ initiative. This series includes a variety of IP-based cameras and Network Video Recorders (NVRs) tailored to meet the security needs of Indian consumers.
D-Link DNR-F5216-M8 comes with H.265/H.264 compression, this NVR maximizes storage efficiency while maintaining superior video quality. The dual SATA ports allow storage expansion up to 20TB, ensuring long-term video retention.
D-Link DNR-F5216-M8 is equipped with Smart Video Analytics, users benefit from motion detection, tampering alerts, and intelligent playback features. The Gigabit Ethernet port ensures seamless network connectivity, and the Embedded Linux OS provides a stable and secure user experience.
D-Link DNR-F5216-M8 comes with remote monitoring and backup capabilities, users can access and manage their surveillance system anytime, anywhere. Ideal for homes, businesses, retail stores, and enterprise setups, the DNR-F5216-M8 delivers efficient, scalable, and high-quality video recording for advanced security needs.
Key Features:
✔ 16-Channel 4K NVR – Supports up to 16 IP cameras for crystal-clear ultra-HD recording.
✔ H.265/H.264 Video Compression – Optimizes bandwidth and storage without quality loss.
✔ 2 x SATA Ports (Supports up to 20TB HDD) – Ample storage for long-term video retention.
✔ Smart Playback & Video Analytics – Motion detection, tampering alerts, and intelligent surveillance insights.
✔ Embedded Linux OS – Stable, secure, and user-friendly system operation.
✔ 1 x Gigabit Ethernet Port – High-speed data transfer for smooth video streaming.
✔ Remote Monitoring & Backup – Access live and recorded footage from anywhere via mobile and web apps.
✔ Scalable Surveillance Solution – Ideal for homes, offices, retail, and enterprise security systems.
| Model Name/Number | DNR-F5216-M8 |
| Resolution | 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF /QCIF |
| Bit Rate | 64Kbps~10Mbps |
| Backup Mode | USB Device/Network |
| Audio Output | 1-ch, RCA |
| Monitor Hdmi Connector | 1ch, resolution:4K(3840×2160)/30Hz,1920×1080/60Hz,1440×900/60Hz,1280 x1024/60Hz, 1280×720/60Hz, 1024 |
| Compression | Yes |
| Brand | D Link |
| IP Video Input | 16ch |
| Two Way Talk | 1-ch, RCA |
| VGA | 1ch, resolution:1920×1080/60Hz,1440×900/60Hz,1280 x1024/60Hz, 1280×720/60Hz,1024×768/60Hz |
| Playback Mode | Smart/ Normal/ Time Division/ Label/ Event/ Picture/ Log Playback |
| Decoding Capability | 4CH@1080P(25fps) |
| Advanced Features | |
| Smart Detection | Line crossing, Area Intrusion, Fast moving, Unattached Object, Object Missing |
| Smart Playback | Line Crossing/Area Intrusion /Motion Detection |
| Cloud Storage | Support |
| Cloud Upgrade | Support |
| Network | |
| Incoming Bandwidth | 160Mbps |
| Outgoing Bandwidth | 256Mbps |
| Ethernet | 1 RJ-45 10 /100/1000 Mbps self-adaptive Ethernet interface |
| Network Compatibility | HTTP, HTTPS, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, IP Filter, DDNS, FTP, P2P, ONVIF 2.6 |
| Smart Phone | IOS (iPhone, iPad), Android (Phone, Pad) |
| Hard Disk | |
| SATA | 2 SATA interface |
| Capacity | Up to 8TB capacity for each HDD |
| External Interface | |
| USB Interface | Front panel: 1 × USB 2.0 Rear panel: 1 × USB 2.0 |
| Alarm In | 8CH |
| Alarm Out | 1CH |
| General | |
| Power Supply | DC12V 3.3A |
| Power Consumption | ≤10W (without HDD) |
| Working Environment | -10°C~+55°C / 10%~90%RH |
| Dimension (W×D×H) | 326*243*52mm |
| Weight | ≤2.3Kg |
| Certification | CE, BIS |
| System Management | |
| Mobile Software | D-Link Smart CCTV App |
| Desktop Software | DSVS (D-Link Smart Video Surveillance) |
| System Requirement for Web Interface | IE |
