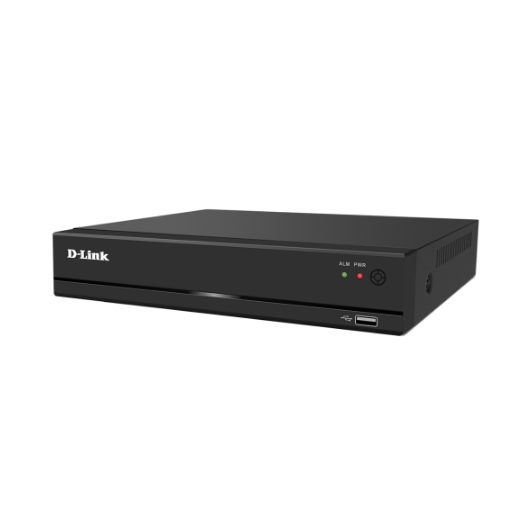

D-Link DVR-F2108-L1H5 | 8-Channel H.265+ 2MP Lite DVR | AHD/TVI/CVI/IP Camera Support | 1 SATA Slot | 3G/4G Wi-Fi | Cloud Storage
The D-Link DVR-F2108-L1H5 8-Channel H.265+ 2MP Lite DVR is a versatile security solution supporting AHD, TVI, CVI, and IP cameras. Featuring tamper & video loss detection, cloud storage, 3G/4G Wi-Fi connectivity, and 1 SATA slot for HDD storage, it’s ideal for home and business surveillance.
The D-Link DVR-F2108-L1H5 is an 8-Channel 2MP Lite DVR designed for cost-effective and reliable surveillance. Supporting multiple camera formats (AHD, TVI, CVI, IP), it provides seamless integration with existing security setups.
D-Link’s Indigenous Series is a range of surveillance solutions designed and manufactured in India, aligning with the government’s ‘Make in India’ initiative. This series includes a variety of IP-based cameras and Network Video Recorders (NVRs) tailored to meet the security needs of Indian consumers.
D-Link DVR-F2108-L1H5 comes with H.265+ compression technology, this DVR optimizes storage efficiency while maintaining high-quality video recording. The single SATA slot allows for HDD installation, ensuring long-term storage for security footage.
D-Link DVR-F2108-L1H5 has security features like tamper detection and video loss alerts help prevent unauthorized access and system disruptions. 3G/4G Wi-Fi connectivity provides flexible deployment options and ensures remote access, while cloud storage support allows for secure off-site backups.
D-Link DVR-F2108-L1H5 is ideal for homes, small businesses, and retail stores, the DVR-F2108-L1H5 offers a reliable and scalable surveillance solution with remote monitoring, smart alerts, and seamless camera integration.
Key Features:
✔ 8-Channel 2MP Lite DVR – Supports AHD, TVI, CVI, and IP cameras for flexible integration.
✔ H.265+ Video Compression – Efficient storage management and reduced bandwidth consumption.
✔ 1 x SATA Slot – Supports HDD storage for extended recording capacity.
✔ Tamper & Video Loss Detection – Advanced security alerts for system integrity.
✔ 3G/4G Wi-Fi Connectivity – Ensures remote access and continuous surveillance.
✔ Cloud Storage Support – Secure backup and easy remote access.
✔ Remote Monitoring – Access live feeds and recorded footage via mobile apps and web interfaces.
| Specification | Details |
|---|---|
| Video & Audio Input | |
| Video Input | 8ch BNC interface (1.0Vp-p, 75 Ω) TVI/CVI/AHD 1080P, 720P IPC up to 8ch, resolution up to 2MP |
| Audio Input | 1-ch RCA (2.0 Vp-p, 1 KΩ) |
| Two-way Talk | 1-ch multiplex with Audio Input (RCA) |
| Video & Audio Output | |
| HDMI | 1ch, resolution: 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| VGA | 1ch, resolution: 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| CVBS Output | NA |
| Audio Output | 1-ch RCA (Linear, 1kΩ) |
| Recording | |
| Compression | H.264/H.264+/H.265/H.265+ |
| Resolution | 8ch 1080P Lite@15fps; 960H1/D1/CIF real-time |
| Frame Rate (fps) | 1fps–15fps |
| Video Bit Rate | 11Kbps–2707Kbps |
| Record Mode | Manual, Schedule, Alarm |
| Audio Compression | G.711a |
| Audio Bit Rate | 64Kbps |
| Playback & Backup | |
| Playback Mode | Normal, Time Division, Label, Event, Picture Playback |
| Playback Rate | 4ch Playback |
| Backup Mode | USB Device, Network |
| Cloud Function | |
| Cloud Storage | Supported |
| Cloud Upgrade | Supported |
| Network | |
| Ethernet | 1x RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Network Function | HTTPs, HTTP, TCP/IP, IPv4, UPnP, Onvif2.6, RTSP, RTCP, UDP, SMTP, IGMP, NTP, DHCP, DNS, DDNS, FTP, P2P |
| Smart Phone | iOS (iPhone, iPad), Android (Phone, Pad) |
| Hard Disk | |
| SATA | 1 HDD |
| Capacity | Up to 6TB capacity for each HDD |
| External Interface | |
| Serial Interface | NA |
| USB Interface | 2x USB 2.0 |
| General | |
| Power Supply | DC12V, 1.5A |
| Power Consumption | ≤15W (without HDD) |
| Working Environment | -10°C to +55°C / 10% to 90% RH |
| Dimensions (W×D×H) | 250mm × 230mm × 45mm |
| Weight (without HDD) | 1.5kg |
| Certification | CE, BIS |
| System Management | |
| Mobile Software | D-Link Smart Plus CCTV App |
| Desktop Software | D-Link Smart Video Surveillance 2.0 |
| System Requirement for Web Interface | IE |
