Fujikura Splicing Machines 48S+ Core Alignment Fusion Splicer

Fujikura Splicing Machines 48S+ Core Alignment Fusion Splicer

Name: Fujikura Splicing Machines 48S+ Core Alignment Fusion Splicer
Brand: TechPotli
SKU: FUJIKURA48S+
Price: 168000 INR
Availability: InStock
Rating: 5 (1 reviews)

Original price was: ₹195,000.00.Current price is: ₹168,000.00.

Core Alignment Fusion Splicing Machine
Compatible with SM, MM, DS, NZDS, and BIF fibers
Average Splicing Time: ~6 seconds
Auto Arc Calibration with real-time arc control
Built-in Heater (approx. 15 sec heat time)
Compact, lightweight, field-ready
Touchscreen Color Display (4.9″)
Rugged design with drop, dust, and rain protection
Battery supports up to 200 cycles per charge

100 in stock

Compare

Description
Reviews (0)

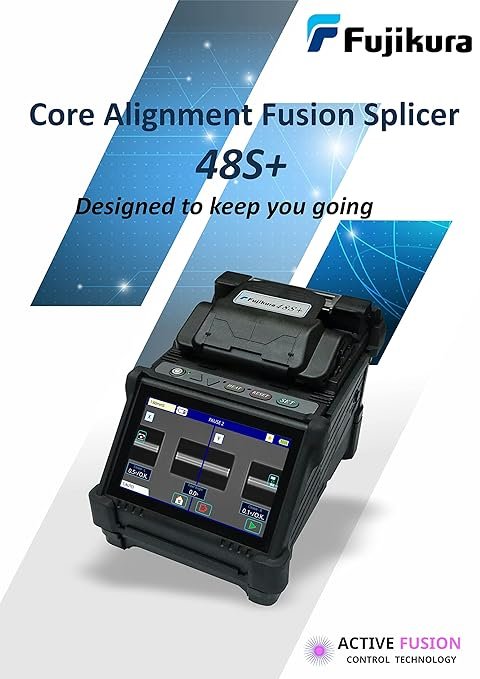

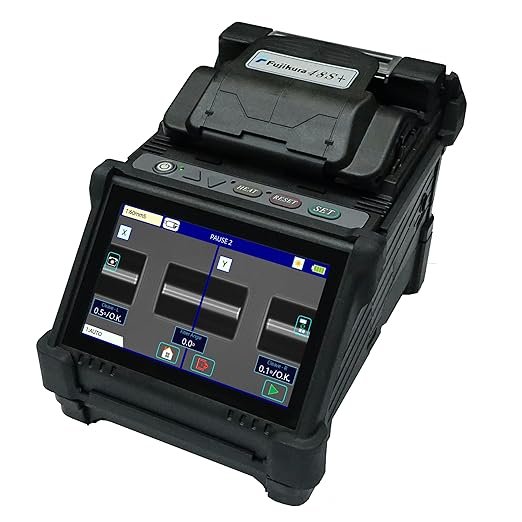

Fujikura Splicing Machines 48S+

Fujikura 48S+ is a high-end fusion splicer designed for FTTx, data center/LAN, and access networks. It has advanced features, including active V-Groove alignment, fast splicing time, and compatibility with various fiber types. It’s compact, durable, and has an easy-to-use interface with a 5-inch color LCD touchscreen.

Features 48s

Core-to-core alignment technology
Fast splicing time of just 6 seconds
Compatible with a range of fiber types, including SMF, MMF, DSF, and NZDSF
Applicable for use with fibers with a cladding diameter of 125μm and up to 3mm sheath diameter with sheath clamp
Splice result in storage of up to 10,000 splices
Short cleave length splicing of 5-16mm
Compact and lightweight design
5-inch color LCD touchscreen display
Durable construction and resistance to dust, shock, and rain

Parameter	Specification
Model	Fujikura 48S+
Splicing Method	Core Alignment
Fiber Compatibility	SM, MM, DS, NZDS, BIF
Splicing Time	~6 seconds
Heating Time	~15 seconds
Display	4.9” Color LCD Touchscreen
Battery Life	Up to 200 splice + heat cycles
Electrode Life	~5000 splices
Data Storage	Internal + USB
Connectivity	USB, Bluetooth
Protection Rating	Dust, Rain & Drop Resistant (IP52 approx.)
Dimensions (Approx.)	Compact & Lightweight (check exact spec)
Country of Origin	Japan
Warranty	1 Year (extendable)
