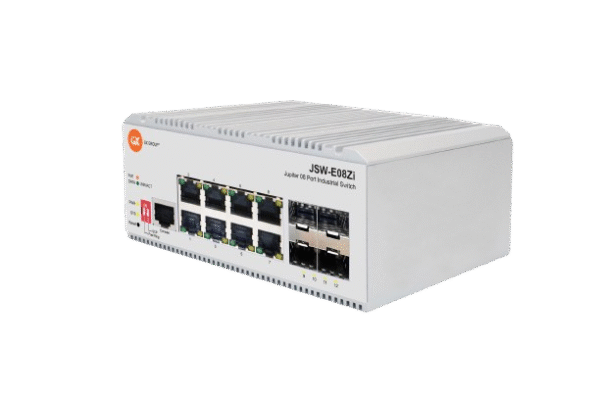

GX Jupiter E08ZI Network switch with 8 ports 10/100/1000 Mbps

GX Jupiter E08ZI Network switch with 8 ports 10/100/1000 Mbps - Image 2

GX Jupiter E08ZI Network switch with 8 ports 10/100/1000 Mbps - Image 3

GX Jupiter E08ZI Network switch with 8 ports 10/100/1000 Mbps

Original price was: ₹65,000.00.Current price is: ₹45,000.00.

JUPITER E08ZI is the latest addition in Our switch portfolio. It has 8*10/100/1000 Mbps, and 4*1G SFP fiber module expansion slots. Jupiter E08ZIV2 supports international standard G.8032 ERPS (Ethernet Ring Protection Switching technology) and POE supports a 180W power budget.

Product Features

8x PoE 1G ports
24 Gbps switch capacity
4x 1G SFP slots

Categories: NETWORKING SWITCHES, SWITCHES Tags: 8 port switch, GX Jupiter E08ZI network switch, GX Jupiter E08ZI switch, GX SWITCH, Jupiter E08ZI 8 port switch, Switch Brand: GX

Description
Reviews (0)

GX Jupiter E08ZI Network switch with 8 ports 10/100/1000 Mbps

General Specification

Dimensions
(L x W x D) 145 x 109 x 62.3 mm

Power supply & consumption
48-57V | 200W | PoE-180W | Per-Port : 30W

Operating temperature -40°C – 75 °C

Storage temperature -40 °C to 80 °C

Relative humidity 5% – 90%, non-condensing

System Specification

SoC Chipset
RTL8382MI

Switch Capacity 24 Gbps

Ports
8x POE Ports | 4x 1G SFP slots | 1x RJ45 console Ports

Packet Forwarding rate
17.6 MPPS

Flash
256 MBit

VLAN
Supports 4k

MAC Table
Supports 8K

Jumbo Frame
9216 Bytes

Ethernet Interface

Protocol
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab,
IEEE 802.3z, IEEE 802.3x, IEEE 802.1p

Number of Ports
8

Interface
MDI/MDI-X

Impedance
100 Ohms

Data Rate
10 Mbps | 100 Mbps | 1000 Mbps

Duplex Mode
Half duplex | Full duplex | Self Negotiated

Max. transmission distance 100 m

L2 Switching Features

PORT CONFIG

Bandwidth Control
Flow Control
EFM OAM(802.3ah)
Storm Control
ULDP/Cisco UDLD

ARP

Static ARP
ARP Scanning Prevention
ARP Spoofing Prevention
ARP Guard
Gratuitous ARP

BASIC MANAGEMENT

Console/Telnet/SSH
Http/Https, SSL/TLS
Software/Hardware watchdog
SNMP(v1/v2c/v3), SNMP Trap
SNTP/NTP

MAC ADDRESS TABLE

MAC Address Size
MAC Aging Time
MAC Filter

Security & Management

REDUNDANCY RELATED FUNCTION

Compatible ERRP
Uplink Protection Protocol
Smart Link/Monitor Link
Uplink State Monitor

802.1x

Port-Based Authentication
Support EAPoR
MAC-based Authentication
Guest VLAN

MAC ADDRESS COUNT LIMIT

Based on Port
Based on VLAN

DENY DOS ATTACK

TCP Flag
TCP Flagment
IP Segment
ICMP

MAB

Based on Port Authentication
Based on MAC Authentication
