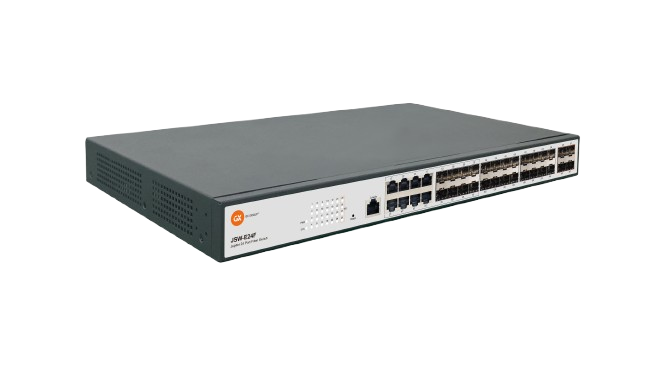

GX Jupiter E24F layer 2+ managed fiber switch 24*1G SFP Ports, 4*10G SFP+ ports and 8*1G(Ethernet/Fiber) Combo Ports.

GX Jupiter E24F layer 2+ managed fiber switch 24*1G SFP Ports, 4*10G SFP+ ports and 8*1G(Ethernet/Fiber) Combo Ports.

Jupiter E24F is the latest layer 2+ managed fiber switch which provides 24*1G SFP Ports, 4*10G SFP+ ports and 8*1G(Ethernet/Fiber) Combo Ports. The switch provides completes security policies, QoS. Policies and rich VLAN functions, easy to manage and maintain, meeting the networking and access requirements of enterprises, communities, hotels office like networks

• 24 ports 1G SFP for a range of services
• 4x 10G SFP+
• 8x 1G Ethernet combo
• 128 Gbps switching capacity

GENRAL SPECIFICATION

Dimensions (L x W x D) 440 x 260 x 44 mm

Ports 24x 1G SFP  | 8x 1G Ethernet Combo |  4x 10G SFP + | 1x console port

Power supply 100V~240V AC; 50/60Hz, 27W (Redundant power supply supported)

Switching Capacity 128 Gbps

Operating temperature  0°C – 50 °C

Storage temperature -20 °C to 70 °C

Operating  humidity 10% – 90%, non-condensing
