Genexis GX PLATINUM EARTH 4010 | XPON ONT Single Band WiFi

GX PLATINUM EARTH 4010 | XPON ONT Single Band WiFi | 1xGE LAN |

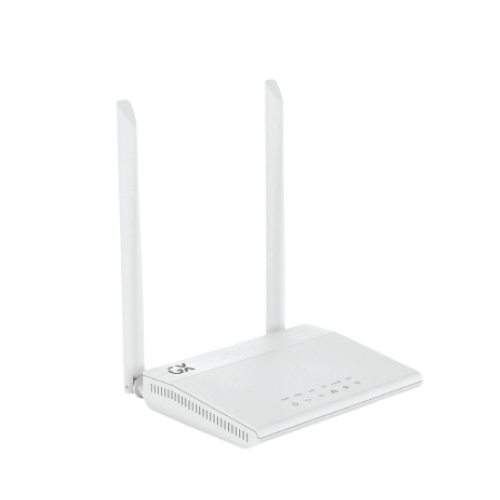

Platinum 4010 is a 1-Port EPON/GPON Home Gateway Unit which adopts next generation chip solution. It’s an incredibly robust device allowing users to access high-speed internet and share it with a Gigabit Ethernet port Product Features Wireless 11N speed up to 300Mbps, ideal for internet surfing and on-line gaming. Pass though T-CONT-GEM port to be in progress and multiple-access BDA and QoS manage. Support downstream 2.5Gbps and upstream to 1.25Gbps. Fiber access and gigabit port provide incredibly fast transfer speeds. TDM inner transmission, support Native TDM type and CES over GEM. General Specifications Dimensions 90mm(L)×73mm(W)×25.2mm(H) Power supply voltage 12 Vdc ± 5%, 0.5A Power consumption upto 2.8 W Operating temperature 0 – 55 °C Storage temperature -40 – 70 °C Interface 1x LAN port 1x GPON port 1x Power connector LAN Interface Compliant with IEEE 802.3 (u & az) Clause 40 (1000 / 100 / 10) Base-T. LED indicators for link and activity Standards Compliance Compliant with ITU-T G.984 (G.984.5 support) Compliant with SFF-8472 Compliant with IEEE 802.3 Ethernet Compliant with ITU-T G.984.2 Amd1, Class B+ Compliant with 802.1 q/p VLANs WiFi Specifications IEEE 802.11 b/g/n, 2.4 GHz Signal rate – 2.4 GHz upto 300 Mbps WEP, WPA / WPA 2 , WPA – PSK / WPA 2 – PSK encryption HGU Remote WAN Management PPPoE DHCP Static IP Factory restore Protocol port 80 enable/disable
