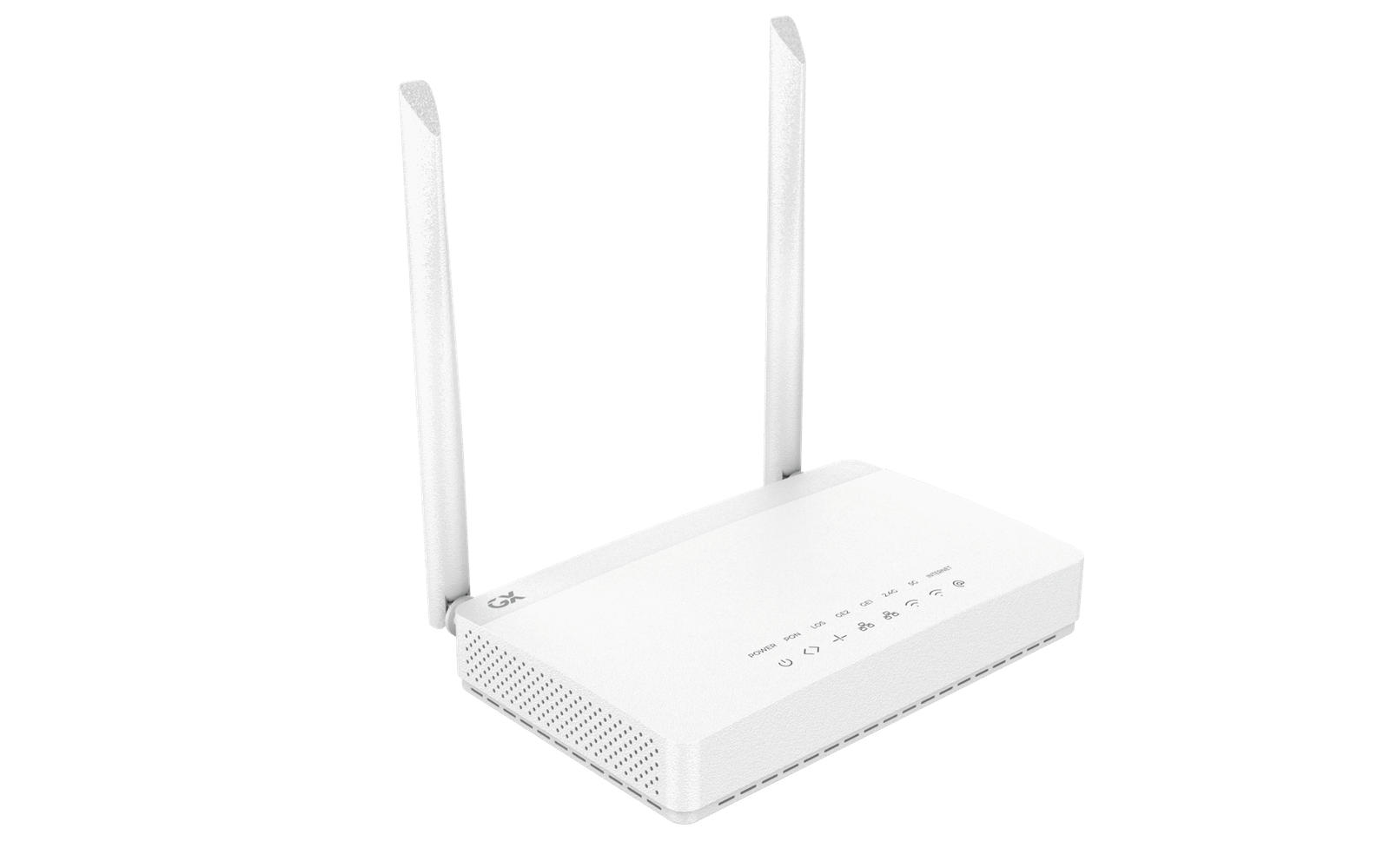

Genexis GX Titanium E20 XPON ONT Home gateway unit with Dualband Wi-Fi support | (Earth 2022)

GX Titanium E20 Home gateway unit with Dualband Wi-Fi support | (Earth 2022)

Titanium E20 is our one of the latest WiFi Home Gateway unit which supports speeds upto 1200 Mbps. Its a new gateway with Fiber compatible speeds for best experience at homes. Product Features Advanced 2×2 11n and 2×2 11ac WiFi GPON HGU 1200 Mbps wireless connectivity Supports 802.11N 2T2R speed up to 300 Mbps Supports 802.11AC 2T2R speed up to 867 Mbps Fiber port with 1.244/2.488 Gbps link speed 2x GE ports General Specifications Dimensions 135mm(L)×110mm(W)×28mm(H) Weight < 500 g Power supply voltage 12 Vdc ± 5%, 1.5A Power consumption typ. 12.5W Operating temperature 0 – 50 °C Storage temperature 0 – 70 °C Interface 2x Gigabit Ethernet (GE) 1x GPON port 1x Power connector Standards Compliance Compliant with ITU-T G.984 (G.984.5 support) Compliant with SFF-8472 Compliant with IEEE 802.3 Ethernet Compliant with ITU-T G.984.2 Amd1, Class B+ Compliant with 802.1 q/p VLANs LAN Interface Compliant with IEEE 802.3 (u & az) Clause 40 (1000/100/10BASE-T) LED indicators for link & activity WiFi Specifications 802.11n Throughput > 140Mbps at 40MHz bandwidth Compliant with IEEE 802.11n, 2.4GHz, 20/40MHz bandwidth Receiving sensitivity -68dBm 802.11AC Throughput > 550 Mbps EVM (11ac MCS9) : < -32dB HGU Remote WAN Management PPPoE DHCP Static IP Factory restore Protocol port 80 enable/disable

PRODUCT FEATURE

• Advanced 2×2 11n and 2×2 11ac WiFi GPON HGU
• 1200 Mbps wireless connectivity
• Supports 802.11N 2T2R speed up to 300 Mbps
• Supports 802.11AC 2T2R speed up to 867 Mbps
• Fiber port with 1.244/2.488 Gbps link speed
• 2x GE ports
