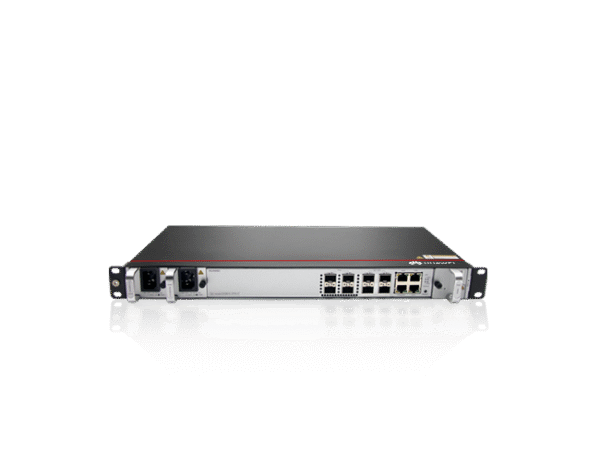

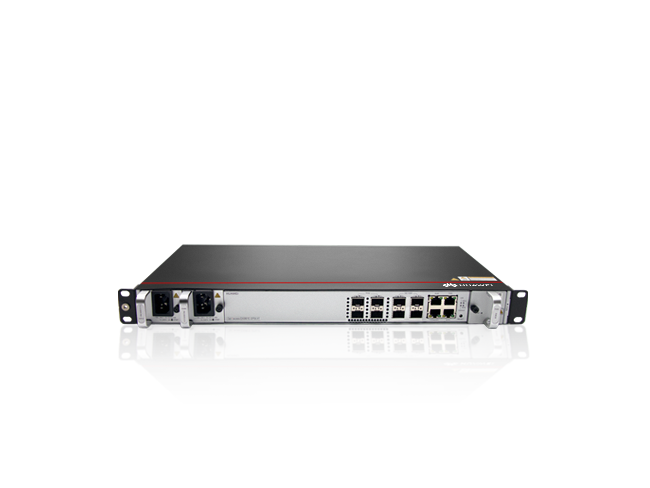

Huawei 4 Port GPON OLT L3 DUAL POWER SUPPLY UNLOADED (EA5801E-GP04)

Name: Huawei 4 Port GPON OLT L3 DUAL POWER SUPPLY UNLOADED (EA5801E-GP04)
Brand: TechPotli
SKU: 24465
Price: 67000 INR
Availability: InStock
Rating: 5 (1 reviews)

Original price was: ₹89,000.00.Current price is: ₹67,000.00.

Huawei OptiXaccess EA5801E-GP04 provides GPON access, and supports FTTH,FTTO and FTTM solutions. It carries all services over one fiber network, simplifying network architecture and reducing OPEX.

Lightweight and small size

The lightweight OLT weighs less than 5 kg and occupies 1 U installation space. It can be flexibly adapted to various scenarios

Dual power supplies, high reliability

Supports dual AC power supplies, providing high reliability

Easy installation and flexible deployment

The matching small outdoor cabinet can be installed on a pole, tower, or wall, facilitating installation and reducing engineering costs

Compare

Description
Reviews (0)

Specifications

Parameters	Huawei OptiXaccess EA5801E-GP04
Dimensions (W x D x H) (mm)	Excluding mounting ears: 442 x 220 x 43.6 Including IEC mounting ears: 482.6 x 220 x 43.6 Including ETSI mounting ears: 535 x 220 x 43.6
Maximum fully-loaded weight (DC)	5kg
Power supply mode	AC power supply (dual backup)
Working voltage range	AC power supply: 100–240 V
Rated voltage	AC power supply: 110 V/220 V
Maximum input current	AC power supply: 2.5 A
Ambient temperature	–40°C to +65°C The device can start up at a lowest temperature of –25°C.NOTE The +65°C temperature refers to the highest temperature measured at the air intake vent of a service subrack.
Ambient humidity	5%–95% RH
Atmospheric pressure	70–106 kPa
Altitude	< 4000 m. The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the device varies with the altitude.
System switching capacity	95 Gbit/s
MAC addresses	32768
Access ONT	256
IPv4 routing table	8192
IPv6 routing table	4096
ARP table	16384
Bit error rate (BER) in full load	A BER smaller than 10 e-10 for a port that transmits data in full load
10GE/GE upstream ports	4
Service ports	4 GPON
Power consumption	AC power supply: • Static Power Consumption: 47 W • Typical Power Consumption: 58 W • Maximum Power Consumption: 100 WNOTE The power consumption of a product is tested in the following conditions: • Static power consumption: 25°C, no optical module in optical ports, and no service. • Typical power consumption: 25°C, 4 x 10GE(10kM) upstream ports, 4 x GPON(CLASS C+) ports on the user side, full services, and maximum traffic. • Maximum power consumption: 65°C, 4 x 10GE(10kM) upstream ports, 4 x GPON(CLASS C+) ports on the user side, full services, and maximum traffic.
