INNO OTDR VIEW600 – Modular Fiber Testing Solution
Original price was: ₹124,000.00.₹111,000.00Current price is: ₹111,000.00.
Available on backorder
CompareThe INNO OTDR VIEW600 Modular OTDR with capabilities changing depending on the module chosen

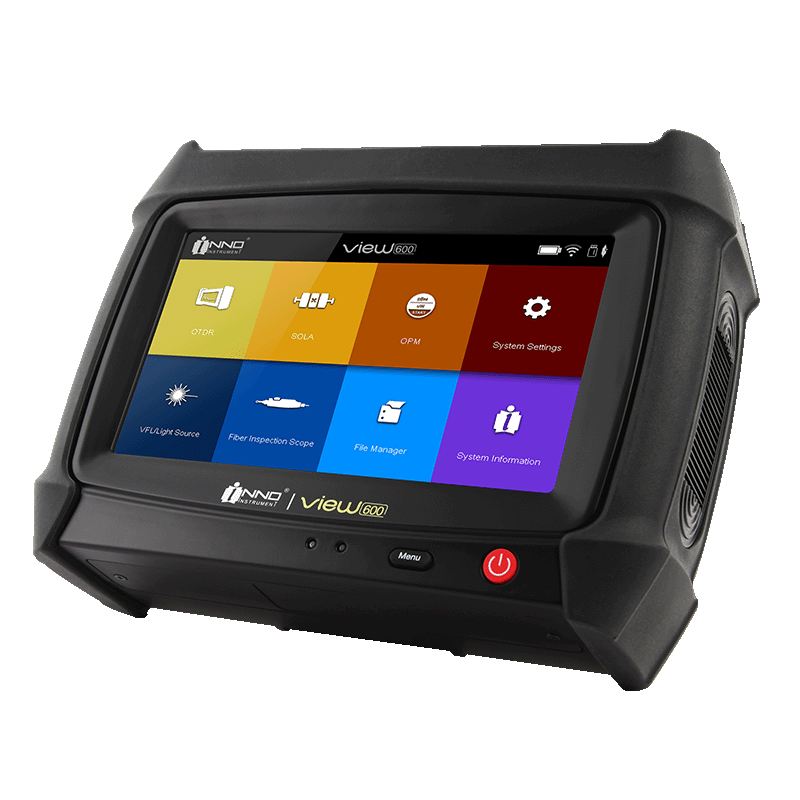

INNO Instrument proudly introduces VIEW600, a truly modular OTDR with 13 applicable modules, supporting last-mile, access network, FTTX/PON, metro networks. VIEW600 boasts qualified CPU, fast response time, capacitive touch screen, user-friendly GUI, and above all, accurate test result. We guarantee that you can seamlessly test your networks with this changeable smart gear.
Specification Overview
Explore the superior specifications of our product, designed with cutting-edge technology to deliver unmatched performance. Each feature is crafted to ensure reliability, efficiency, and user satisfaction, enhancing your experience in remarkable ways
OTDR
| Display Size | 7 inches, High Brightness TFT LCD, resolution of 800×480 |
| Distance Units | m / km / mile / ft / kft |
| Range Settings | 1.3, 2.5, 5, 10, 20, 40, 80, 120, 160, 360km |
| Pulse Widths | 3ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 10μs, 20μs |
| Linearity | 0.03dB |
| Resolution | 0.04m ~ 10.24m |
| Sampling Points | 256,000 points |
| Output Power | 20mW |
Dimensions
| Size (HWD) | 6.25H x 8.58W x 2.75D inches |
| Weight | 3.75pounds (1.70kg with battery) |
| Product | Type |
|---|---|
| Power cable/AC Adapter | ACC-25/JS-180300 |
| Carrying Case | Soft case |
| Shoulder strap/ Touch pen | ✔ |
| Calibration certificate | ✔ |
| Optional Accessories | Type |
|---|---|
| Module 1 | 1310 / 1550 |
| Module 2 | 1310 / 1550 / 1625 |
| Module 3 | 1310 / 1550 / 1625 live port |
| Module 4 | 1310 / 1550 |
| Module 5 | 1310 / 1550 / 1625 live port |
| *Module 6 | 850 / 1300 |
| *Module 7 | 850 / 1300 / 1310 / 1550 |
| Module 8 | 1310 / 1550 |
| Module 9 | 1310 / 1550 / 1625 |
| Module 10 | 1310 / 1550 / 1625 live port |
| Module 11 | 1310 / 1550 / 1650 live port |
| Module 12 | 1625 live port |
| Module 13 | 1650 live port |
INNO OTDR
