TP-Link TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch

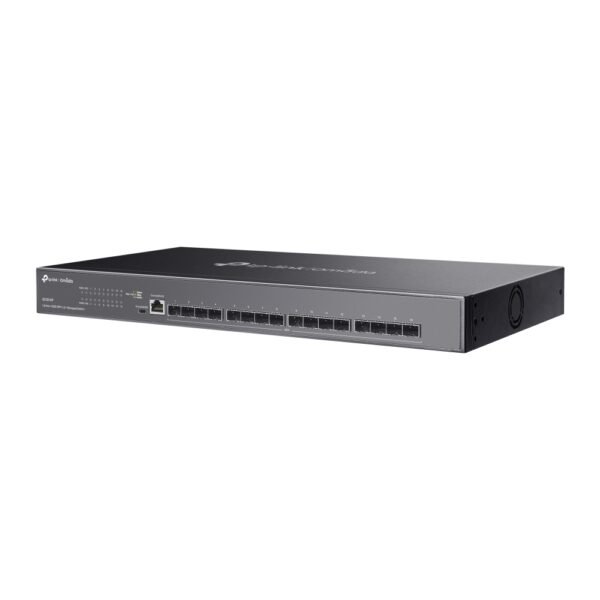

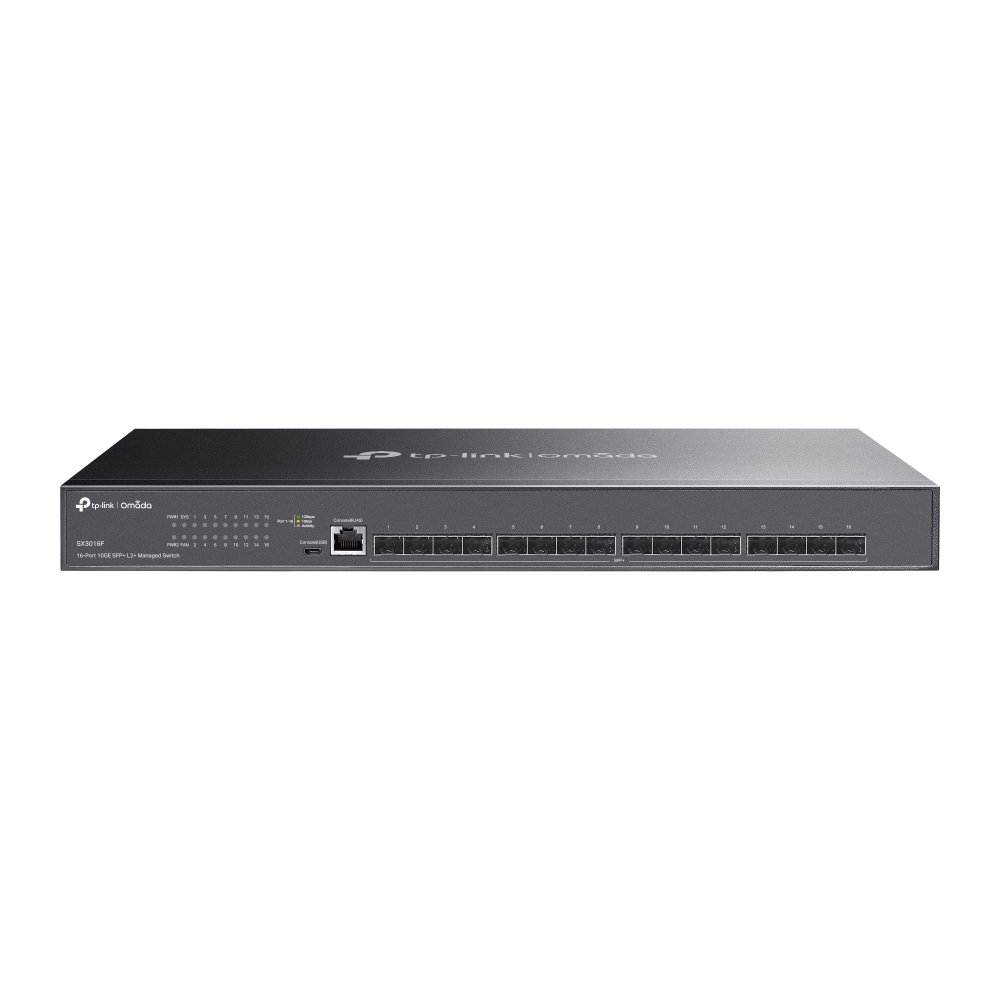

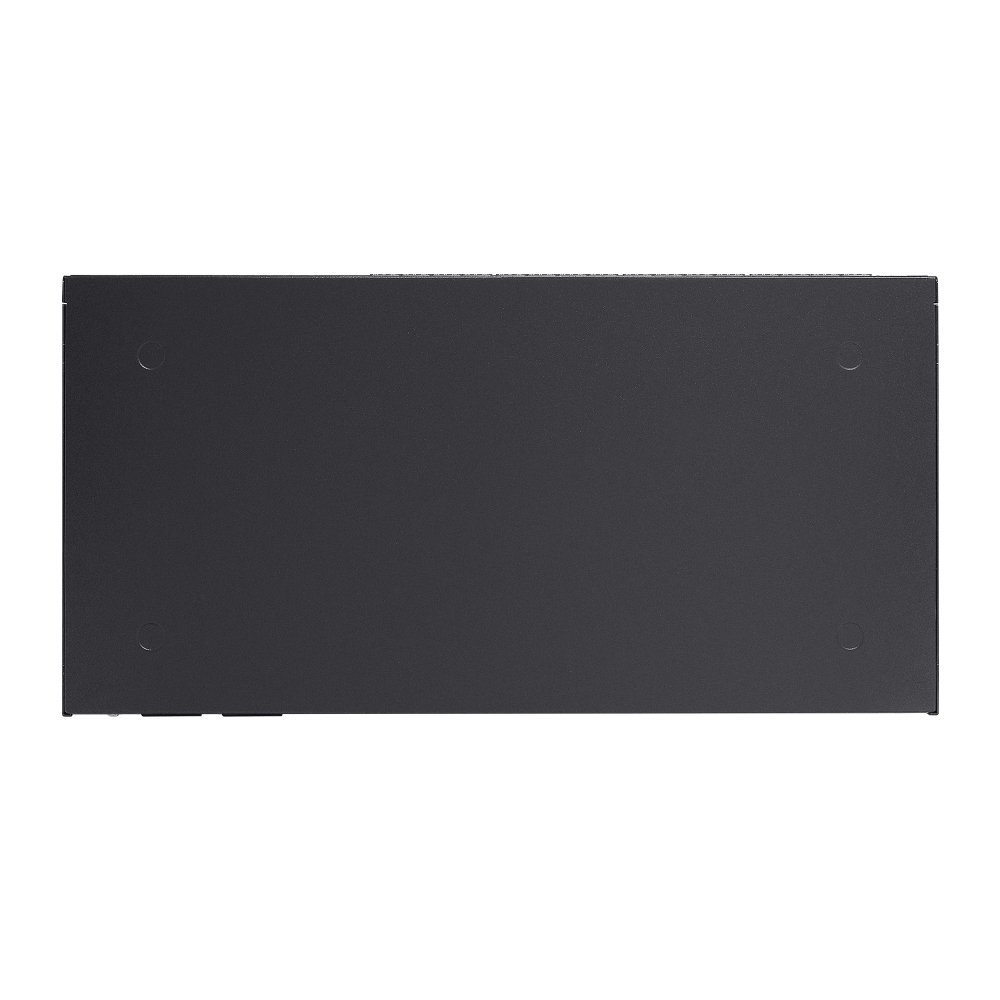

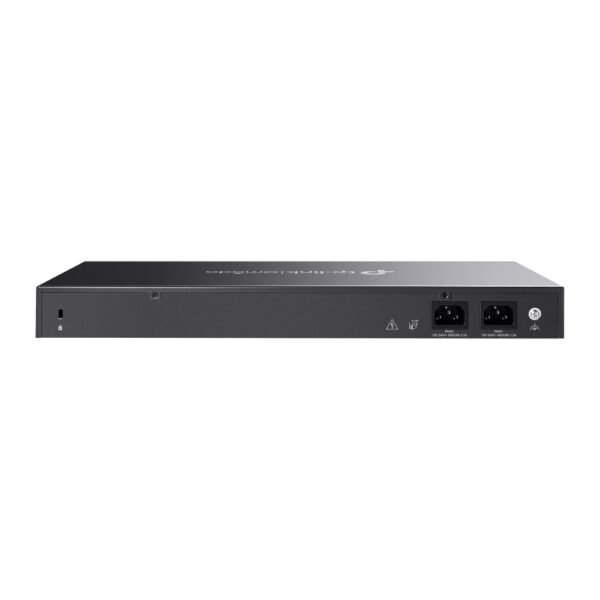

TP-Link TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch - Image 2

TP-Link TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch - Image 3

TP-Link TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch - Image 4

TP-Link TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch - Image 5

TP-Link TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch - Image 6

TP-Link TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch

Name: TP-Link TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch
Brand: TechPotli
SKU: Tp-Link SX3016F Omada 16-Port 10GE SFP+ L2+ Managed Switch
Price: 41500 INR
Availability: InStock
Rating: 5 (1 reviews)

Original price was: ₹64,420.00.Current price is: ₹41,500.00.

16× 10 Gbps SFP+ slots
320 Gbps switching capacity
Two power supply modules back each other up
Centralized cloud management via the web or the Omada app^†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
ERPS supports rapid protection and recovery in a ring topology
Durable metal casing and rack-mountable design

100 in stock

Compare

SKU: Tp-Link SX3016F Omada 16-Port 10GE SFP+ L2+ Managed Switch Categories: NETWORKING SWITCHES, SWITCHES Tags: 10 Gigabit Fiber Switch, 10G Ethernet Switch, 10g Network Switch, 10GE Fiber Switch with SFP+ Ports, 10GE SFP+ L2+ Managed Switch, 16-Port Managed Fiber Switch, 16-Port SFP+ Managed Switch, Data Center 10G Switch, Data Center Switch 10G, Enterprise 10G Fiber Switch, Enterprise 10G Network Switch, High Speed 10G Switch, High Speed Fiber Switch, JetStream 10G Managed Switch, Layer 2 Managed Switch, Layer 2+ 10G Switch, Rackmount 10G SFP+ Switch, Rackmount 10G Switch, Switch, switch port, TP-Link 10G SFP+ Switch, TP-Link 10GE L2+ Switch, TP-Link 16-Port 10G SFP+ Switch, TP-Link 16-Port 10GE Switch, TP-Link Fiber Network Switch, TP-Link JetStream 16-Port Switch, TP-Link JetStream Switch, TP-Link L2+ 16-Port Switch, TP-Link SFP Switch, TP-Link TL-SX3016F Brand: TP-Link

Description
Reviews (0)

SX3016F

Omada 16-Port 10GE SFP+ L2+ Managed Switch

HARDWARE FEATURES
Interface	• 16× 10G SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port
Fan Quantity	1
Physical Security Lock	√
Power Supply	• Dual Redundant Power Supplies • 100-240 V AC~50/60 Hz
Dimensions ( W x D x H )	17.3×8.7×1.7 in (440×220×44 mm)
Mounting	Rack Mountable
Max. Power Consumption	32.74 W (220 V / 50 Hz)
Max Heat Dissipation	111.71 BTU/hr (220 V / 50 Hz)

PERFORMANCE
Switching Capacity	320 Gbps
Packet Forwarding Rate	238.08 Mpps
MAC Address Table	32 K
Packet Buffer Memory	24 Mbit
Jumbo Frame	9 KB

SOFTWARE FEATURES
Quality of Service	• 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR • Bandwidth Control: Port/Flow-based Rating Limiting • Smoother Performance • Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
L2 and L2+ Features	• 128 IP Interfaces: Support IPv4/IPv6 Interface • Static Routing: 48 IPv4/IPv6 Static Routes • Static ARP: 128 static entries • 512 ARP Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay • DHCP L2 Relay • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring
L2 Multicast	• Supports 1000 (IPv4, IPv6) IGMP groups • IGMP Snooping • IGMP Authentication • Multicast VLAN Registration (MVR) • MLD Snooping • Multicast Filtering: 256 profiles and 16 entries per profile
Advanced Features	• Automatic Device Discovery^† • Batch Configuration^† • Batch Firmware Upgrading^† • Intelligent Network Monitoring^† • Abnormal Event Warnings^† • Unified Configuration^† • Reboot Schedule^†ISP Features*: • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • PPPoE ID Insertion • ERPS • 802.3ah Ethernet Link OAM • DDM • sFlow
VLAN	• VLAN Group (802.1q VLAN): Max 4K VLAN Groups • 802.1Q Tagged VLAN • MAC VLAN: 30 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 12 • Private VLAN • GVRP • VLAN VPN (QinQ): Port-Based QinQ, Selective QinQ • Voice VLAN
Access Control List	• Time-based ACL • MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type • IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS • Combined ACL • Packet Content ACL • IPv6 ACL • Policy: Mirroring, Redirect, Rate Limit, QoS Remark • ACL applies to Port/VLAN
Security	• IP-MAC-Port Binding – 512 Entries – DHCP Snooping – ARP Inspection – IPv4 Source Guard • IPv6-MAC-Port Binding – 512 Entries – DHCPv6 Snooping – ND Detection – ND Snooping – IPv6 Source Guard • DoS Defend • Static/Dynamic Port Security: Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode • 802.1X – Port base authentication – MAC-based authentication – VLAN Assignment – MAB – Guest VLAN – Radius authentication and accountability support • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access control
IPv6	• IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs	• MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB

Management Features
Omada App	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	• Web-based GUI • Command Line Interface (CLI) through the console port, telnet • SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log

OTHERS
Certification	CE, FCC, RoHS
Package Content	• SX3016F Switch • 2× Power Cords • Quick Installation Guide • Rackmount Kit • Rubber Feet
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment	• Operating Temperature: 0–45 ℃ (32–113 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
