Tenda TEG5328P-24-410W L3 Managed PoE Switch
Original price was: ₹13,450.00.₹13,120.00Current price is: ₹13,120.00.
100 in stock
CompareTEG5328P-24-410W L3 Managed PoE Switch

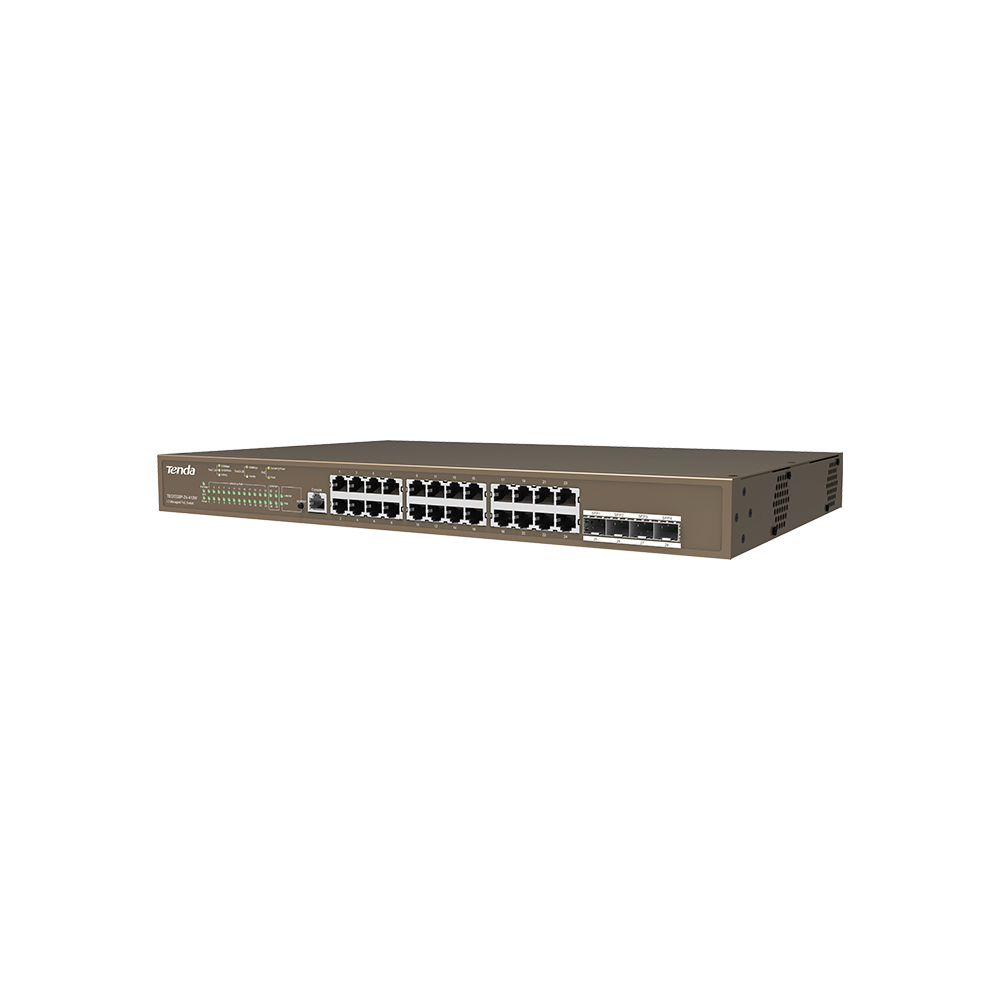

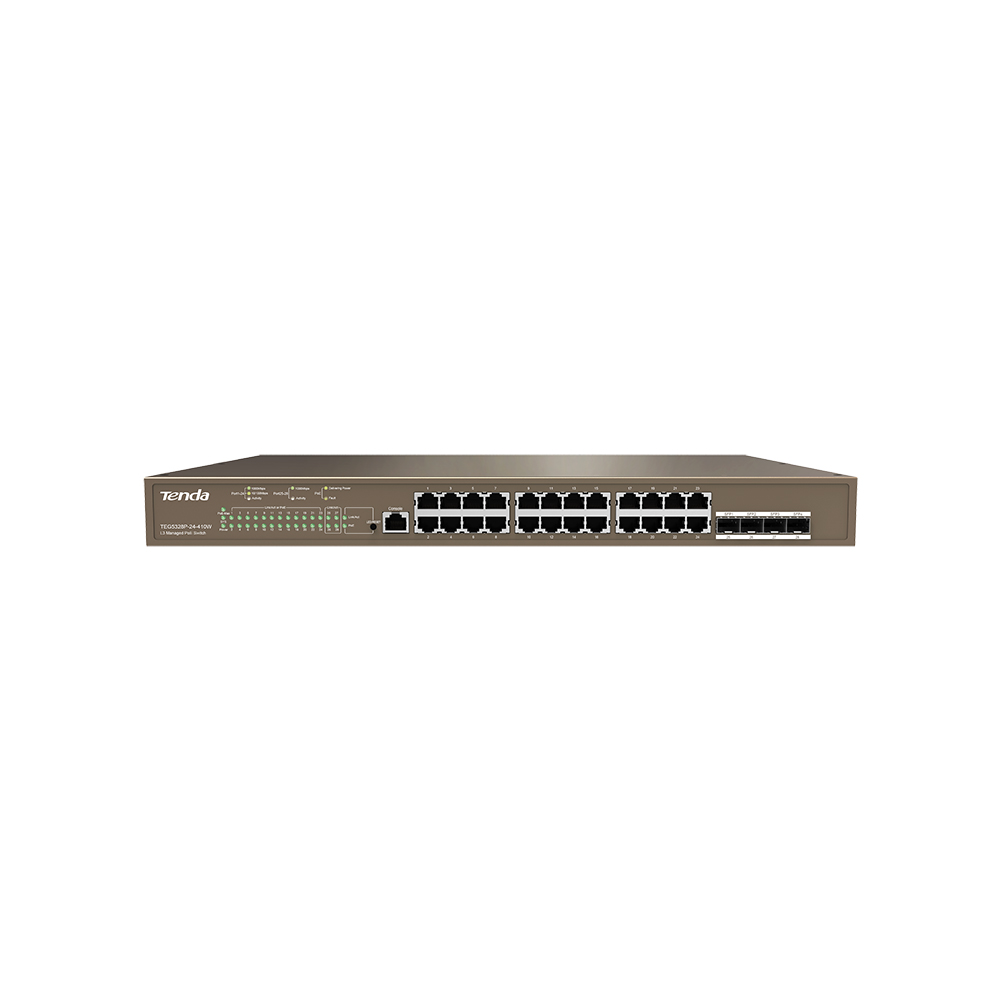

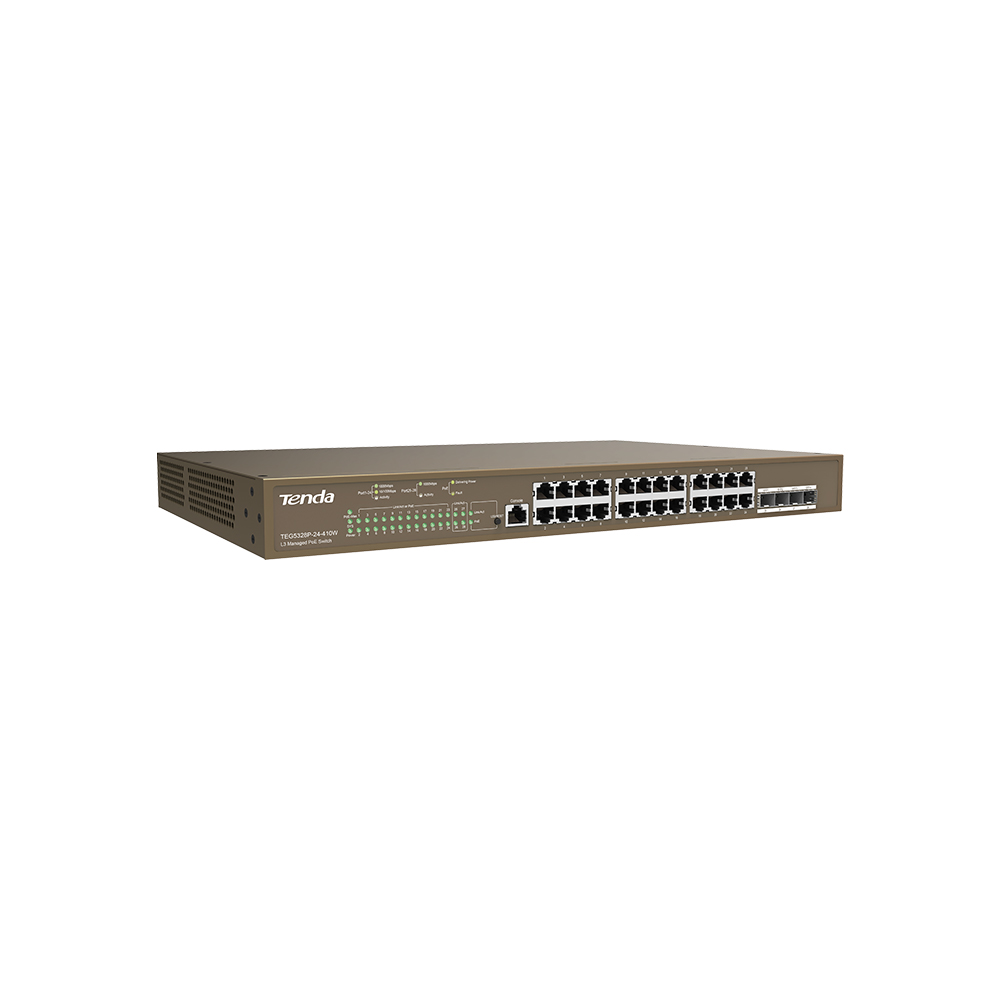

TEG5328P-24-410W is a Tenda Layer-3 managed PoE switch. To meet the demand of high-performance access, the switch provides 24 10/100/1000 Mbps Base-T Ethernet ports and 4 separate 1000 Mbps Base-X SFP ports, and a PoE power of up to 370 W.With an innovative hardware structure and software platform, it features a powerful processing capacity and complete security protection mechanism, making management and maintenance easy and simple, fully meeting the demands of high-density user access and high-performance aggregation, ideal for the aggregation layer or access layer of such medium to large networks as enterprises and campuses.
| Network standards | IEEE802.3、 IEEE802.3u、 IEEE802.3ab、 IEEE802.3z、 IEEE802.3x、 IEEE802.3af/at、IEEE802.1p、IEEE802.1q、 IEEE802.1w、 IEEE802.1d、 IEEE802.1s |
| LED Indicator | 1*Link/Act or PoE LED indicator 1*Link/1*Link/Act mode converting LED indicator 1*PoE mode converting LED indicator 1*PoE Max LED indicator 1*Power LED indicator 1*SYS LED indicator |
| Interfaces | 24*10/100/1000 Base-T Ethernet ports 4*1000 Base-X SFP ports 1*Console port |
| Transmission media | Recommended: CAT5/5e UTP or better |
| Fan quantity | 2 |
| Level of protection | Lightning protection for ports: 6kV Lightning protection for power: 6kV ESD: Air discharge: ±10kV Contact discharge: ±8kV |
| Forwarding mode | Store-and-forward |
| Switch capacity | 56Gbps |
| Packet forwarding rate | 41.70Mpps |
| Buffer | 12Mb |
| MAC address table | 16K |
| Jumbo frame | 10K |
| PoE power supply management | Support |
| PoE budget | Single port: AF: 15.4W, AT: 30W Whole device: 370W |
| Input voltage | 100-240V AC 50/60Hz |
| Power consumption | Full load: ＜432W Empty load: ＜23W |
| Dimension | 440.0mmx284.0mmx44.0mm |
| Mounting | Desktop mounting: support Wall mounting: support Rack mounting:non-support |
| Energy Efficient | Support |
| Environment | Operating temperature: 0°C – 45℃ Storage temperature: -40°C – 70°C Operating humidity: (10% – 90%) RH, non-condensing Storage humidity: (5% – 90%) RH, non-condensing |
| Certification | FCC、CE、RoHS |
| L3 Features | Supports VLAN-based routing Supports IPv4/IPv6 static routing Supports static ARP |
| PoE power supply management | Supports port PoE configuration and power supply with priority Supports PoE over-temperature protection Supports PoE scheduled management Supports intelligent management and PoE-powered device detection (port status, power assignment and PoE-powered device status) |
| Security features | ARP receiving limit Unknown MAC address discard DoS attack defense 802.1x security authentication Radius security authentication |
| VLAN | IEEE 802.1Q VLAN VLAN Layer-3 interfaces Supports three port modes: Access, Trunk and Hybrid |
| DHCP Server | DHCP Relay DHCP Snooping Supports Option 82 policy configuration |
| Port aggregation | Static aggregation LACP dynamic aggregation |
| Spanning tree | IEEE 802.1d STP (Spanning Tree Protocol) IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) Supports edge port Supports BPDU statistics |
| Multicast | IGMP Snooping V1/V2/V3 Supports port fast leave |
| Port Mirroring | Supports N: 1 port mirroring |
| Quality of Service | SP (Strict Priority) SWRR (Simple Weighted Round Robin) WRR (Weighted Round Robin) Supports 802.1p port trust mode Supports DSCP port trust mode Supports a maximum of 8-queue service quality mapping |
| ACL | Supports MAC ACL and IP ACL |
| Loading and upgrade | Supports FTP/TFTP/HTTP upgrade Supports configuration import and export |
| Management and maintenance | Supports Telnet, Console Supports SNMP V1/V2/V3 Supports WEB management and maintenance Supports Ping/IPv6/Tracert/Connection Detection CPU Monitoring and memory monitoring |
