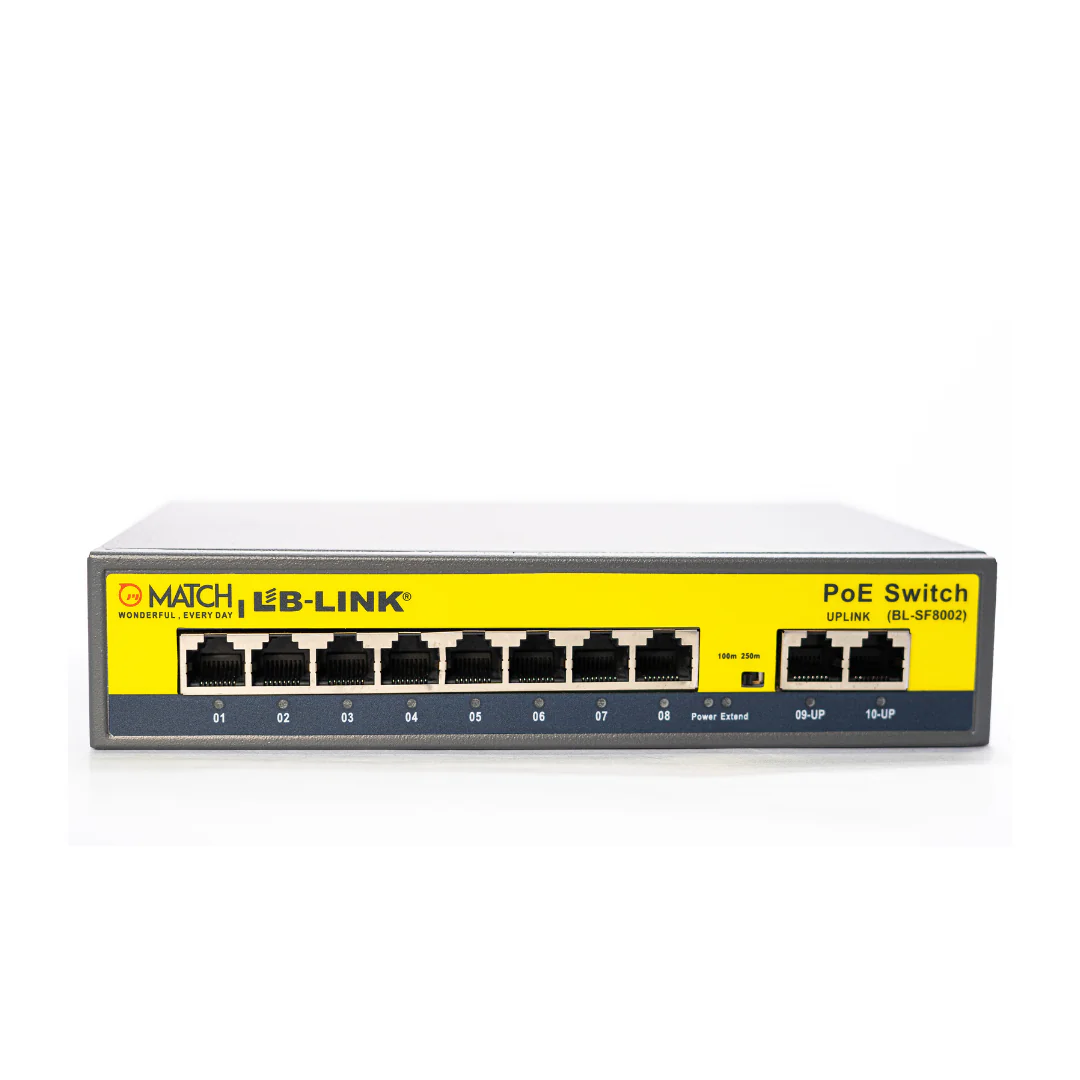

Match LB-Link BL-SF8002UG 8 Port 10/100 POE Switch

8 Port 10/100 POE Switch with 2 Giga Up-Links

BL-SF8002UG

This Poe switch has 8 10/100Base-TX Ethernet ports and 2 10/100/1000Base-T ethernet port, of which port 1-8 support IEEE802.3 af/at Poe (Power over Ethernet) protocol power supply. It supports a maximum output power of 25.4W, and the maximum power output of whole machine is 96W; It is support standard Poe protocol, which can automatically detect whether the powered device supports Poe power supply, and it only provide the power to the same protocol PD devices, it can effectively prevent damage to non-Poe powered devices.

• 8 10/100Base-TX PoE ports, 2 10/100/1000Base-T uplink ports;
• Support IEEE802.3 af/at PoE protocol, An PoE RJ45 port can supply maximum power output of 25.4W;
• Support one-key switch to VLAN mode and 250m long distance transmission mode；
• Port 1-8 support 10/100Mbps auto-negotiate, port 9-10 support 10/100/1000mbps auto-negotiate
• Support Half/Full duplex adaptive, and auto MDI/MDI-X function;
• All port support wire-speed forwarding;
• Support desktop and wall-mounted installation;
• Plug and Play, no configuration requirements;
• Metal case, internal power supply, Excellent heat dissipation performance can let the product running stable for a long time
