TP-Link MC220L | Gigabit SFP Media Converter for Long-Distance Fiber Networks

MC220L Gigabit Media Converter supports 1000Base-T Ethernet and 1000Base-X fiber with an SFP slot. Ideal for long-distance networking, it works with multi-mode and single-mode SFP modules for speeds up to 1Gbps.

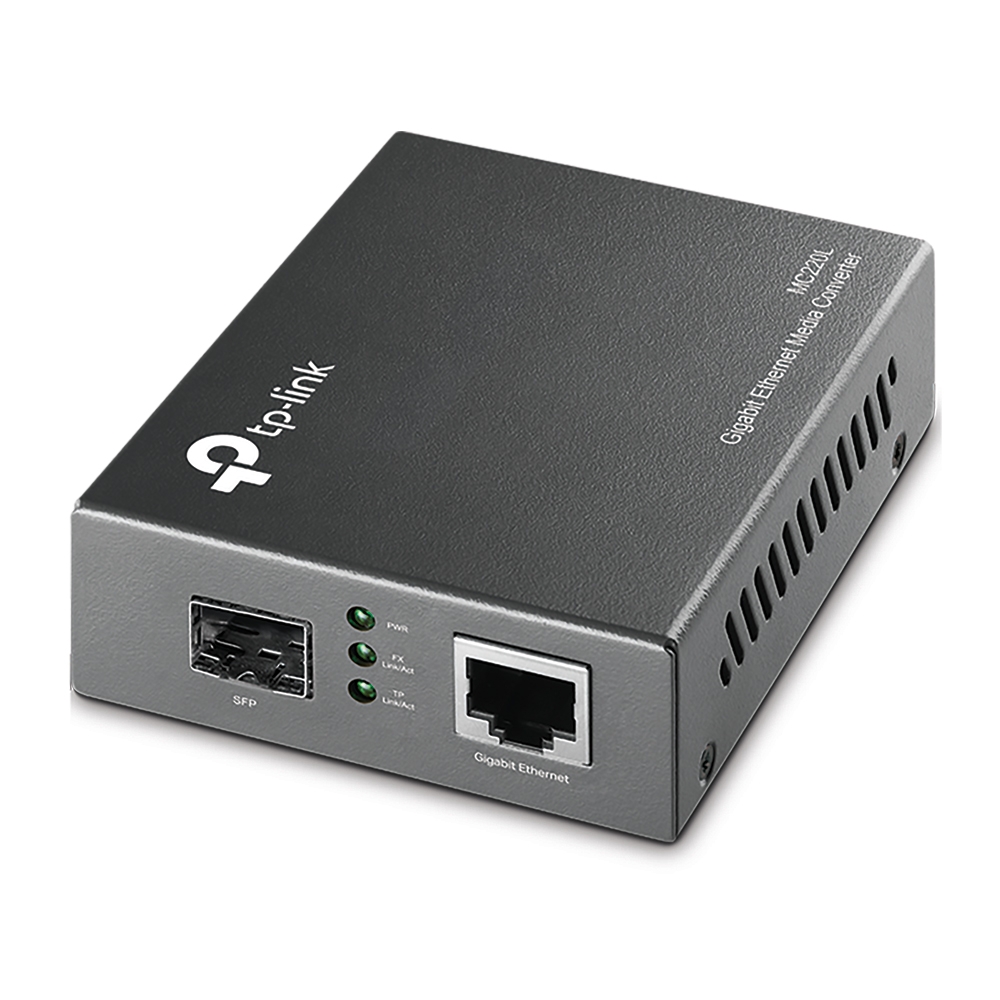

TP-Link MC220L is a high-performance Gigabit SFP Media Converter designed to convert Ethernet signals between 1000Base-T and 1000Base-X. It supports a wide range of SFP modules and is ideal for extending network coverage over fiber.

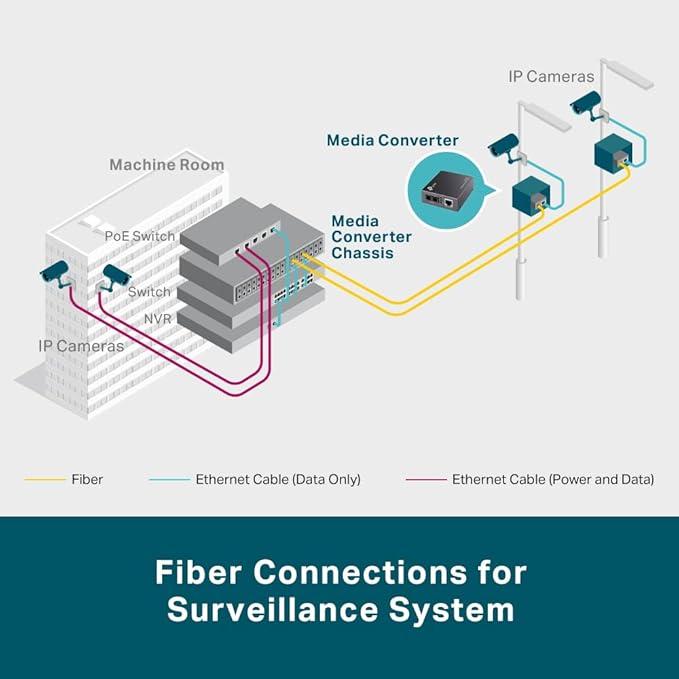

TP-Link MC220L Gigabit Media Converter is a versatile solution for connecting Ethernet networks to fiber optic systems. Supporting both 1000Base-T Ethernet via an RJ45 port and 1000Base-X fiber through an SFP slot, it offers seamless connectivity for various networking applications.

The MC220L is compatible with a wide range of SFP modules, allowing for customized configurations based on the type and distance of the fiber deployment. Whether it’s multi-mode or single-mode fiber, this media converter ensures stable, high-speed data transmission over long distances.

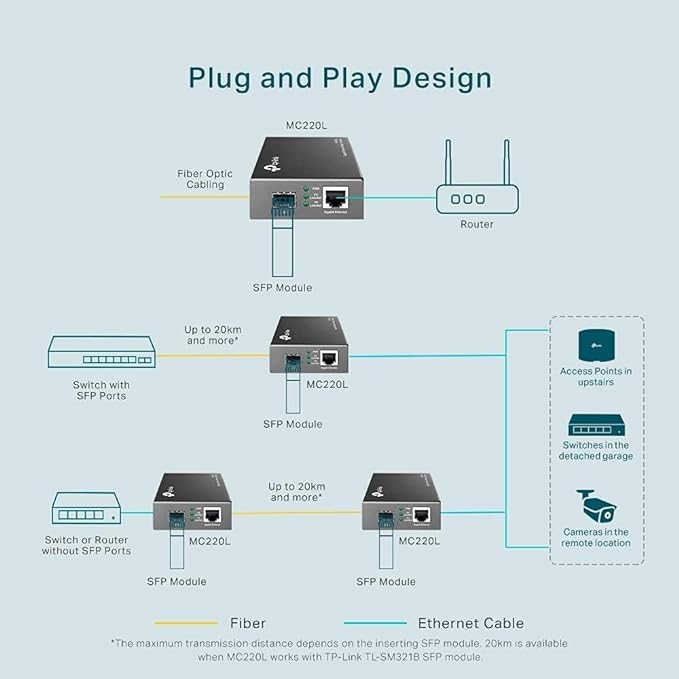

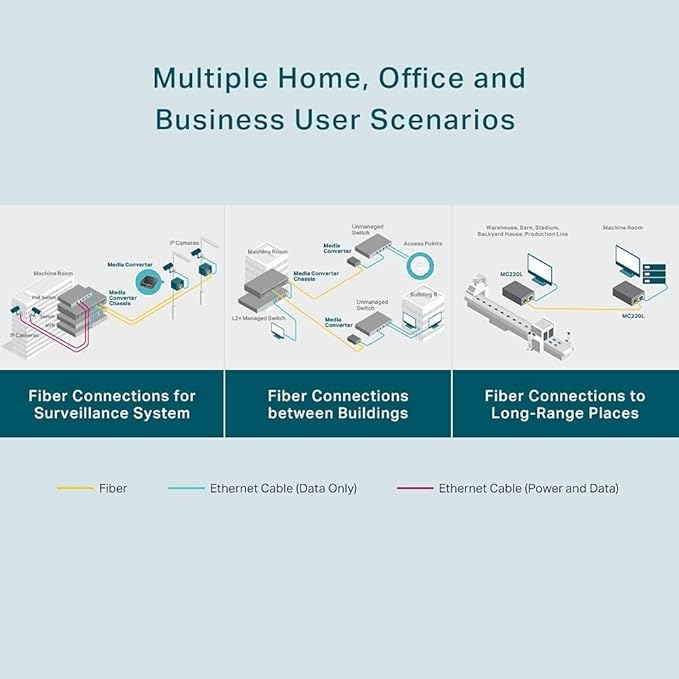

With its compact design and plug-and-play functionality, the MC220L is easy to install and operate. It’s an excellent choice for businesses and organizations looking to extend their network coverage while maintaining Gigabit-level speeds.

• 1 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Complies with IEEE 802.3ab and IEEE 802.3z
• FX port supports hot-swappable
• Maximum transmission distance depends on the inserting SFP

• MEDIA CONVERTER & MODULE
  Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
  Basic Function	Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Maximum transmission distance depends on the inserting SFP module
  Ports	1 1000M SFP port 1 10/100/1000M RJ45 port (Auto MDI/MDIX)
  Wave Length	Depends on the used SFP module
  Network Media 1000BASE-X	Multi-mode/Single-mode SFP module
  Network Media 1000BASE-T	UTP category 5, 5e cable (maxium 100m) EIA/TIA-568 100Ω STP (maximum 100m)
  LED Indicators	PWR, Link/Act
  Dimensions (W*D*H)	3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
  Power Supply	External Power Adapter
  Max Power Consumption	1.7W
  Safety & Emission	FCC, CE, RoHS
  Package Contents	• Media Converter MC220L • Power Adapter • Installation Guide
  Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
