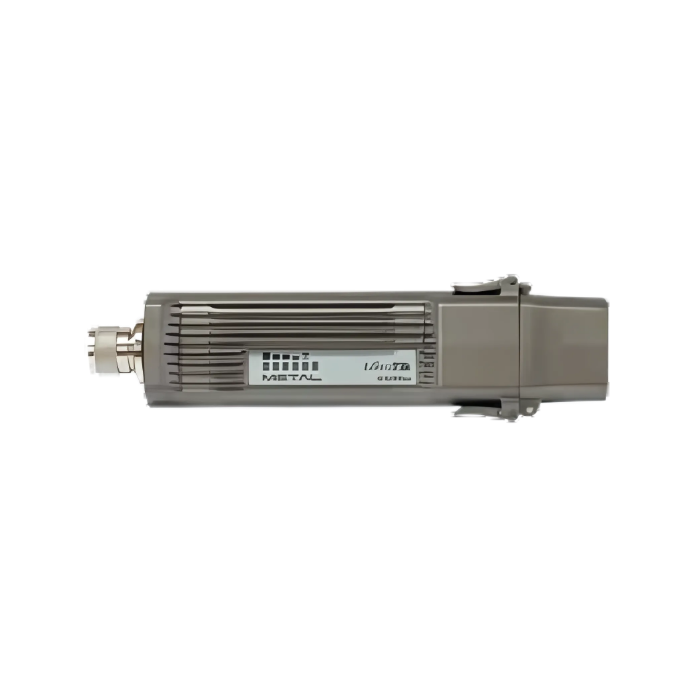

MIKROTIK Routerboard Metal 52 Ac Outdoor Wireless Ap 802.11ac- RBMetalG-52SHPacn

MIKROTIK Routerboard Metal 52 ac RBMetalG-52SHPacn | Outdoor Dual-Band Wireless AP with 802.11ac & Gigabit Port

Metal 52 ac

2.4/5GHz software selectable AP/Backbone/CPE with AC support, high TX power, N-male connector, Omni antenna included

Now with 802.11ac support, a Gigabit Ethernet port and a selectable wireless band (2.4GHz or 5GHz, up to 80 MHz wide channel). The new Gigabit port will help you utilize the full benefit of 802.11ac high speed wireless.

The Metal 52 ac supports 2.4GHz, 5GHz and all the legacy wireless modes as well (802.11 b/g/n for 2.4GHz and 802.11 a/n/ac for 5GHz).

We have two versions available.

– RBMetalG-52SHPacn-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

– RBMetalG-52SHPacn (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Powering

Details
Number of DC inputs	1 (PoE-IN)
Max power consumption	11 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	10-30 V

Wireless specifications

Details
Wireless 2.4 GHz/5 GHz Max data rate	433 Mbit/s
Wireless 2.4 GHz/5 GHz number of chains	1
Wireless 2.4 GHz/5 GHz standards	802.11a/n/ac, 802.11b/g/n
Antenna gain dBi for 2.4 GHz/5 GHz	6
Wireless 2.4 GHz/5 GHz chip model	QCA9889
Wireless 2.4 GHz/5 GHz generation	Wi-Fi 5

Ethernet

Details
10/100/1000 Ethernet ports	1

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes
Beeper	Yes

Certification & Approvals

Details
Certification	CE, FCC, IC, EAC, ROHS
IP	IP55

Wireless specifications

5 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	31	-93
54MBit/s	27	-78
MCS0	30	-93
MCS7	26	-74
MCS9	22	-69
2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	31	-97
11MBit/s	31	-91
6MBit/s	31	-93
54MBit/s	28	-77
MCS0	31	-93
MCS7	27	-72

Included parts

MIKROTIK Routerboard
