MIKROTIK RouterBoard RB450Gx4 | Quad-Core Gigabit Router with PoE-Out and microSD Support

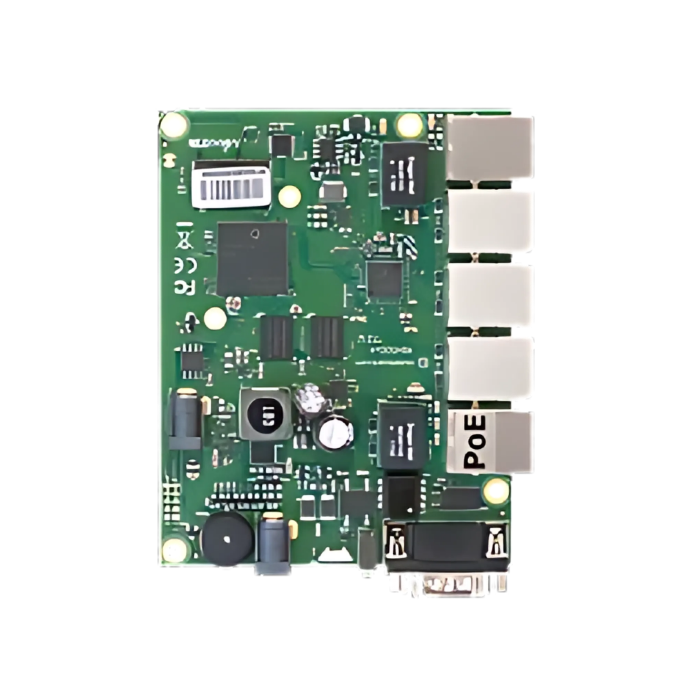

MIKROTIK RouterBoard RB450Gx4

MIKROTIK RouterBoard RB450Gx4 Four core 716MHz CPU, 1GB RAM, 5xGigabit Ethernet, PoE out on port #5, RouterOS L5

The RB450Gx4 is a compact Ethernet router with five Gigabit Ethernet ports, a serial port, 512 MB NAND storage, and a microSD card slot. It supports a wide 10V–57V input range via two power jacks or PoE (802.3af/at or passive) and offers PoE output on port #5.

Powered by a quad-core ARM CPU and 1 GB RAM, the device supports hardware IPsec encryption. It runs on MikroTik RouterOS, turning it into a powerful router, firewall, or bandwidth manager.

The RB450Gx4 comes without an enclosure, giving you flexibility in custom installations. Its form factor matches the older RB850 and RB450 series, allowing reuse of existing enclosures.

The operating system is preinstalled and licensed, with free software updates for the life of the product or at least five years from the purchase date.

Powering

Details
Number of DC inputs	3 (PoE-IN, DC jack)
DC jack input Voltage	10-57 V
Max power consumption	16 W
Max power consumption without attachments	4 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	12-57 V

PoE-out

Details
PoE-out ports	Ether5
PoE out	Passive PoE
Max out per port output (input 18-30 V)	500 mA
Max out per port output (input 30-57 V)	500 mA
Max total out (A)	500 mA

Ethernet

Details
10/100/1000 Ethernet ports	5

Peripherals

Details
Memory card type	microSD
Serial console port	RS232

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes
Beeper	Yes

MIKROTIK RouterBoard: Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	IP00
