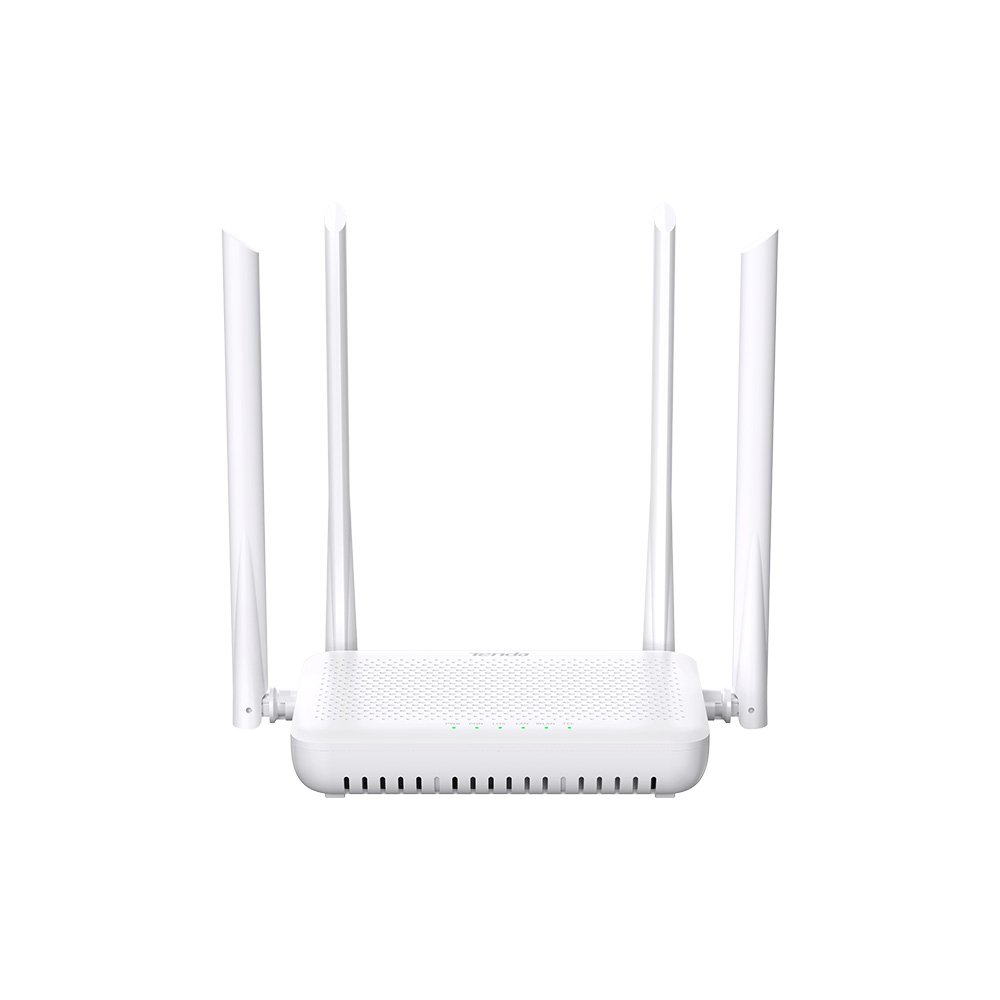

ONT Tenda HG15 AX1500 Wi-Fi6 VoIP XPON ONT

ONT Tenda HG15 AX1500 Wi-Fi6 VoIP XPON ONT - Image 2

ONT Tenda HG15 AX1500 Wi-Fi6 VoIP XPON ONT - Image 3

ONT Tenda HG15 AX1500 Wi-Fi6 VoIP XPON ONT - Image 4

ONT Tenda HG15 AX1500 Wi-Fi6 VoIP XPON ONT - Image 5

ONT Tenda HG15 AX1500 Wi-Fi6 VoIP XPON ONT

Name: ONT Tenda HG15 AX1500 Wi-Fi6 VoIP XPON ONT
Brand: TechPotli
SKU: 14524
Price: 5500 INR
Availability: InStock
Rating: 5 (1 reviews)

Original price was: ₹6,600.00.Current price is: ₹5,500.00.

100 in stock

Compare

Categories: FIBER PRODUCT, GPON/EPON, XPON DUAL BAND Tags: DUAL BAND, ONT

Description
Reviews (0)

HG15 Tanda AX1500 Wi-Fi6 VoIP XPON ONT

IEEE Standards	IEEE 802, 802.1Q, 802.10, IEEE 802.11, 802.3U, 802.3Z
PON Standards	GPON：ITU G.984.1, ITU G984.2, ITU G984.3, ITU G984.4 EPON：IEEE 802.3 ah
Interfaces	1 SC/APC or SC/UPC （optional）Port 4 1000Mbps RJ45 LAN Ports 1 TEL Port 1 DC Power
LED Indicator	PWR, PON, LOS, LAN, WLAN, TEL
Button	1 *RST/WPS Button
Optical Mode	Class B+
Optical Wavelength	Transmit at 1310nm, Receive at 1490nm
Transmission Distance	20km Max
Bandwidth	GPON : Upstream 1.244Gbps Max, Downstream 2.488Gbps Max EPON : Upstream 1.244Gbps Max, Downstream 1.244Gbps Max
Dimension	220.8×141.9×31mm（L×W×H)
TX Power	0.5~5dBm
RX Power	-28~-8dBm
External Power Supply	DC 12V /1.5A
Power Consumption	≤18w
DHCP Server	Server, Client, DHCP Client List, Address Reservation, DHCP Relay
WAN Connection	PPPoE , Dynamic IP, Static IP, Bridge, Support Multiple WAN Connection
Business Type	TR069, Internet, IPTV, VoIP
Quality Of Service	Bandwidth Control
IP Version	IPv4, IPv6
Services	DHCP, Dynamic DNS, IGMP Proxy UPnP, MU-MIMO, QOS, Preset, Easymesh
VPN Pass-through	PPTP, L2TP, Ipsec Pass-through
Firewall	ALG, IP Filter, Port Filter, MAC Filter, URL Filter Port Forwarding, DMZ, DDOS
IPv6	Radvd, DHCPv6, MLD Proxy, MLD Snooping
Diagnostics	Ping, Ping6, Tracert, Tracert6
TR069	ACS, Connection request
VoIP	Main Proxy, Black Proxy, SIP Advanced, Forward Mode, Speed Dial, Dial Plan , Codec, Hotline, DND, Alarm
Frequency	2.4GHz & 5GHz
Bandwidth	2.4G :20M/40M 5G: 20M/40M/80M
Channel Range	2.4G : CH1-CH13 5G : CH36-CH48, CH149-CH165
Antenna	4 *6 dBi Antenna
Easy Client Setup	WPS
Speed	11n 300M + 11ax 1201M
Transmission Power	2.4G: <25.5 dBm(EIRP) 5G: <22.5dBm(EIRP)
Wireless Functions	Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Beamforming,OFDMA, MU-MIMO
Wireless Security	64/128-bit WEP, WPA / WPA2/ WPA3
SSIDs	Main SSID at 2.4Ghz and 5GHz 4 Guest SSIDs Both At 2.4GHz and 5GHz
Max Terminal Linked	32 at both 2.4GHz and 5GHz
Operation Temperature	0°c ~ 45°c
Storage Temperature	-40°c ~ 70°c
Operating Humidity	10% ~ 95% （Non-condensing）
Storage Humidity	5% ~ 90% (Non-condensing)
Package Contents	1HG15, 1 Power adapter, 1* User manual, 1* RJ45 cable, 1*RJ11 cable
Certification	CE, FCC , RoHS，Anatel
