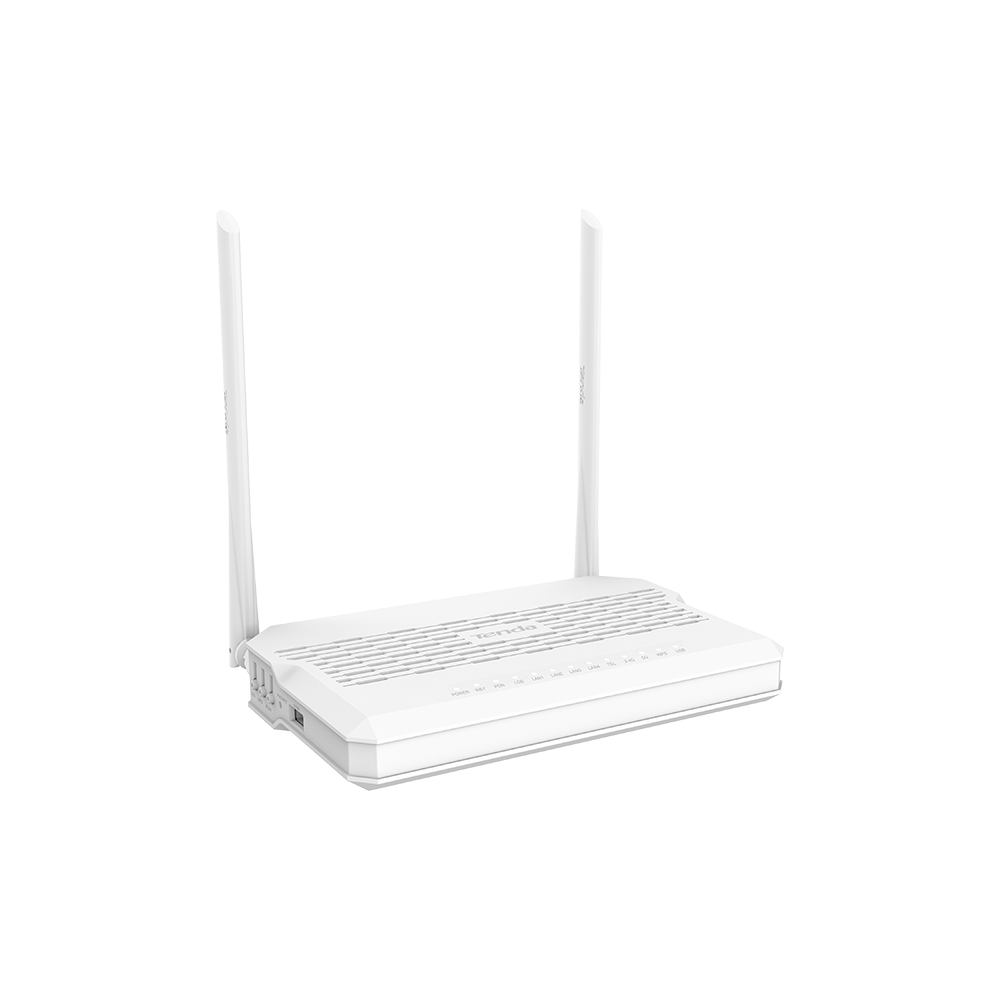

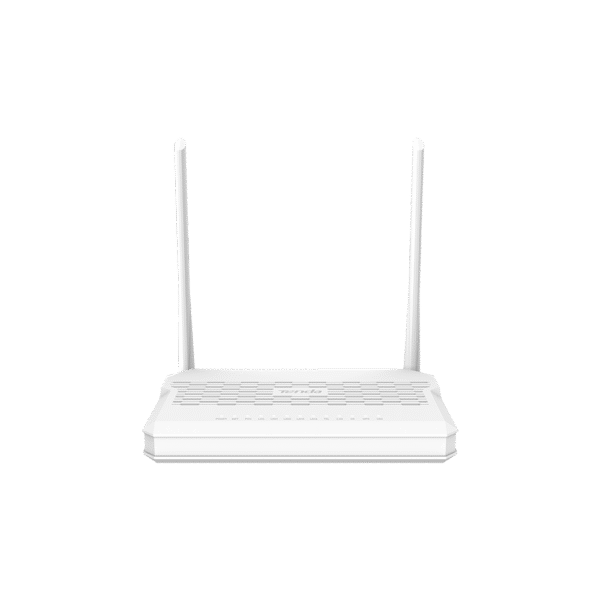

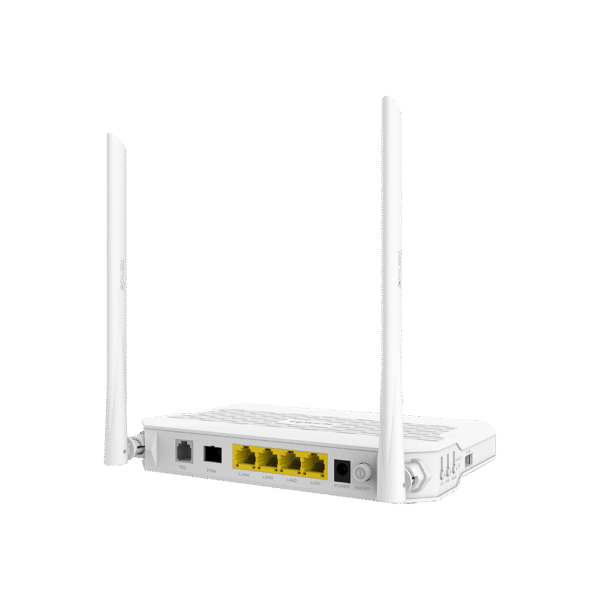

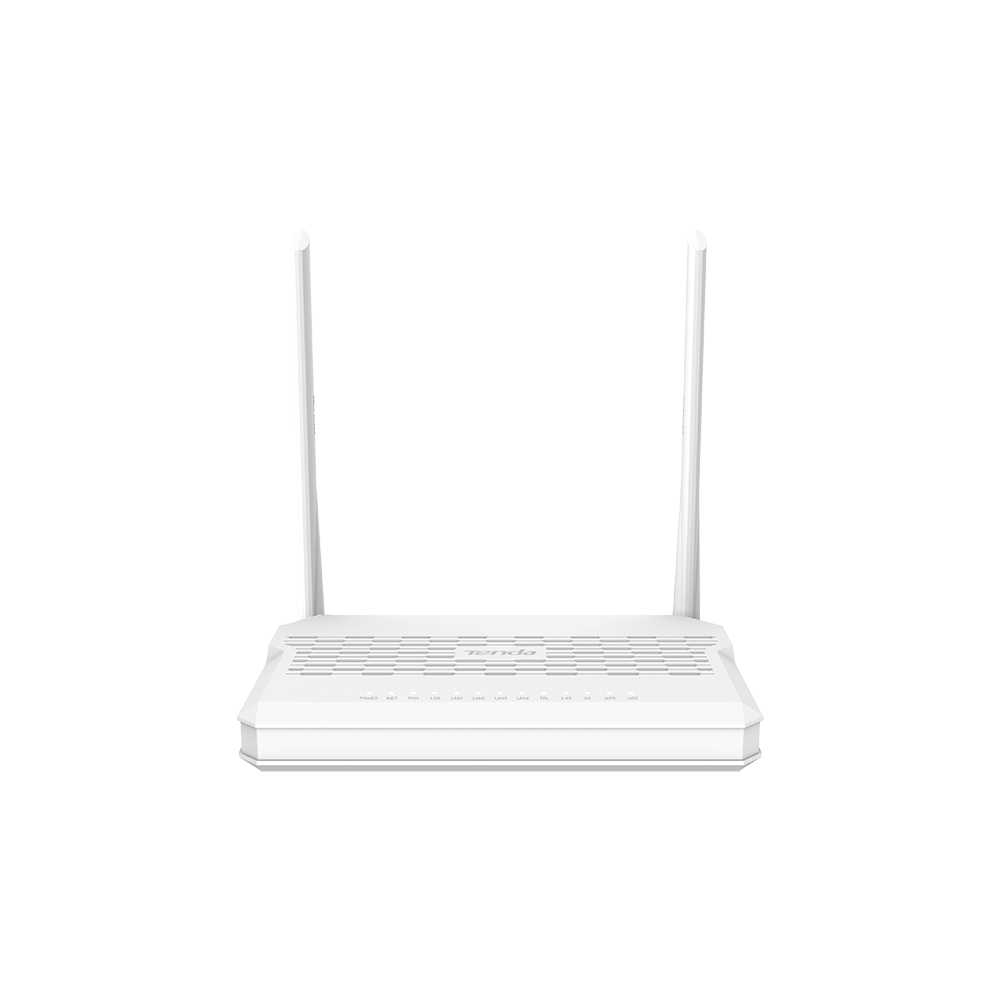

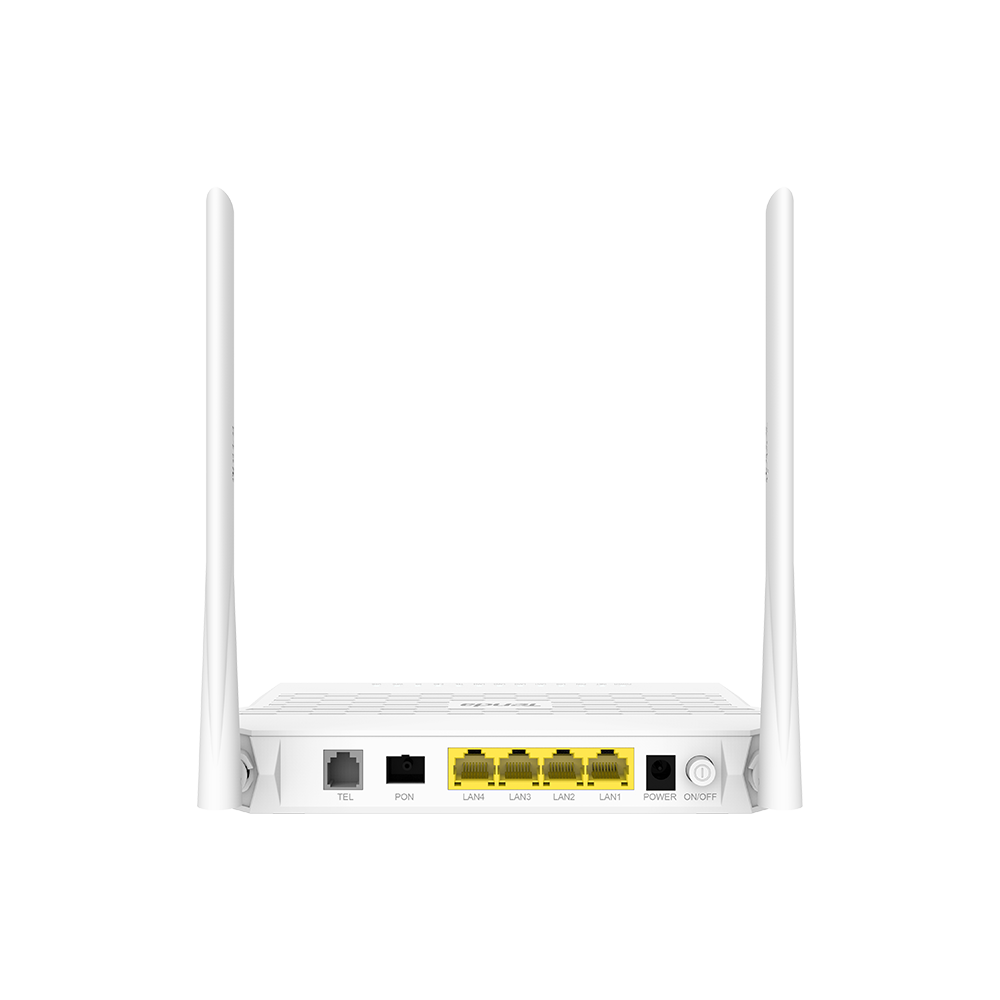

ONT Tenda HG9 AC1200 Dualband Wi-Fi GPON ONT Router

ONT Tenda HG9 AC1200 Dualband Wi-Fi GPON ONT Router - Image 2

ONT Tenda HG9 AC1200 Dualband Wi-Fi GPON ONT Router - Image 3

ONT Tenda HG9 AC1200 Dualband Wi-Fi GPON ONT Router - Image 4

ONT Tenda HG9 AC1200 Dualband Wi-Fi GPON ONT Router - Image 5

ONT Tenda HG9 AC1200 Dualband Wi-Fi GPON ONT Router

Name: ONT Tenda HG9 AC1200 Dualband Wi-Fi GPON ONT Router
Brand: TechPotli
SKU: 14554
Price: 2100 INR
Availability: InStock
Rating: 5 (1 reviews)

Original price was: ₹2,250.00.Current price is: ₹2,100.00.

100 in stock

Compare

Categories: FIBER PRODUCT, GPON/EPNO, XPON DUAL BAND Tags: DUAL BAND, wifi routert

Description
Reviews (0)

HG9 AC1200 Dualband Wi-Fi GPON ONT Router

IEEE Standards	IEEE 802, 802.1Q, 802.10, IEEE 802.11, 802.3U, 802.3Z
PON Standards	ITU G.984.1, ITU G984.2, ITU G984.3, ITU G984.4
Interfaces	1SC/APC GPON Port, 41000mbps RJ45 LAN Ports, 1USB Port, 1voip Port, 1*DC Port
LED Indicator	POWER, INET, PON, LOS, LAN1, LAN2，LAN3, LAN4, TEL,2.4G,5G, WPS, USB
Button	1* Power On/Off Button, 1WPS Button, 1WLAN Button, 1 RESET Button ，1*LED Button
Optical Mode	Class B+
Optical Wavelength	Transmit at 1310nm, Receive at 1490nm
Transmission Distance	20km Max
Bandwidth	Upstream 1.25Gbps Max, Downstream 2.5Gbps Max
Dimension	190124.926.5 mm (W * D * H)
TX Power	0.5~5dBm
RX Power	-28~-8dBm
External Power Supply	DC 12V /1.5A
Power Consumption	≤18w
DHCP Server	Server, Client, DHCP Client List, Address Reservation, DHCP Relay
WAN Connection	PPPoE , Dynamic IP, Static IP, Bridge
Business Type	TR069, Internet, IPTV, VoIP
Quality Of Service	Bandwidth Control
IP Version	IPv4, IPv6
Services	DHCP, Dynamic DNS , IGMP Proxy UPnP, Samba
VPN Pass-through	PPTP, L2TP, IPsec Pass-through
Firewall	ALG, IP Filter ,Port Filter, Mac Filter, URL Filter Port Forwarding， DMZ
IPv6	Radvd, Dhcpv6, MLD Proxy, MLD Snooping
Diagnostics	Ping, Ping6, Tracert, Tracert6
TR069	ACS, Connection request
VoIP	Main Proxy, Black Proxy, SIP Advanced, Forward Mode, Speed Dial, Dial Plan , Codec, Hotline, DND, Alarm
Frequency	2.4GHz & 5GHz
Bandwidth	2.4g :20M/40M, 5G: 20M/40M/80M
Channel Range	2.4G : CH1-CH13 5G : CH36-CH64, CH100-CH140, CH149-CH165
Antenna	2 * 6 dBi Antenna
Easy Client Setup	WPS Button, WPS LED
Speed	11n 300M + 11ac 867M
Transmission Power	2.4G: <20 dBm(EIRP) 5G: <23dBm(EIRP)
Wireless Functions	Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security	64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK Encryption, Wireless MAC Filtering
SSIDs	Main SSID at 2.4Ghz and 5GHz 4 Guest SSIDs Both At 2.4GHz and 5GHz
Max Terminal Linked	32 at both 2.4GHz and 5GHz
Operation Temperature	0°c ~ 45°c
Storage Temperature	-40°c ~ 70°c
Operating Humidity	10% ~ 90% （Non-condensing）
Storage Humidity	5% ~ 90% (Non-condensing)
Package Contents	1HG9, 1 Power adapter, 1* Quick install guide, 1* RJ45 cable, 1* RJ11 cable
Certification	CE, FCC , RoHS,Anatel
