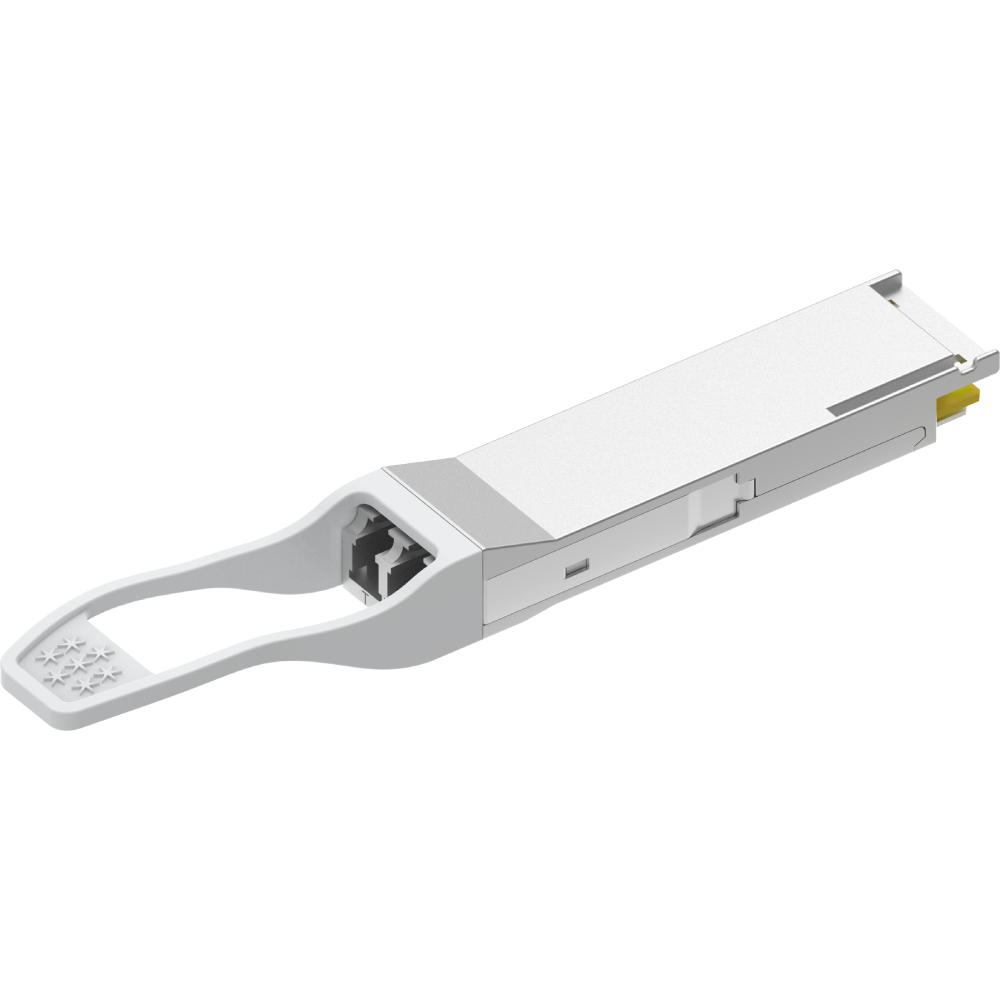

Optilink SFP 100G QSFP28 E-ZR4-100KM
Original price was: ₹155,000.00.₹139,999.00Current price is: ₹139,999.00.
- Hot-pluggable, full-duplex transceiver module packaged in QSFP28 form factor
- 4 channels LAN-WDM EML uncooled transmitter and APD ROSA
- Transmission rates of up to 25.78125Gbps or 27.95Gbps per channel
- Compliant with QSFP28 MSA, and 100GE Ethernet transport protocol
- Optional multi-rate versions compatible with 100G Ethernet and OTN OTU4
- Distance up to 60km (without FEC on) or 80km (with FEC on) using 1 pair of single-mode fibers
- Power consumption less than 6w
- Dual LC optical connectors
- Commercial operating temperature range
- Supply voltage 3.3V
- RoHS compliant (lead-free)
GIGALIGHT 100G QSFP28 ZR4 optical transceiver module is used for long-distance transmission in the field of data communication or telecom, and is compliant with 100G Ethernet transmission protocol, with optional dual-rate versions compatible with 100G Ethernet and OTN OTU4 transmission protocol. The product has a built-in pair of 4-channel LWDM MUX and DEMUX with center wavelengths of 1295.56nm, 1300.05nm, 1304.58nm and 1309.14nm, respectively, and uses a pair of single-mode fibers for transmission over distances up to 60km or 80km(with FEC on).
