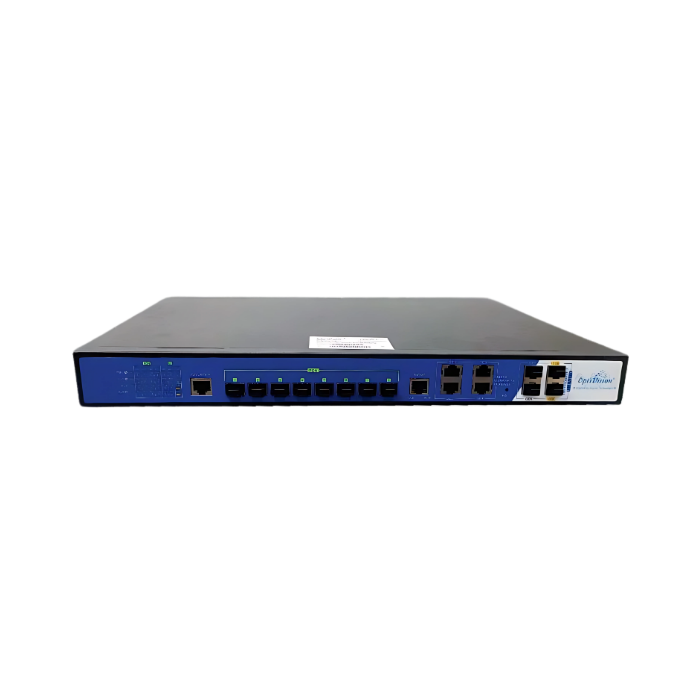

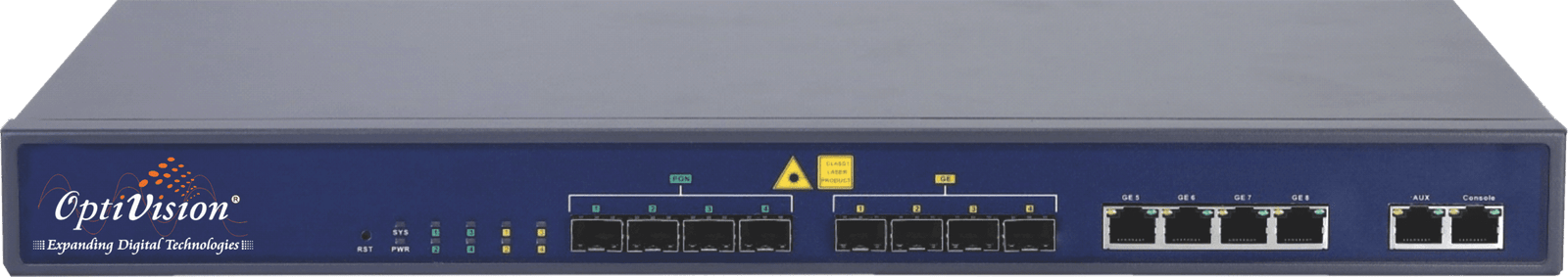

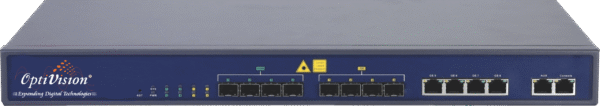

Optivision 4 PON Port Layer3 EPON OLT Fully Loaded ( OV-EO-04 )

Software Management Mode:
SNMP, Telenet, CLI, WEB, SSH V1/V2
Management Function:
Fan Group control.
Port Status monitoring and configuration management.
Online ONU configuration and management
User management, Alarm management;
Layer2 function : 16K Mac address; Support port VLAN and protocol VLAN; Support 4096 VLANs; Support VLAN tag/Untag, VLAN transparent transmission, QinQ. Support IEEE802.3d trunk; Support RSTP, MSTP; QoS based on port, VID, TOS and MAC address; IEEE802.x flow control; Port stability statistic and monitoring; Support P2P Function;
Multicast : IGMP snooping; 256 IP Multicast Groups;
Layer 3 Feature : Support static route; Optional Support Dynamic route RIP v1/v2 RIPng
Optional Support OSPF v2/v3; Support PPPoE/PPPoE+
Security Management :
Support IPv6 Neighbor Discovery
,SLAAC Snooping
Support DHCPv6 Server, DHPCv6 Relay, DHCPv6 Snooping
Support IPV6 Static Route
Support IPV6 Dynamic Route Protocol: RIPng, OSPF6
Support
MLD V1/V2
Support IPv6 ACL
Support IPv6 SNMP,Telnet,Https,SSH management
