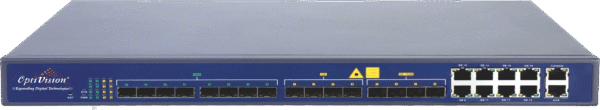

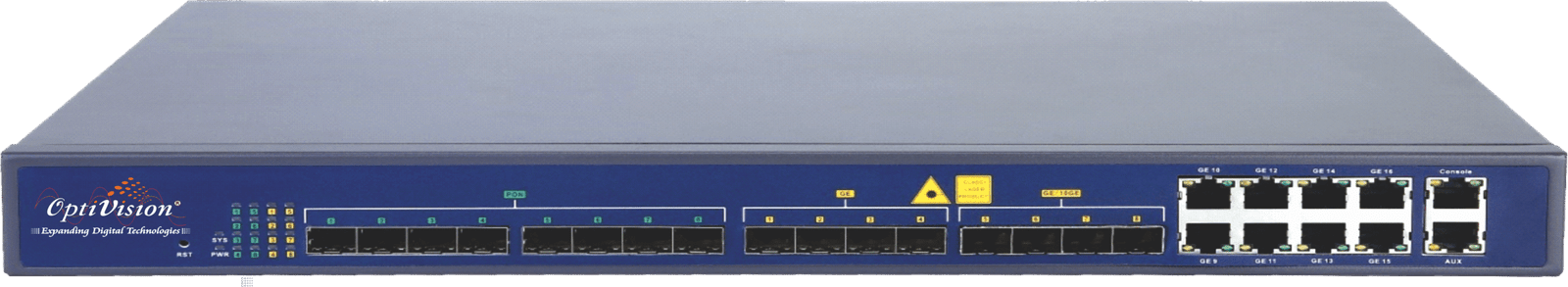

Optivision OV-EO-08 8 PON Port Layer3 EPON OLT Fully Loaded with Dual Power Supply

Optivision OV-EO-08 8 PON Port Layer3 EPON OLT Fully Loaded

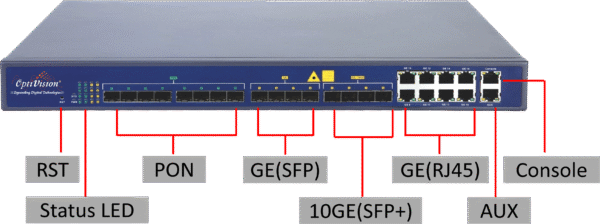

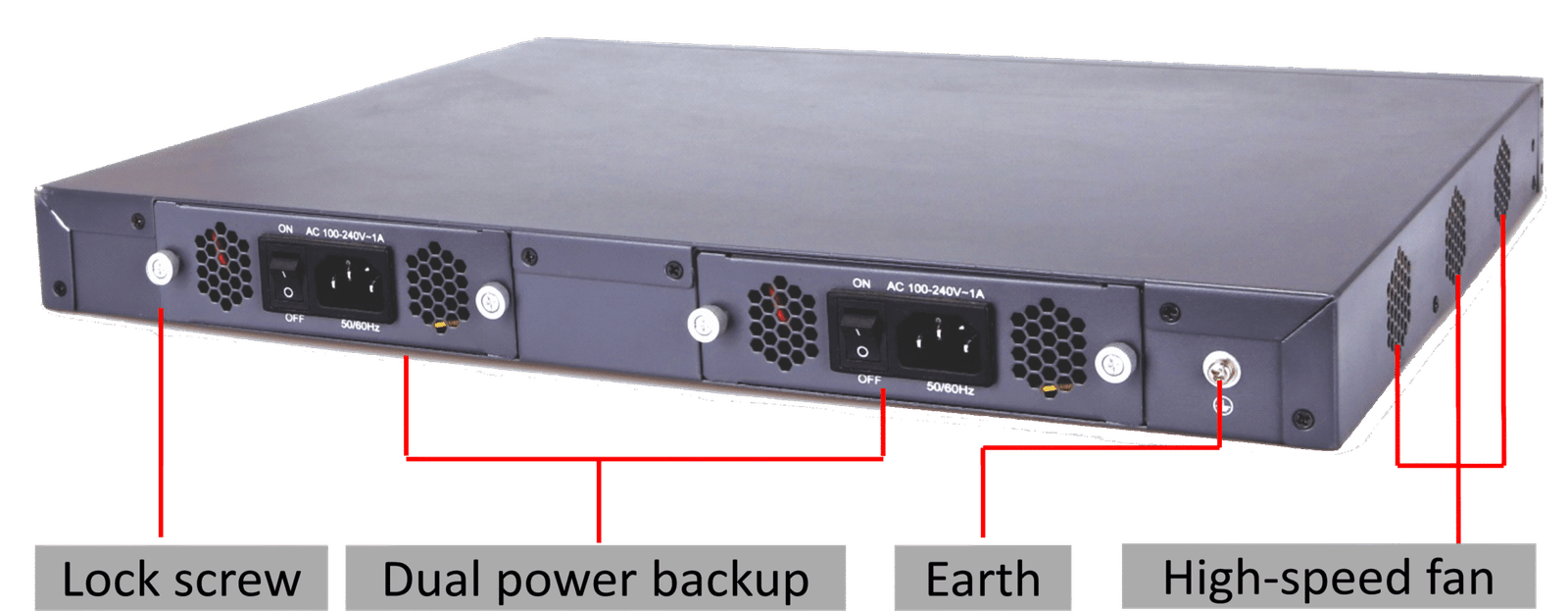

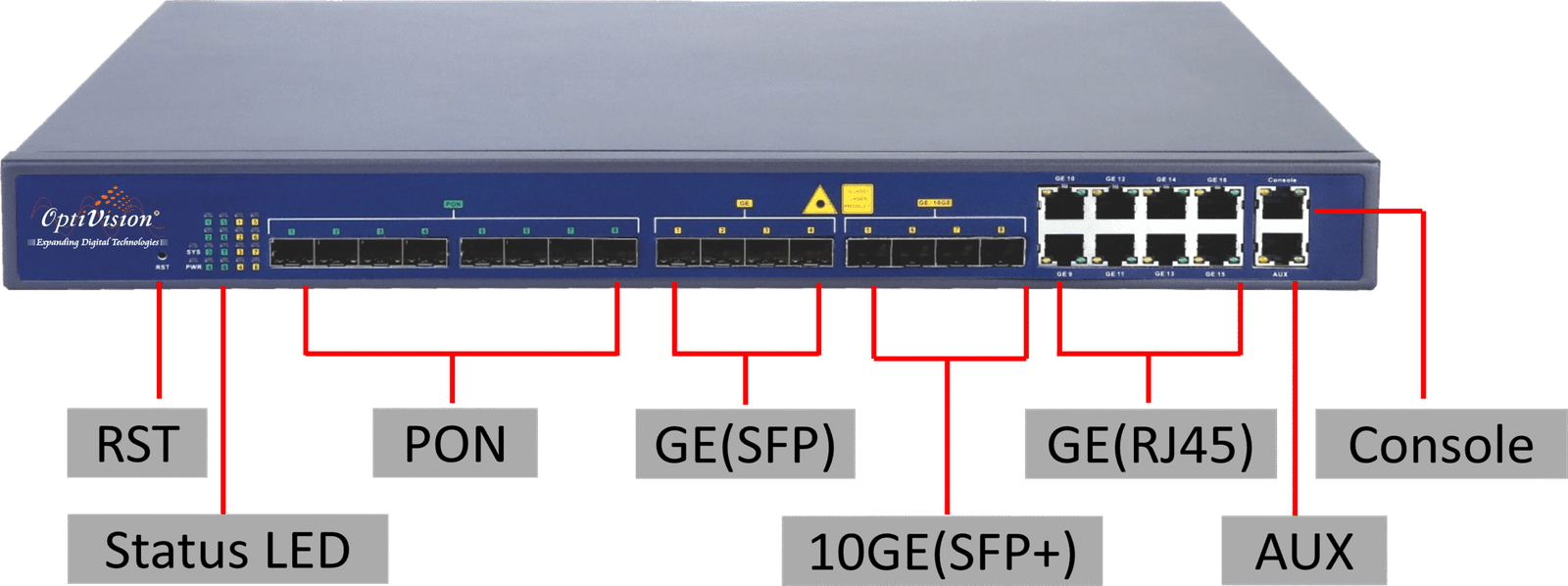

The Optivision OV-EO-08 EPON OLT is a high-performance Layer3 optical line terminal designed for reliable and scalable fiber network deployments. Featuring a compact 1U design, this EPON OLT comes fully loaded with 8 PON ports and a dual power supply for maximum stability and redundancy.

Built on a mainstream chip scheme, the OV-EO-08 supports seamless interoperability with any brand of ONU. It provides user-friendly management via EMS, Web, Telnet, CLI, and SSH, ensuring easy configuration and monitoring. The system meets IEEE802.3ah and all relevant EPON standards, making it a future-ready networking solution.

For Layer2 functions, it supports 16K MAC addresses, 4096 VLANs, VLAN tag/untag, QinQ, RSTP, MSTP, QoS based on port/VID/MAC, and port isolation. It also offers powerful multicast handling with IGMP snooping and up to 256 multicast groups.

On Layer3, this EPON OLT supports static routing and optional dynamic routing protocols like RIP v1/v2, RIPng, and OSPF v2/v3. Advanced IPv6 features, ACL, DHCPv6, SNMP, Telnet, HTTPS, and SSH management ensure security and performance.

Ideal for ISPs, enterprises, and network providers, the Optivision OV-EO-08 EPON OLT guarantees stable, flexible, and secure fiber access solutions.

Specifications Table:
