Secureye 4 Port Layer3 EPON OLT Unloaded (S-OLT-EPON-4OLT-L3D)

Name: Secureye 4 Port Layer3 EPON OLT Unloaded (S-OLT-EPON-4OLT-L3D)
Brand: TechPotli
SKU: 24419
Price: 25999 INR
Availability: InStock
Rating: 5 (1 reviews)

Original price was: ₹35,999.00.Current price is: ₹25,999.00.

4*EPON Port, 4*GE(RJ45) Port and 4*10GE(SFP+) Port. It can support 256 ONU under 1:64 splitter ratio
In compliant with IEEE802.3ah Standard
Up to 20KM transmission Distance
Support data encryption, group broadcasting, port Vlan separation, RSTP, etc.

Compare

Description
Reviews (0)

Products Overview:

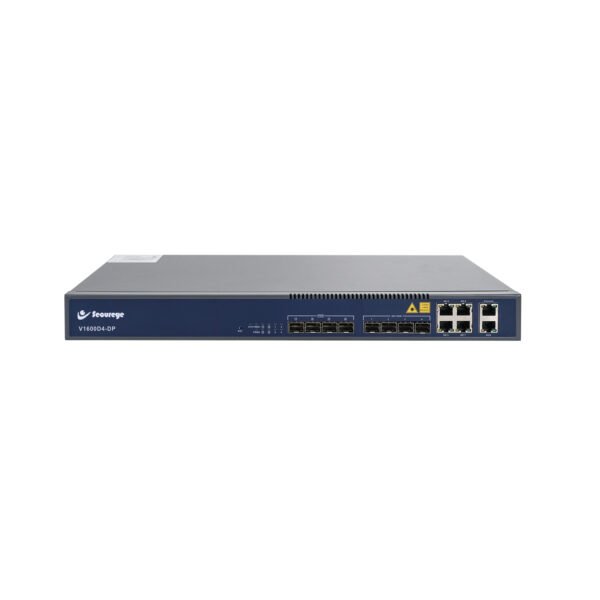

S-OLT-EPON-4OLT-L3D EPON OLT product is a 1U chassis device with L3 function developed by Secureye. It complies with IEEE802.3ah standard, compatible with mainstream brand ONU access, easy to build EPON network flexibly and efficiently. It is smart, easy to deploy, and high performance, meeting the performance and volume requirements of users in different environments, and It also supports rich operation and maintenance tools such as EMS, WEB, Telnet, SSH and mobile APP, provides users with stable, efficient and value-added network access services. The product is suitable for “Triple-Play”, CPN, IP Camera, Enterprise LAN and IOT applications.

Satisfactory standard

Meet IEEE802.3ah standards
Support IPv6 Function

Support DN, IPv6 Ping, IPv6 Telnet
Support ACL based on source IPv6 address, destination IPv6
address, L4 port, protocol type, etc.
Support MLD v1/v2 snooping
IP route

Support static route, dynamic route RIP v1/v2、OSPF v2(optional)
Easy to manage

Friendly EMS/Web/Telnet/CLI/SSH management
CLI command style similar to mainstream manufacturers
Support APP management
Fully open platform

Open to any brand of ONU
High performance cost

1U height compact design
Adopt mainstream chip scheme

Specifications

Chassis
Rack	1U 19 inch standard box
1G, 10G uplink Port
QTY	8
1G copper port auto-negotiable(RJ45)	4
SFP 1GE / SFP+ 10GE	4
EPON Port
QTY	4
Physical Interface	SFP Slot
Connector Type	PX20+
Max splitting ratio	1:64
PON Port Specification (PX20+ module)
Transmission Distance	20KM
EPON port speed	Upstream 1.25G, Downstream 1.25G
Wavelength	TX 1490nm, RX 1310nm
Connector	SC/UPC
Fiber Type	9/125μm SMF
TX Power	+2~+7dBm(PX20+)
Rx Sensitivity	-30dB(PX20+)
Saturation Optical Power	-6dBm
Dimension(LWH)	44220043
Weight(kg)	3.2
Power Supply	AC 100～240V, 47/63Hz
Power Supply	DC -48V
Double Power Module	√√
BBU(Battery Backup Unit)	X √
Max Power Consumption	30W
O p e r a t i n g Environment:
Working Temperature	0～+50℃
Storage Temperature	-40～+85℃
Relative Humidity	5~90%(non-conditioning)
Overview
Satisfactory standard	Meet IEEE802.3ah standards
Support IPv6 Function	Support DN, IPv6 Ping, IPv6 Telnet Support ACL based on source IPv6 address, destination IPv6 address, L4 port, protocol type, etc. Support MLD v1/v2 snooping
IP Route	Support static route, dynamic route RIP v1/v2、OSPF v2(optional)
Easy to Manage	Friendly EMS/Web/Telnet/CLI/SSH management CLI command style similar to mainstream manufacturers Support APP management
Fully Open Platform	Open to any brand of ONU
High performance cost	1U height compact design Adopt mainstream chip scheme
