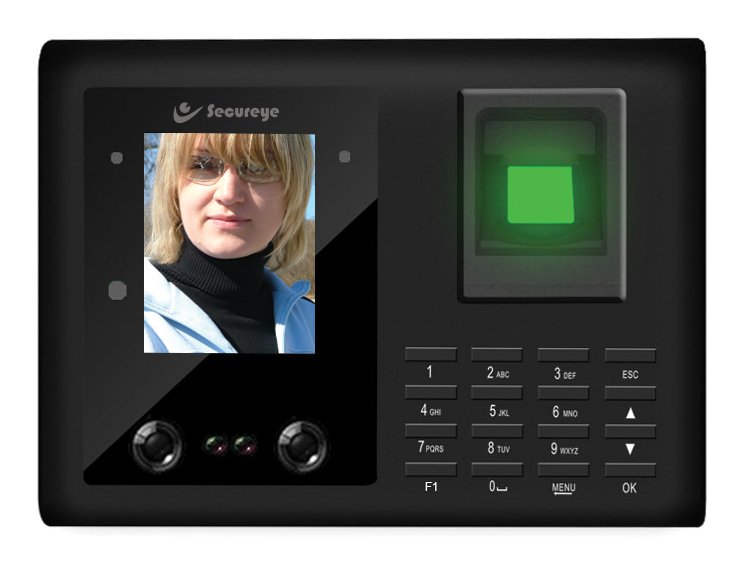

Key Features
- 600 DPI High Resolution Optical Sensor
- Supports Access Control
- Communication TCP/IP/Wi-fi(Optional)/RS485/3G
General | |
CPU | 32bit CPU |
Camera | Resolution Infrared Camera |
Fingerprint Scanner | 600 DPI Optical sensor |
USB disk | Yes |
ID card support | Yes |
LCD | 6.1cm (2.4) TFT LCD |
LED | 1 (Red-Green dual color) |
Keyboard | 16 keys |
Communication interface | Standard with TCP/IP(10/100Mbps) |
Finger Touch Sensor | Yes |
Voice output | Yes |
RTC | Yes |
Face Capacity | 1000 |
Fingerprint Capacity | 5000 |
Identify mode | Face / Fingerprint / Card / Password |
Door open function | Yes |
USB disk up/download | Yes |
FAR/ FRR (Fingerprint) | 0.00001/ 0.1(%) |
Matching speed | ≤1.0 second (enrolled 5000 finger) |
Log record | 300000 |
Allowable finger rotation | 360° (all direction) |
Intelligent adaptation | Yes |
FP identification mode | 1:N |
FAR/ FRR (Face) | 0.001/ 1(%) sec |
Face identify speed | ≤ 1.5 sec |
Face intelligent adaption function | Support |
Face matching mode | 1:N |
Operating Voltage | DC 5V 5%(current : below 0.7A) |
Battery Backup | Yes (Optional) |
Humidity | 20% ~ 80% |
Temperature | -10°C ~ 60°C |
