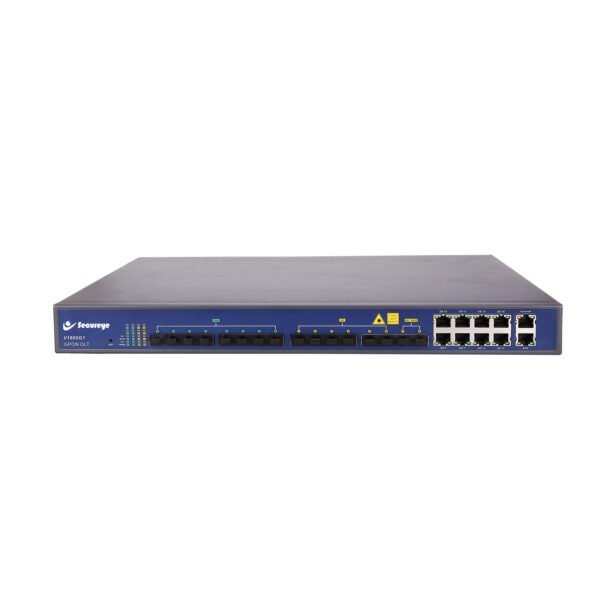

Secureye GPON OLT S-OLT-GPON-8 PORT +4*PON SFP UPLINK 9db-L3S

Secureye GPON OLT S-OLT-GPON-8 PORT +4*PON SFP UPLINK 9db-L3S

Name: Secureye GPON OLT S-OLT-GPON-8 PORT +4*PON SFP UPLINK 9db-L3S
Brand: TechPotli
SKU: 20530
Price: 71999 INR
Availability: InStock
Rating: 5 (1 reviews)

Original price was: ₹85,000.00.Current price is: ₹71,999.00.

8 PON PORTS GPON OLT

Compare

Categories: GPON OLT, GPON/EPNO, OLT -GPON / EPON Tags: 4 PORT GPON, 4PORT, 8 PON Ports, EPON LT, epon olt, GEPON, GOPON, GPON, gpon olt, OLT, OLT ONT, OLTONU, ONT, XPN OLT Brand: Secureye

Description
Reviews (0)

Key Features

8 GPON ports, supports 1024 ONUs
1U 19 inch rack mount, flexible deployment
8 Gigabit RJ45 uplink ports, 6 Gigabit SFP uplink ports and two 10G SFP+ ports by extension module (optional).
Supports EMS/Web/Telnet/CLI/SSH management modes to facilitate centralized management.
Dual power supply backup to ensure reliable operation of equipment

Chassis
Rack	1U 19 inch standard box
1G/10G Uplink Port
QTY	8
1G Copper auto-negotiation(RJ45)	4
SFP 1GE	2
SFP+ 10GE	2
GPON Port
Physical Interface	SFP Slot
Connector Type	Class C+
Max splitting ratio	1:128
Management Ports
Management Ports	110/100BASE-T out-band port, 1CONSOLE port
PON Port Specification(Class C+ module)
Transmission Distance	20KM
GPON port speed	Upstream 1.244G, Downstream 2.488G
Wavelength	TX 1490nm, RX 1310nm
Connector	SC/UPC
Fiber Type	9/125μm SMF
TX Power	+3～+7dBm
Rx Sensitivity	-30dBm
Saturation Optical Power	-12dBm
Dimension(LWH)	44222043.6mm
Weight	3.1kg
AC Power Supply	AC:100～240V, 47/63Hz
DC Power Supply(DC:-48V)	√
Double Power Module Hot Backup	√
Power Consumption	45W
O p e r a t i n g Environment:
Working Temperature	0～+50℃
Storage Temperature	-40～+85℃
Relative Humidity	5～90%(non-conditioning)
Overview
Satisfactory standard	Meet ITU-T G984/G.988 standards
L3 OLT	Support static route RIP v1/v2、OSFP v2(optional)
Fully Open Platform	Open to any brand of ONU
Easy to Manage	Friendly EMS/Web/Telnet/CLI/SSH management CLI command style similar to mainstream manufacturers
High performance cost	1U height compact design Adopt mainstream chip scheme
Management Mode	SNMP, Telnet, CLI, WEB
Management Function	Fan Group Control; Port Status monitoring and configuration management; Online ONT configuration and management; User management; Alarm management;
Layer2 Switch	16K Mac address; Support 4096 VLANs; Support port VLAN and protocol VLAN; Support VLAN tag/Un-tag ,VLAN transparent transmission; Support VLAN translation and QinQ; Support storm control based on port; Support port isolation; Support port rate limitation; Support 802.1D and 802.1W; Support static LACP; QoS based on port, VID, TOS and MAC address; Access control list; IEEE802.x flow control; Port stability statistic and monitoring;
Multicast	IGMP snooping; 256 IP Multicast Groups;
DHCP	DHCP server; DHCP relay; DHCP snooping;
GPON Function	Tcont DBA; Gemport traffic In compliant with ITUT984.x standard; Up to 20KM transmission Distance; Support data encryption, multi-cast, port VLAN, separation, RSTP, etc; Support ONT auto-discovery/link detection/remote upgrade of software; Support VLAN division and user separation to avoid broadcast storm; Support power-off alarm function, easy for link problem detection; Support broadcasting storm resistance function; Support port isolation between different ports; Support ACL and SNMP to configure data packet filter flexibly; Specialized design for system breakdown prevention to maintain stable system; Support RSTP,IGMP Proxy;
Layer 3 Route	ARP proxy Static route 1024 hardware Host Routes; 512 hardware Subnet Routes;
EMS Key Features	Support C/S & B/S architecture Support auto topology or modify manually Add Trap Server to detect ONU automatically EMS can add and configure ONU automatically Add ONU position information Support EMS APP
