Secureye 8 PORT LAYER3 EPON OLT UNLOADED (S-OLT-EPON-8OLT-L3D)
Original price was: ₹56,000.00.₹46,999.00Current price is: ₹46,999.00.
- 8*EPON Port, 8*GE(RJ45) Port, 4*1GE(SFP) Port and 4*10GE(SFP+) Ports. It can support 512 ONU under 1:64 splitter ratio.
- Friendly EMS/Web/Telnet/CLI management
- Fully open platform
- High performance cost

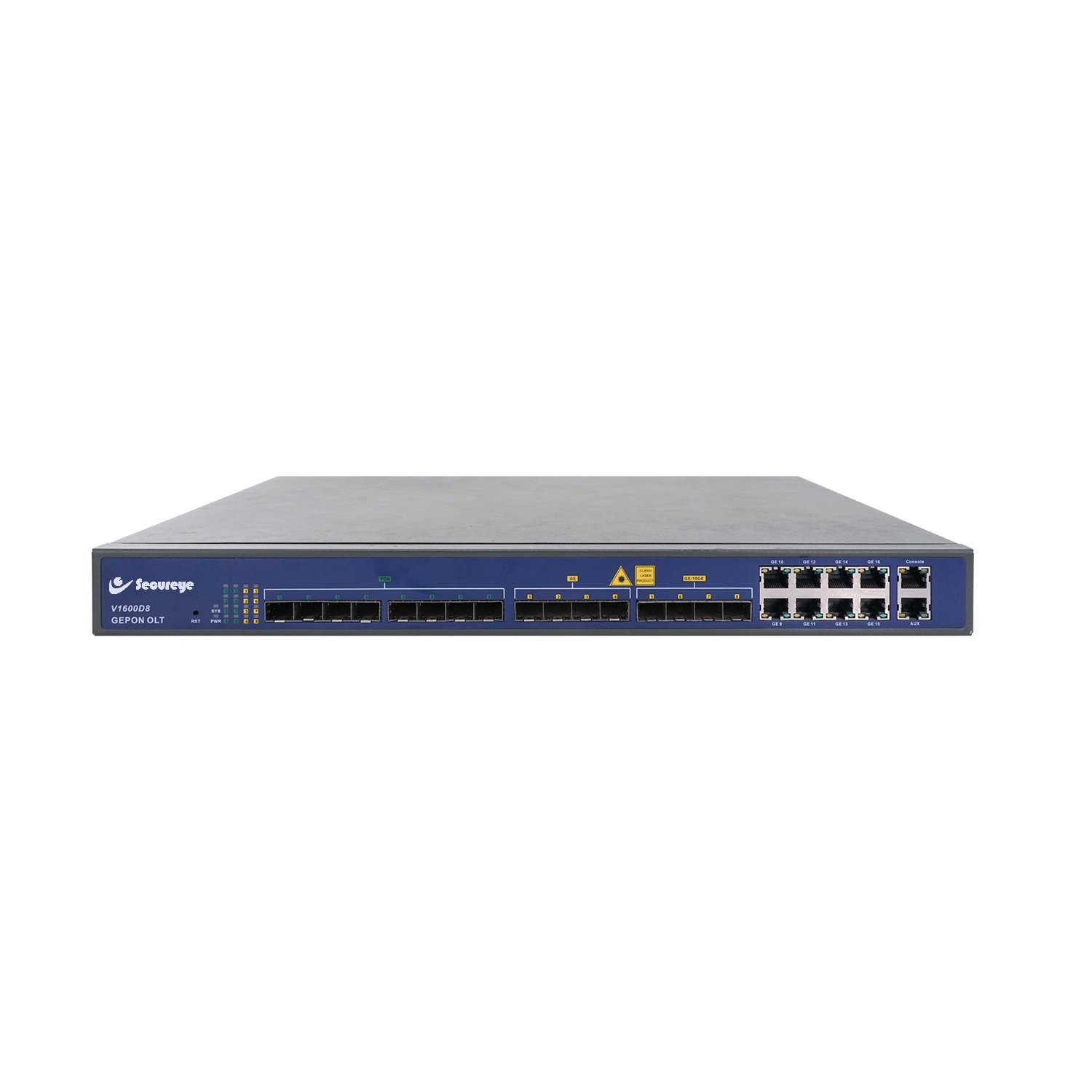

- S-OLT-EPON-8OLT-L3D EPONT OLT is 1U high 19-inch rack mount product.
S-OLT-EPON-8OLT-L3D EPONT OLT is 1U high 19-inch rack mount product. The features of the OLT are small, convenient, flexible, easy to deploy, and high performance. It is appropriate to deploy in a compact room environment. The OLT can be used for “Triple-Play”, CPN, IP Camera, Enterprise LAN and IOT applications. It is a high-performance product.
Satisfactory standard: Meet IEEE802.3ah standards
Support IPv6 Function:
Support DN, IPv6 Ping, IPv6 Telnet
Support ACL based on source IPv6 address, destination IPv6
address, L4 port, protocol type, etc.
Support MLD v1/v2 snooping
IP Route: Support static route, dynamic route RIP v1/v2、OSPF v2(optional)
Easy to Manage:
Friendly EMS/Web/Telnet/CLI/SSH management
CLI command style similar to mainstream manufacturers
Support APP management
Fully Open Platform: Open to any brand of ONU
High-performance cost
1U height compact design
Adopt a mainstream chip scheme
| Appearance | |
| Rack | 1U, 19 inch standard case |
| 1G/10G Uplink Port | |
| Quantity | 16 |
| 1G Copper Port Auto-negotiable(RJ45) | 8 |
| SFP 1G Interface | 4 |
| SFP+ 10G Interface | 4 |
| EPON Port | |
| Quantity | 8 |
| Physical Interface | SFP Slot |
| Module Type | PX20+、PX20++ |
| Max Splitting Ratio | 1:64 |
| Transmission speed | Up and Down Symmetrical 1.25Gbps |
| Management Interface | |
| Management Interface | 1*10/100M Ethernet out-of-band management port, 1*Console Port |
| Management Mode | |
| Management Mode | Support EMS Management Platform; Support Telnet、CLI、WEB、SSH; |
| Layer 2 Function | |
| Layer 2 Function | Support Port VLAN、Protocol VLAN; Support VLAN TAG/UNTAG, VLAN transform, VLAN transparent; Support 4096 VLAN; SupportIEEE802.3ad Link Aggregation; Support IGMP Snooping; Support RSTP; Support QoS based on port, VID, TOS and MAC address; SupportIEEE802.x Flow Control; Support Port stability statistic and monitoring; |
| PON Port Function | |
| PON Port Function | Conform to IEEE802.3ah International Standard; Support ONU Uplink and Downlink Speed Limiting Functions; Support ONU Auto-discovery/Link Detection/Remote Upgrade of Software; Support various LLID configuration and single LLID configuration; Support Broadcast Storm Suppression; Support Port Isolation Between Different Ports; Support ACL and SNMP to configure data packet filter flexibly; Support Dynamic Distance Calculation on EMS Online; Support Credit Time Control, CATV Management Special Function; |
| Dimension(L*W*H)(mm) | 442*320*43 |
| Weight(kg) | 4.5 |
| Power Input AC | 100～240V, 50/60Hz |
| DC | -48V or +12V |
| Dual Power Backup | Support |
| Max Power Consumption(W) | 55 |
| Environmental Requirement | |
| Operating Temperature | 0～+50℃ |
| Storage Temperature | -40～+85℃ |
| Relative Humidity | 5～90%(non-condensing) |
| Overview | |
| Satisfactory standard | Meet IEEE802.3ah standards |
| Support IPv6 Function | Support DN, IPv6 Ping, IPv6 Telnet Support ACL based on source IPv6 address, destination IPv6 address, L4 port, protocol type, etc. Support MLD v1/v2 snooping |
| IP Route | Support static route, dynamic route RIP v1/v2、OSPF v2(optional) |
| Easy to Manage | Friendly EMS/Web/Telnet/CLI/SSH management CLI command style similar to mainstream manufacturers Support APP management |
| Fully Open Platform | Open to any brand of ONU |
| High performance cost | 1U height compact design Adopt mainstream chip scheme |
