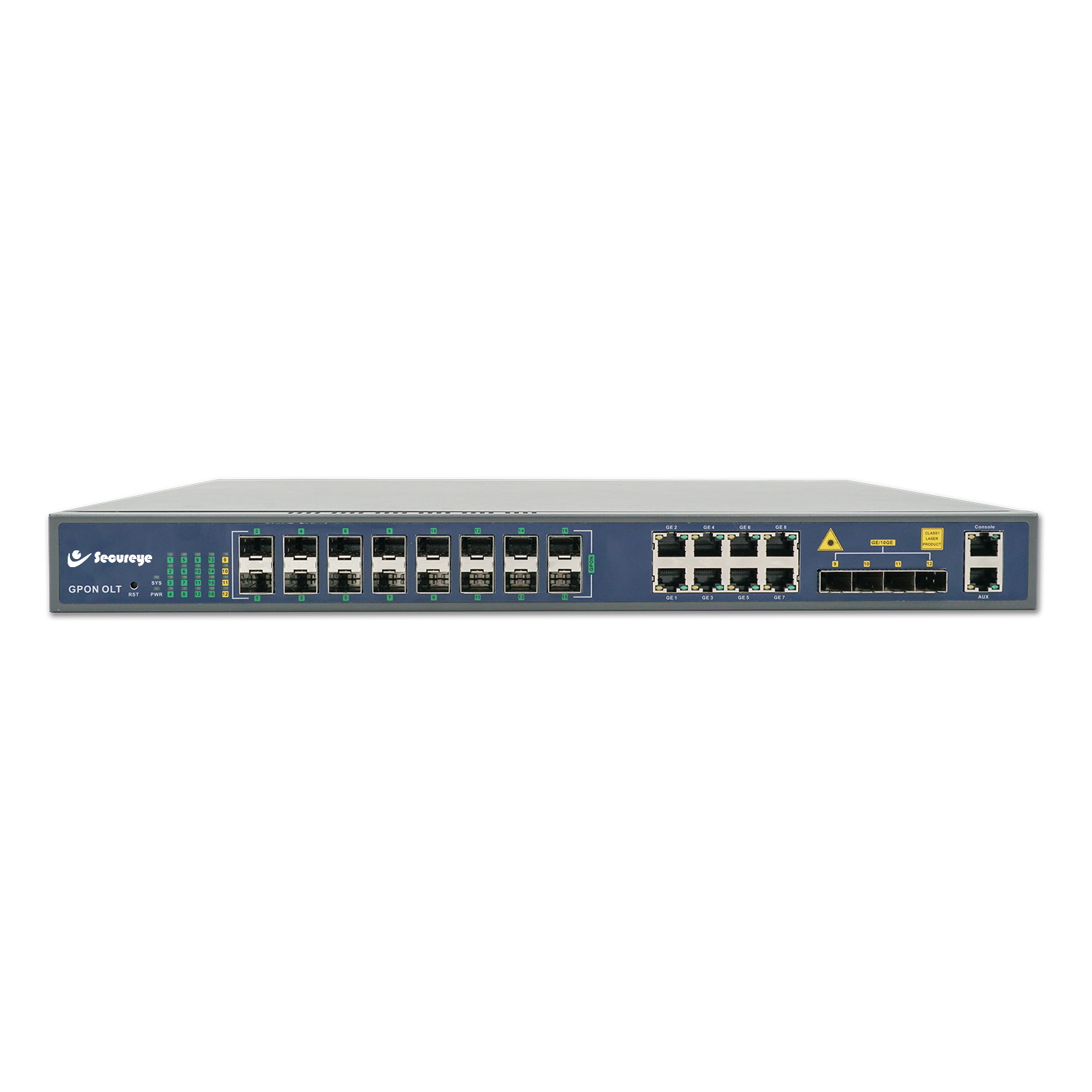

SECUREYE S-OLT-GPON-16 PORT OLT-L3
Original price was: ₹235,000.00.₹199,000.00Current price is: ₹199,000.00.
100 in stock
Compare- Description16 PON PORTS GPON OLT (Dual Power Supply)
- Model NoS-OLT-GPON-16OLT-L3D
- Key Features
- 16 GPON ports, supports 2048 ONUs
- 1U 19 inch rack mount, flexible deployment
- 8 Gigabit RJ45 uplink ports, 4 Gigabit SFP uplink ports and 4 10G SFP+ Uplink ports.
- Supports EMS/Web/Telnet/CLI/SSH management modes to facilitate centralized management.
- Dual power supply backup to ensure reliable operation of equipment
Specifications
Chassis Rack 1U 19 inch standard box 1G/10G Uplink Port QTY 12 1G Copper Port Auto-negotiable(RJ45) 8 SFP 1GE/SFP+ 10GE 4 GPON Port QTY 16 Physical Interface SFP Slot Connector Type Class C+ Max splitting ratio 1:128 Management Ports Management Ports - 1*10/100BASE-T out-band port, 1*CONSOLE port
PON Port Specification(Class C+ module) Transmission Distance 20KM GPON port speed Upstream 1.244G, Downstream 2.488G Fiber Type 9/125μm SMF TX Power +3~+7dBm Rx Sensitivity -30dBm Weight 4.5kg AC Power Supply AC:100～240V, 47/63Hz DC Power Supply(DC:-48V) (DC:-48V) √ Double Power Module Hot Backup √ Power Consumption 85W PON Port Specification (PX20+ module) Wavelength TX 1490nm, RX 1310nm Connector SC/UPC Saturation Optical Power -12dBm PON Port Function Dimension(L*W*H)(mm) 442*320*43.6mm O p e r a t i n g Environment: Working Temperature 0～+50℃ Storage Temperature -40～+85℃ Relative Humidity 5～90%(non-conditioning) Overview Satisfactory standard - Meet ITU-T G984/G.988 standards
L3 OLT - Support static route RIP v1/v2、OSFP v2(optional)
Fully Open Platform - Open to any brand of ONU
Easy to Manage - Friendly EMS/Web/Telnet/CLI/SSH management
- CLI command style similar to mainstream manufacturers
High performance cost - 1U height compact design
- Adopt mainstream chip scheme
Management Mode - SNMP, Telnet, CLI, WEB
Management Function - Fan Group Control;
- Port Status monitoring and configuration management;
- Online ONT configuration and management;
- User management;
- Alarm management;
Layer2 Switch - 16K Mac address;
- Support 4096 VLANs;
- Support port VLAN and protocol VLAN;
- Support VLAN tag/Un-tag ,VLAN transparent transmission;
- Support VLAN translation and QinQ;
- Support storm control based on port;
- Support port isolation;
- Support port rate limitation;
- Support 802.1D and 802.1W;
- Support static LACP;
- QoS based on port, VID, TOS and MAC address;
- Access control list;
- IEEE802.x flow control;
- Port stability statistic and monitoring;
Multicast - IGMP snooping;
- 256 IP Multicast Groups;
DHCP - DHCP server;
- DHCP relay;
- DHCP snooping;
GPON Function - Tcont DBA;
- Gemport traffic
- In compliant with ITUT984.x standard;
- Up to 20KM transmission Distance;
- Support data encryption, multi-cast, port VLAN, separation, RSTP, etc;
- Support ONT auto-discovery/link detection/remote upgrade of software;
- Support VLAN division and user separation to avoid broadcast storm;
- Support power-off alarm function, easy for link problem detection;
- Support broadcasting storm resistance function;
- Support port isolation between different ports;
- Support ACL and SNMP to configure data packet filter flexibly;
- Specialized design for system breakdown prevention to maintain stable system;
- Support RSTP,IGMP Proxy;
Layer 3 Route - ARP proxy
- Static route
- 1024 hardware Host Routes;
- 512 hardware Subnet Routes;
EMS Key Features - Support C/S & B/S architecture
- Support auto topology or modify manually
- Add Trap Server to detect ONU automatically
- EMS can add and configure ONU automatically
- Add ONU position information Support EMS APP
