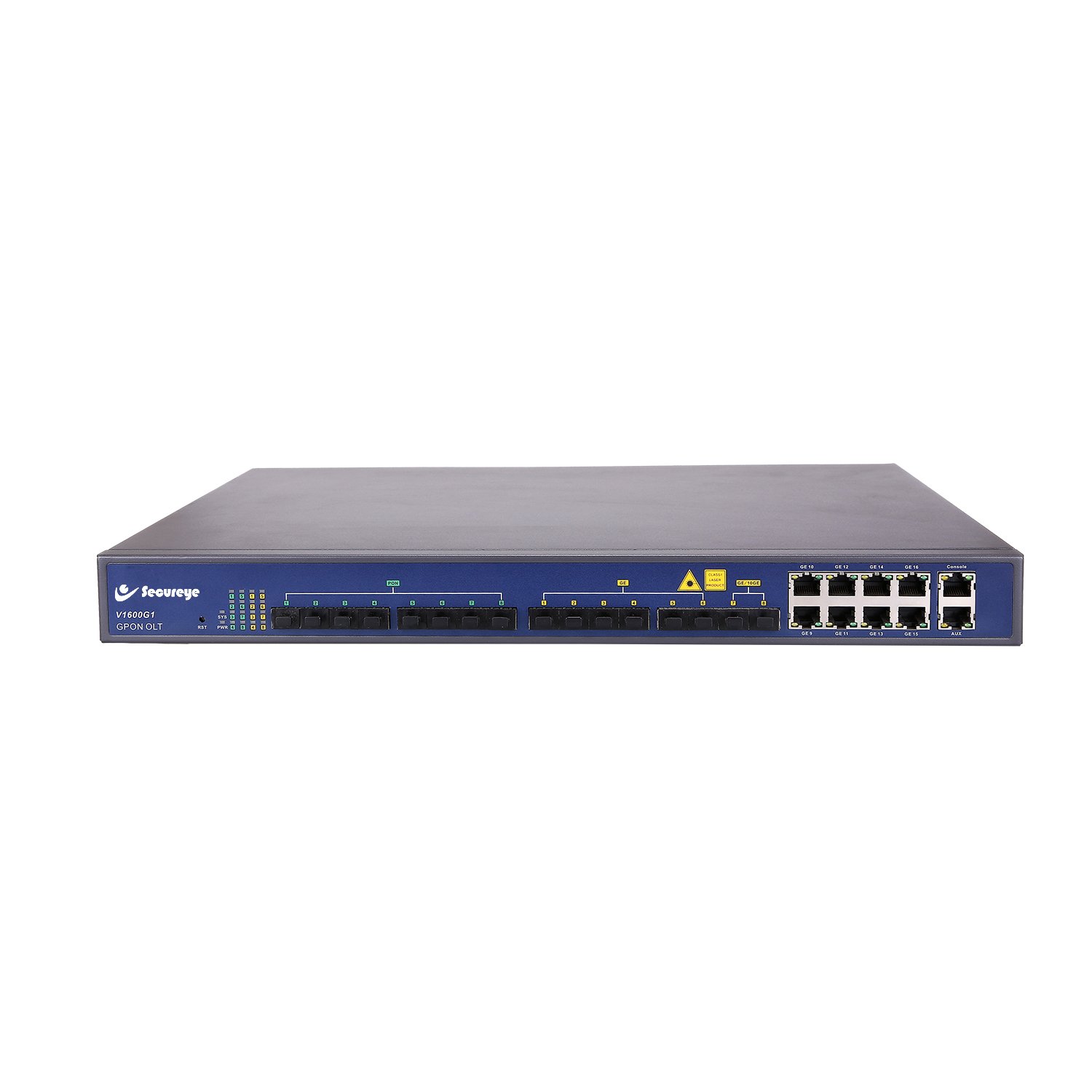

SECUREYE S-OLT-GPON-8PORT OLT-L3
Original price was: ₹115,000.00.₹99,999.00Current price is: ₹99,999.00.
100 in stock
Compare- Description8 PON PORTS GPON OLT
- Model NoS-OLT-GPON-8OLT-L3S
- Key Features
- 8 GPON ports, supports 1024 ONUs
- 1U 19 inch rack mount, flexible deployment
- 8 Gigabit RJ45 uplink ports, 6 Gigabit SFP uplink ports and two 10G SFP+ ports by extension module (optional).
- Supports EMS/Web/Telnet/CLI/SSH management modes to facilitate centralized management.
- Dual power supply backup to ensure reliable operation of equipment
Specifications
| Chassis | |
| Rack | 1U 19 inch standard box |
| 1G/10G Uplink Port | |
| QTY | 8 |
| 1G Copper auto-negotiation(RJ45) | 4 |
| SFP 1GE | 2 |
| SFP+ 10GE | 2 |
| GPON Port | |
| Physical Interface | SFP Slot |
| Connector Type | Class C+ |
| Max splitting ratio | 1:128 |
| Management Ports | |
| Management Ports | 1*10/100BASE-T out-band port, 1*CONSOLE port |
| PON Port Specification(Class C+ module) | |
| Transmission Distance | 20KM |
| GPON port speed | Upstream 1.244G, Downstream 2.488G |
| Wavelength | TX 1490nm, RX 1310nm |
| Connector | SC/UPC |
| Fiber Type | 9/125μm SMF |
| TX Power | +3～+7dBm |
| Rx Sensitivity | -30dBm |
| Saturation Optical Power | -12dBm |
| Dimension(L*W*H) | 442*220*43.6mm |
| Weight | 3.1kg |
| AC Power Supply | AC:100～240V, 47/63Hz |
| DC Power Supply(DC:-48V) | √ |
| Double Power Module Hot Backup | √ |
| Power Consumption | 45W |
| O p e r a t i n g Environment: | |
| Working Temperature | 0～+50℃ |
| Storage Temperature | -40～+85℃ |
| Relative Humidity | 5～90%(non-conditioning) |
| Overview | |
| Satisfactory standard | Meet ITU-T G984/G.988 standards |
| L3 OLT | Support static route RIP v1/v2、OSFP v2(optional) |
| Fully Open Platform | Open to any brand of ONU |
| Easy to Manage |
|
| High performance cost |
|
| Management Mode | SNMP, Telnet, CLI, WEB |
| Management Function |
|
| Layer2 Switch |
|
| Multicast |
|
| DHCP |
|
| GPON Function |
|
| Layer 3 Route |
|
| EMS Key Features |
|
