-19%

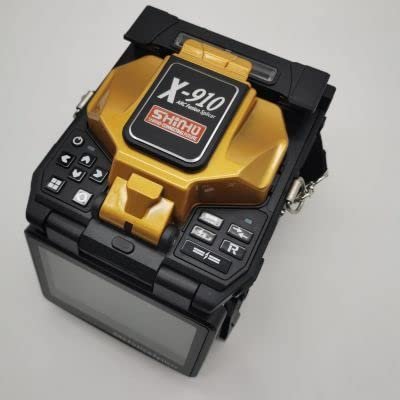

Shinho X-910 Core to Core Fusion Splicer – 6 Motors, Fully Automatic, 6s Splicing
Original price was: ₹135,000.00.₹110,000.00Current price is: ₹110,000.00.
| Function Type | Fully Automatic |
| Usage/Application | FTTH, Singal Fiber |
| Model Name/Number | 910B |
| Dimensions | 156mm(L) * 141mm(W) * 156mm(H) (including rubber armor) |
| Color | BLACK , BROWN |
| Type | Core to core |
Shinho X-910 Core to Core Fusion Splicer – 6 Motors, Fully Automatic, 6s Splicing
6 motors accurate core to core alignment
Identify fiber types(SM/MM) automatically
6 seconds splicing & 18 seconds heating
Automatic & real-time ARC calibration
Real-time heating temperature monitoring
Anti-shock, anti vibration, dustproof &waterproof
Apply to 250um/0.9mm/2.0mm/3.0mm fibers
Without reflective-mirror design,easy to maintain
SPECIFICATION
| Applicable fiber | SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655), EDFA, others(including G.657) |
| Diameter of cladding | 80 -150μm |
| Diameter of coating | 160-900μm |
| Typical splice loss | SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB |
| Return loss | ??? 60dB |
| Fibe cleaved length | 5-16mm ( coating diameter ??? 250um), 16mm (coating diameter:250-1000um) |
| Splicing program | 40 groups |
| Operate mode | Automatic/Manual |
| Auto-heating | Available |
| Typical splicing time | 6 seconds |
| Typical heating time | 18 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber magnification | 250X (X or Y view), 125X (X and Y view) |
| Display screen | 2 CMOS cameras, 5.0 inch color LCD monitor |
| Records storage | 5000 groups data and 100 groups image |
| Loss evaluation | Available |
| Tension test | >2.2N |
| Interface | GUI menu interface, easy for operation |
| Battery | 5200mAh Li-battery, typical 300 cycles splicing and heating, suppport separating charging, operating time more than 5 hours, discharging time more 8 hours |
| Power supply | Adapter, input: AC 220±30V(50/60HZ), output:DC 12±2V |
| Electrodes life | More than 5000 ARC discharges, can be replaced conveniently |
| Ternimal | USB2.0 port, for uploading splicer results and upgrading software |
| Operating conditions | Altitude: 0-5000m, Humidity: 0-95%,Operating Temperature: -25???~+50???, Storage temperature -40???~+80??????Wind speed: Max 15m/s |
| Dimension | 156mm(L) * 141mm(W) * 156mm(H) (including rubber armor) |
| Weight | 2.45kg (including battery |
Standard Accessiors
| NO. | ITEM |
| 1 | Carrying case |
| 2 | Fiber cleaver |
| 3 | Fiber stripper |
| 4 | Drop cable stripper |
| 5 | Power cord |
| 6 | Adapter |
| 7 | Cooling tray |
| 8 | User manual (USB) |
| 9 | Spare electrodes |
| 10 | Cleaning tool kit |
| 11 | Strap |
Core to Core Fusion Splicer
