Signal Fire AI-5 Optical Fiber Fusion Splicer

Signal Fire AI-5 Optical Fiber Fusion Splicer

Name: Signal Fire AI-5 Optical Fiber Fusion Splicer
Brand: TechPotli
SKU: 22789
Price: 49499 INR
Availability: InStock
Rating: 5 (1 reviews)

Original price was: ₹63,000.00.Current price is: ₹49,499.00.

Usage/Application	Splicing Fiber
Brand	Signal fire
Function Type	Fully Automatic

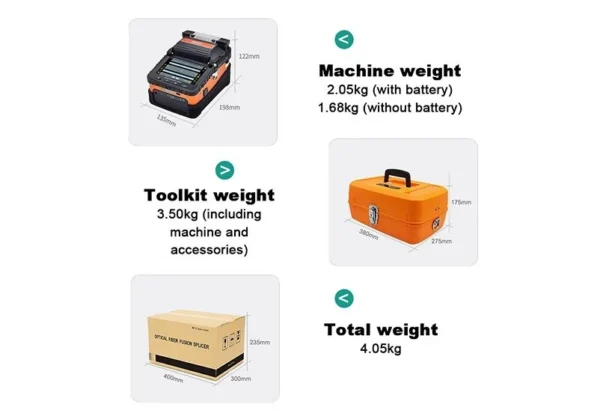

Dimensions	135mm x 198mm x 122mm
Internal Data Storage	Unlimited (Cloud Storage)
Deal In Machine Type	Artificial Intelligence Fully Automatic (Can Be Operate Manually)
Export Category	A++, Export to 120 Countries
Importer	Exclusively Import by FASTBALL in India
Price	Lowest Gauranted
Area Serve	PAN INDIA (NORTH,EAST,WEST,SOUTH)
Distributor	Available in Mumbai, Telangana, Kolkata, Delhi, Lucknow
Model	AI-5
motor	04
Splicing Type	Clad/Clad and Core/Core both
GPS	Available (latitude/longitude co-ordinates)
Locking facility	Available (Timewise Lock also Available)
Battery	5200mAH Lithium-ion
shock Proof	Yes
Dust Proof	Yes
Water Resistance	Yes
Drop Test	1.5 mtr
Body Type	Fully Metal Body (Design by Japanese)
Mobile App	Available (iOS/Android both)
Bluetooth	Available
Self Learning	Available (Complete Guide Available Foe Fresh Splicer)
Competitor	No Competiton in This Category (World Frist Artificial Intelligence Machine)

Compare

Categories: Fiber Testing Measurements Devices, SPLICING MACHINE Tags: AI-5 fiber jointing device, AI-5 fiber splicer, Buy Signal Fire AI-5 fusion splicer online, Core alignment splicing machine, fiber cable joint machine, Fiber cable jointing machine, Fiber fusion machine with touchscreen, Fiber Fusion Splicer, Fiber optic fusion splicer, Fiber optic splicing equipment, Fiber splicer dealer, Fiber splicer machine IndiaFiber splicer machine India, fiber splicing tool India, FTTH fusion splicer, FTTH splicer tool, FTTH tool supplier, Fusion splicer for fiber network, Fusion splicer for ISP, Fusion splicer for telecom, fusion splicer kit, Optical Fiber Splicing Machine, optical splicer, Portable fiber splicer, Signal Fire AI-5, Signal Fire AI-5 fusion splicing tool, Signal Fire distributor, Signal Fire fiber splicer, Signal Fire splicing machine supplier, SPLICING MACHINE, Splicing machine for BSNL, Splicing machine for BSNL / JioFiber, Splicing machine for JioFiber, Splicing machine for optical fiber Brand: Signal Fire

Description
Reviews (0)

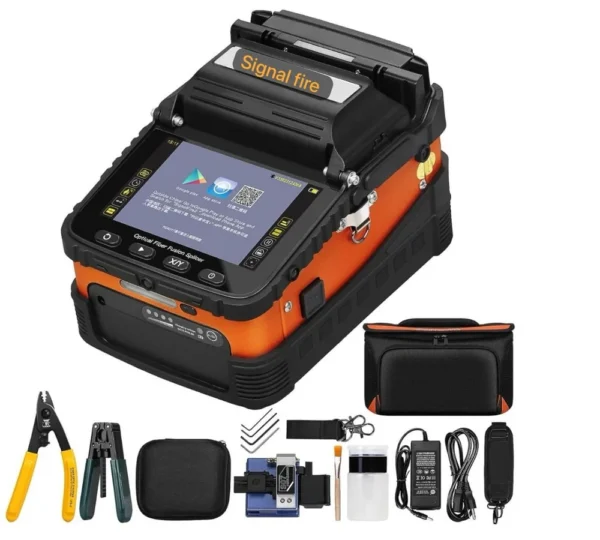

Signal Fire AI-5 Optical Fiber Fusion Splicer

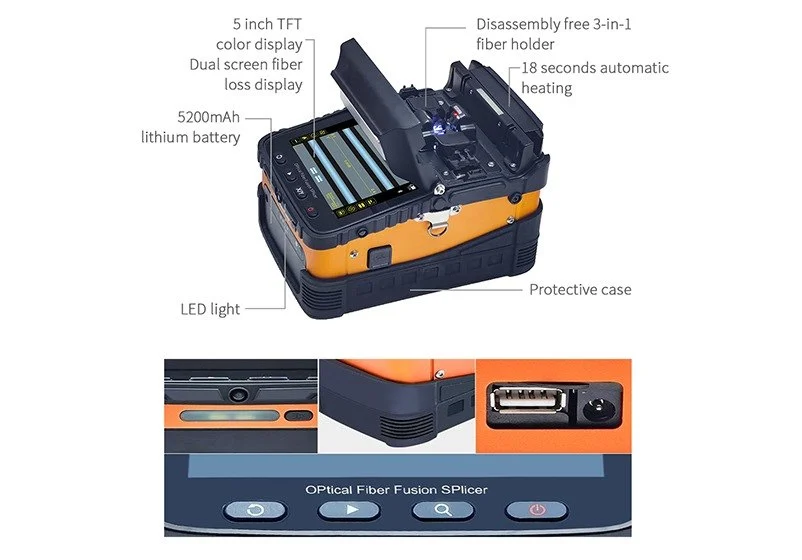

Signal Fire AI-5 is mainly suitable for security monitoring and other engineering projects. Adopting a 5-inch color screen, the operation graphics are simple and intuitive; Up to 320x focusing magnification, 8 second high-speed splicing, 18 second heating, with a 50% increase in work efficiency compared to ordinary fusion machines; The 5200mAh lithium battery can fuse and heat about 160 cells when fully charged. Its unique lighting design makes it convenient for night construction or emergency repairs.

Specifications:

Fiber Alignment	core/cladding
Motor Number	four motors (accurate of fiber alignment: 0.5um)
Splicing Time	8S
Heating Time	18S, can be customized according to the external environment
Applicable Fibers	single-mode fiber (SMF/G.652, BIF/G.657); Suitable for single mode, multi-mode, bare fiber, tail fiber, drop cable, jumper, invisible fiber fusion
Cladding Diameter	80~150um
Splicing Loss	0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS)
Splicing Mode	automatic focusing core alignment, conventional/high precision welding
Splicing Method	automatic, semi-automatic
Fiber Holder	3-in-1 fiber holder, no need to change, suitable for single/multi-mode, multi-core cable, 250um/900um/2mm/3mm/2*3mm flat drop cable
Battery Capacity	5200mAh large capacity lithium battery charging time≤3.5; It can continuously weld and heat about 160 cores
Magnification	320x (X or Y axis single display), 160x (X and Y axis dual display)
Fiber Diameter	cladding diameter: 80~150um, Coating diameter: 100~1000um
Fiber Cleave Length	coating less than 250um diameter: 8~16mm; coating between 250~1000um: 16mm
Tension Test	standard 2N
Heat Shrink Tube	25/40/50/60mm
Screen	5 inch TFT color display
Charge Mobile Device	the USB port can charge mobile devices such as mobile phones
Boot Time	1s, boot can enter the working mode
Data Storage	unlimited, machine storage: 1,000 groups, the excess part can be stored in the server, which can export data.
Wireless Communication	based on Bluetooth 4.2 protocol standard, working band: 2.4GHz, maximum transmission range: 60m
Software Upgrade	mobile phone APP internet update, enable Bluetooth synchronization upgrade machine software
Management Function	the machine owner can be bound as the highest authority, and can remotely view the welding records, welding time, loss, etc. Through the mobile phone APP. The number of welding times or working time of the machine can be set. The manager can effectively manage a single or multiple machines.
Interface	USB2.0 (Type A) can be used to connect external LED lights and charge mobile devices
Return Loss	better than 60dB
Protection	waterproof, dustproof and shock-resistant

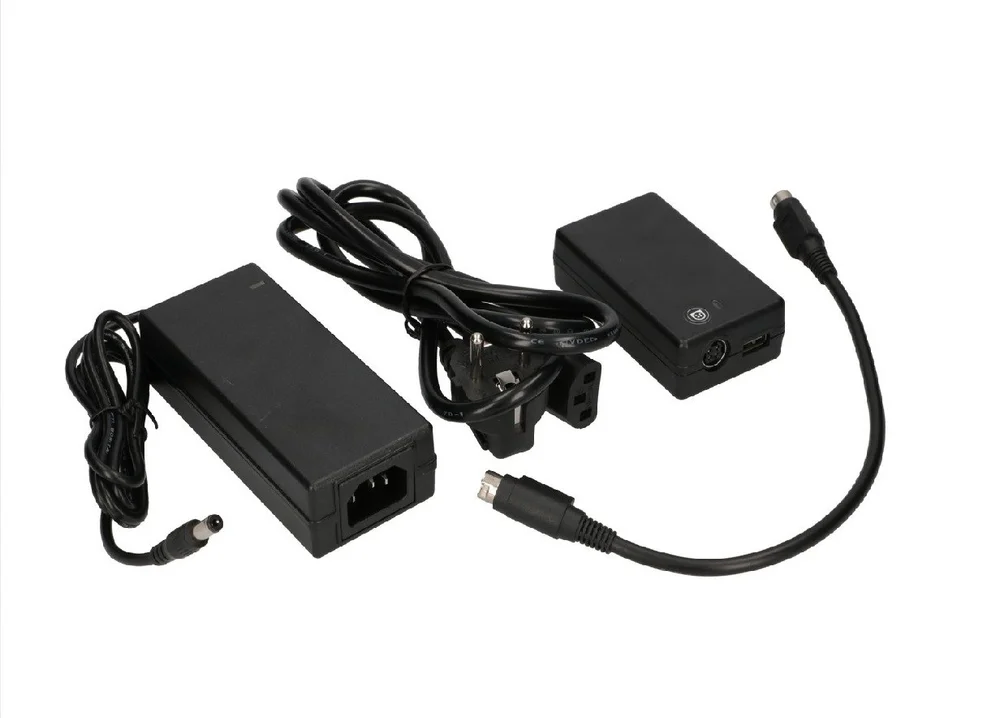

Power Supply	input: 100～240VAC 50/60Hz, output: 13.5VDC/4.8A, the current power mode can be identified, real-time monitoring of current battery level
Operation Conditions	-15～+50℃, 0～95%RH (humidity), 0～5000m (altitude), max. Wind speed: ≤15m/s
