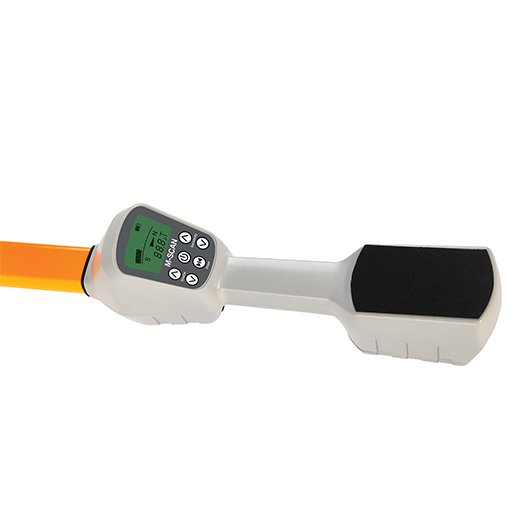

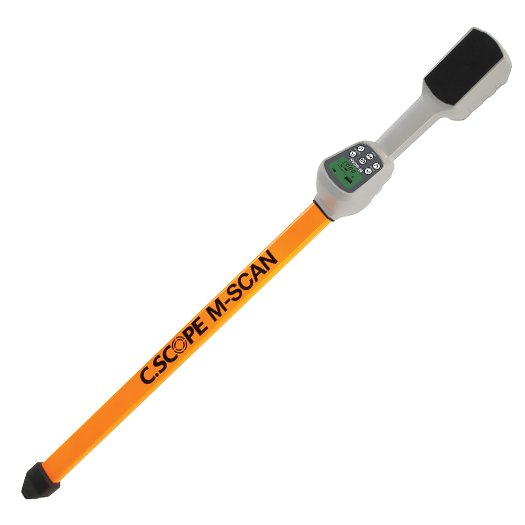

With a built in LCD display, the instrument provides a Multi segment bar graph indication with Polarity indicator and Zero field crossing indicators. The MSCAN Magnetometer can locate both vertical and horizontal ferrous objects placed in the ground.
Specification
Detection Depth Range | 5 m (dependent on site conditions) |
Mains/ Line Detection | Visual warning of 50-60 Hz electric field |
Erase Function | Background masking function allowing detection work near ferrous material |
Sensitivity | 4 levels of adjustment |
Detection Resolution | 20nT |
Controls | Volume, Sensitivity, On/Off and Erase |
Display | Numeric indication of signal amplitude, Multi segment bar graph, Polarity indicator, Zero field crossing indicators, Battery level and 50-60 Hz electric field warning |
Sound | 8 volume levels, including mute. Frequency (pitch) varies with signal amplitude In-built loudspeaker plus 3.5mm jack socket for standard headphones. |
Sensor Spacing | 0.5m |
Overall Length | 1.09m |
Sensor Tube Length | 0.73 m |
Case Construction | Heavy duty high impact ABS (Water and dust resistant to IP65) |
Sensor Tube Construction | Epoxy sandwich coated aluminium (Waterproof and dust resistant to IP66) |
Tip Protector Construction | Heavy duty thermoplastic elastomer |
Batteries | Eight 1.5V Cells, type AA, LR6, or equivalent. Alkaline cells recommended Compatible with NiMH rechargeable batteries 100 hours battery life typical intermittent use 4 segment visual bar Battery Indicator |
Weight | 1.3 kg (with batteries) |
Operating Temperature | -20 to +50ºC |
Storage Temperature | -30 to +70ºC (batteries should be removed for storage at extremes of temperature) |
Carry Bag | Protective shoulder carry case |
