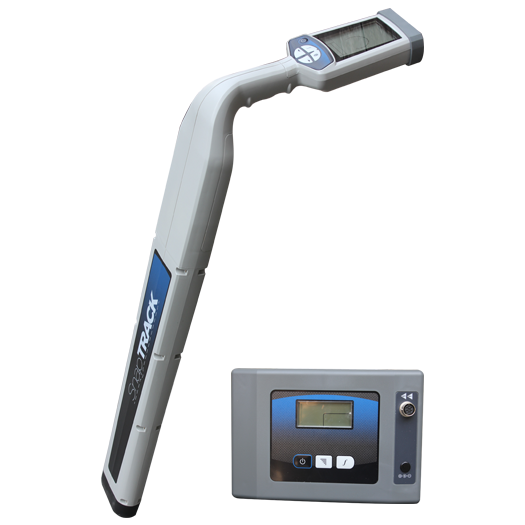

Stanlay STLOC3 Buried Pipe Cable Route Locating Equipment
Original price was: ₹90,000.00.₹80,000.00Current price is: ₹80,000.00.
Stanlay Pipe Cable Locating equipment are for locating, avoidance & route tracing of buried metallic utilities with ease of operation
The STLOC3 is a proven instrument for locating and route tracing of utilities in the most demanding of locating environments
- Locating buried energized cables or metallic pipes in Power or RF mode.
- To Route tracing in complex utility environments typical of metro environments
- Medium to long runs of cable or pipe
- Left right arrow guidance.
- Compass for orientation of utility.
- Depth measurement.
- Gain control.
- Relative & Actual signal strength indication.
- Variable Audio Pitch.
- Current Measurement.
- Automatic impedance matching from 5 ohms to 25000 ohms.

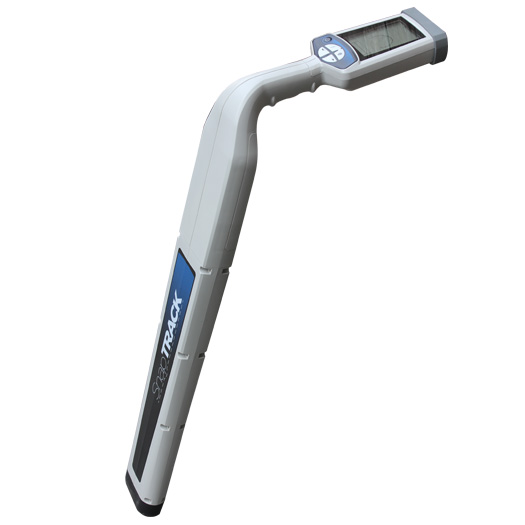

Pathï¬nder STLOC3 Precision Pipe Cable Locating Receiver, Technical Speciï¬cations:
Parameters | STLOC3 |
Available Operating Frequencies | Upto 13 active frequencies: 512Hz, 640Hz, dFF, 815Hz, 4Hz, 8Hz, |
Passive Modes | 50Hz & 60Hz Live Sound; Radio Frequency & Rectiï¬ed CP |
Antenna Mode | Simultaneous peak/null (dual horizontal antennas & vertical antenna), pin-point peak (dual horizontal ectional guidance, peak (single horizontal antenna) & null (single vertical antenna) |
Display Indicators | Backlit segmented LCD bar graph, battery condition, continuous mode signal strength, depth measurement, line orientation, left /right line guidance, operating mode, volume level & function indicators |
Navigation features | Left Right Arrow, Compass Mode for Orientation, for cable Route & Identiï¬cation |
Push Button Selection | 5 Buttons for Power, Frequency, Mode selection, Depth, Gain or Up & Down |
Audio Indication | Variable pitch & LiveSound 4 volume selections including mute |
Additional guidance indication | Vibrating handle |
Current Measurement | Display indicates relative current |
Display | Large LCD Display, Backlit, (4” Diagonal, 2.5” x 3.1”) |
Power Source | 6 “C” batteries (Optional Rechargeable) |
Battery Life | Continuous: 30 hours; Intermittent: 82 hours |
Signal Strength | LCD bar graph, absolute signal strength 0-999 |
Gain Control | Manual gain adjustment & automatic centering |
Dynamic Range | 126 dB |
Depth Measurement | DIGITAL: 3-digit LCD readout .02m-10.6m | Optional: 20m MANUAL: 45o triangulation method |
Units | Metric / Imperial, based on user selection |
Live Measurement | Depth & Current, simultaneous at user option |
Operating Temperature | -20º C to +55º C |
Dimensions | 77cm x 24cm |
Weight | 1.9 kg ± 0.1 kg |
Environmental | IP65 |
Optional features*: | |
Datalogging | >=10000 datalogs (2GB SD Card) or higher |
GPS | Breadcrumb data captured automatically every 7 seconds. Additionally, Speciï¬c locations can be logged based on user selection. |
Communication | 2GB Or higher SD Card, Mini USB Port |
Wireless Communication | Bluetooth |
Optional feature** | Pathlink: enables the user to remotely control the transmitter using the receiver. The frequency and power output of the transmitted signal can be controlled up to 800 meters. |
*&** selection of optional features will result in model change.
STLOC3 Transmitter Technical Speciï¬cations:
Model Options | SnapTrack |
Max Output power | 3W |
Active line frequencies | Up to 16 user conï¬gurable frequencies: 1kHz, 8kHz, 9kHz, 33kHz, 65kHz, 8.2kHz, 83kHz, 116kHz, 118kHz, 200kHz, 478kHz,273Hz, 512Hz, 577Hz, 640Hz, dFF, 815Hz 3 Dual frequencies: 815Hz/33kHz, 815Hz /82kHz, 8Hz/82kHz |
Load matching | Automatic 5 to 25000 ohms |
Display | LCD |
Indicators | AC load assistance measurement, relative ohms, voltage, live voltage output, current output, power level, frequency, mode, battery indication alert, low battery indicator audio/visual with modulated low battery warning transmitted to the receiver |
Output power setting | 5 levels, 0.2 to 3 Watt (<44kHz) |
High Power Output Mode | No |
DFF mode | Yes, DFF Mode can be used for sheath fault locating if earth return probe (A frame is purchased separately) |
Power source | Alkaline battery 8 x “C” Cells |
Operating time | Continuous: 8 ~15 hours depending on load, frequency, power setting Intermittent: >=30 hours |
Weight | ≤ 1.5 kG |
Size | 21 cm x 15 cm x 6 cm |
Operating Temperature | -20°C to 55°C |
Environmental rating | IP65 |
