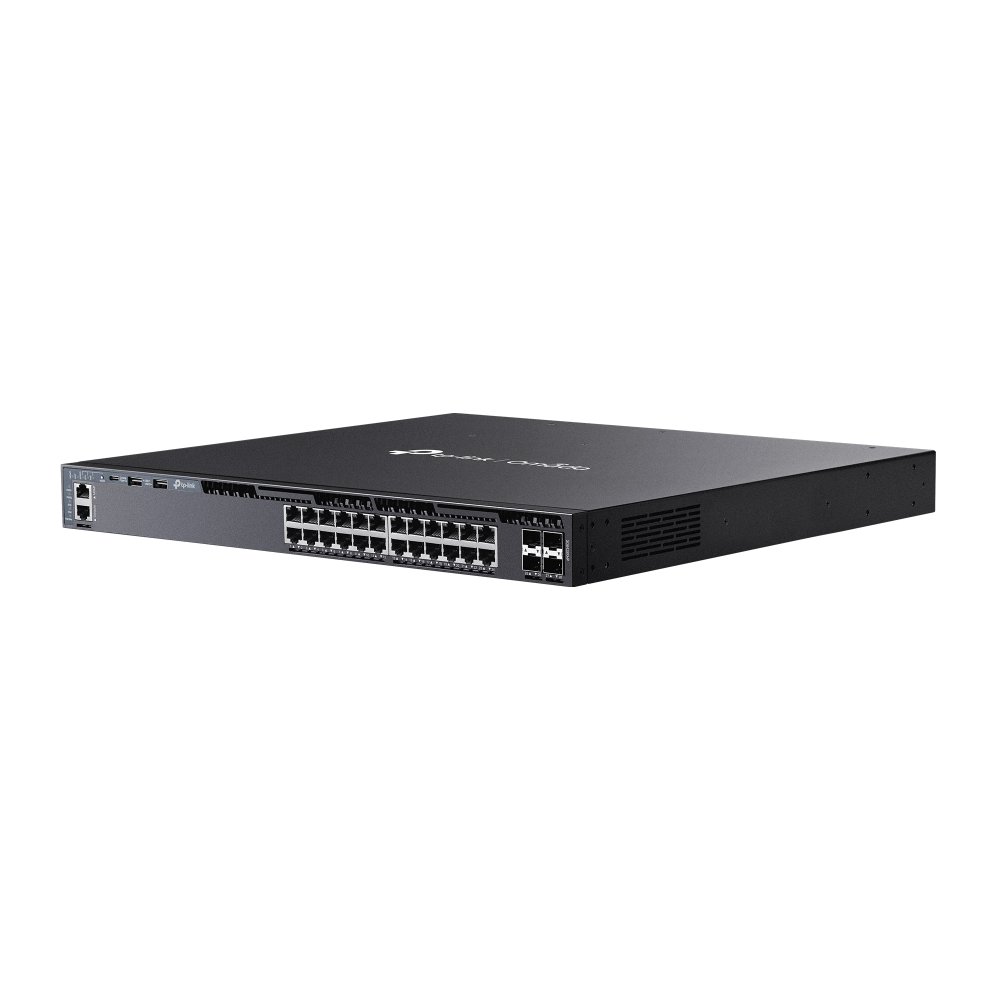

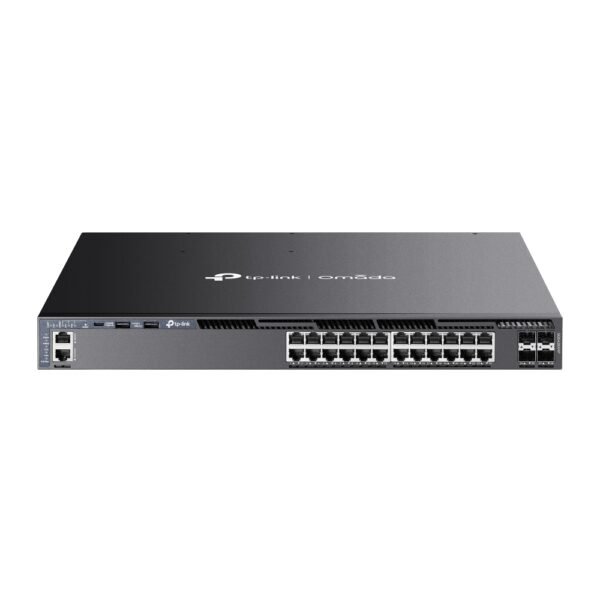

TP-Link SG6428XHP Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch – 4× 10G SFP+ Slots, 410W PoE Budget, VLAN, QoS, Rackmount

TP-Link SG6428XHP Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch – 4× 10G SFP+ Slots, 410W PoE Budget, VLAN, QoS, Rackmount - Image 2

TP-Link SG6428XHP Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch – 4× 10G SFP+ Slots, 410W PoE Budget, VLAN, QoS, Rackmount - Image 3

TP-Link SG6428XHP Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch – 4× 10G SFP+ Slots, 410W PoE Budget, VLAN, QoS, Rackmount - Image 4

TP-Link SG6428XHP Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch – 4× 10G SFP+ Slots, 410W PoE Budget, VLAN, QoS, Rackmount - Image 5

TP-Link SG6428XHP Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch – 4× 10G SFP+ Slots, 410W PoE Budget, VLAN, QoS, Rackmount - Image 6

TP-Link SG6428XHP Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch – 4× 10G SFP+ Slots, 410W PoE Budget, VLAN, QoS, Rackmount

Name: TP-Link SG6428XHP Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch – 4× 10G SFP+ Slots, 410W PoE Budget, VLAN, QoS, Rackmount
Brand: TechPotli
SKU: Tp-Link SG6428XHP Omada 24-Port Gigabit L3 Managed PoE+ Switch
Price: 255555 INR
Availability: InStock
Rating: 5 (1 reviews)

Original price was: ₹314,450.00.Current price is: ₹255,555.00.

24× Gigabit RJ45 PoE+ ports
4× 10 Gbps SFP+ slots
Up to 720 W total PoE budget*
Physical stacking for built-in redundancy and performance
L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
Security Strategies: ACL, Port Security, DoS Defend, 802.1X
Highly Available with two field-replaceable power supplies,** VRRP, and ERPS
Centralized cloud management via Omada SDN controllers
Standalone management via web, CLI, SNMP, and RMON

100 in stock

Compare

SKU: Tp-Link SG6428XHP Omada 24-Port Gigabit L3 Managed PoE+ Switch Categories: NETWORKING SWITCHES, SWITCHES Tags: 24 Port Gigabit PoE Switch, 410W PoE Switch, High Power PoE Switch, Layer 3 PoE+ Network Switch, Omada SG6428XHP Switch, Rackmount PoE+ Managed Switch, Stackable L3 Managed PoE Switch, Switch, switch port, TP-Link 24-Port PoE+ Switch, TP-Link Enterprise Network Switch, TP-Link L3 Managed PoE+ Switch, TP-Link Omada Stackable Switch, TP-Link PoE+ Managed Switch, TP-Link SG6428XHP, TP-Link Switch with 10G SFP+, VLAN and QoS Supported Switch Brand: TP-Link

Description
Reviews (0)

SG6428XHP

Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch with 4 10G Slots

HARDWARE FEATURES
Interface	• 24× 10/100/1000 Mbps PoE+ RJ45 Ports • 4× 10G SFP+ Slots • 2× USB 2.0 Ports • 1× RJ45 Console Port • 1× USB Type-C Console Port • 1× RJ45 Management Port
Fan Quantity	Four Field-replaceable and Hot-swappable Fans
Power Supply	Two Field-replaceable and Hot-swappable Power Supply Modules (100–240 VAC, 50/60 Hz) Shipping with one PSM500-AC module by default, and another field-replaceable redundant power supply requires purchasing separately.
PoE Ports (RJ45)	• Standard: 802.3at/af compliant • PoE+ Ports: 24 Ports, up to 30 W per port • PoE Power Budget: up to 720 W**The total PoE budget varies with the power supply modules.
Dimensions ( W x D x H )	17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm)
Mounting	Rackmountable
Max. Power Consumption	• 42.9 W (110 V/60 Hz) (With no PD connected) • 916.6 W (110 V/60 Hz) (With 720 W PD connected and powered by 2× PSM500-AC)
Max Heat Dissipation	• 146.29 BTU/hr (110 V/60 Hz) (With no PD connected) • 3,125.61 BTU/hr (110 V/60 Hz) (With 720W PD connected and powered by 2× PSM500-AC)

PERFORMANCE
Switching Capacity	128 Gbps per Unit
Stacking	• Stacking Number: 4 • Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports) • Stack Bandwidth: 20 Gbps Per Port (Full-Duplex)
Packet Forwarding Rate	95.2 Mpps
MAC Address Table	32 K
Packet Buffer Memory	3 MB
Jumbo Frame	9 KB

SOFTWARE FEATURES
Quality of Service	• Class of Service – 8 Queues of Priority – Port Priority – IEEE 802.1p Priority – DSCP Priority – Queue Min-Bandwidth – Schedule Mode (SP, WRR, SP+WRR) • Bandwidth Control – Rate Limit – Storm Control • Voice VLAN • User-Defined OUI • Smoother Performance • Action for Flows – QoS remark (802.1P Remark, DSCP Remark)
L3 Features	• IP Interfaces: – IPv4: Max 256, IPv6: Max 256 • Static Routing – Max 1,024, IPv6: Max 512 • Host Route Table: Max 6,100 entries • RIP: Version v1/v2, Max 8,190 • OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097 • VRRP: Version v2/v3, Max 64 groups • ECMP: 256 entries, max 32 ECMP Nexthops per Destination • Static ARP: 512 static entries • Dynamic ARP: 7,680 dynamic entries • Proxy ARP • DHCP Server: – Max 8K IP Pools – Max 1,000 Manual Binding Entries • DHCP Relay: – Relayed Interface – Relayed VLAN
L2 and L2+ Features	• Link Aggregation • Spanning Tree Protocol • Port-based and VLAN-based Loopback Detection • 802.3x Flow Control • Supports 2,048 IGMP groups • ERPS • Mirroring • RSPAN • MAC Address Table • PIM-DM (IPv4) • Multicast – IGMP Snooping – MLD Snooping – L2 Multicast Table – Fast Leave – Multicast VLAN Registration (MVR) – Static Multicast IP – Multicast Filtering
Advanced Features	• Automatic Device Discovery^† • Batch Configuration^† • Batch Firmware Upgrading^† • Intelligent Network Monitoring^† • Abnormal Event Warnings^† • Unified Configuration^† • Reboot Schedule^†ISP Features: • 802.3ah Ethernet Link OAM • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • DDM • sFlow
VLAN	• Max 4K VLAN Group (802.1q VLAN) • 802.1Q Tagged VLAN • MAC VLAN Entries: 200 • Multicast VLAN • Management VLAN • VLAN VPN (QinQ): Max 256 entries • GVRP • Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries • VLAN VPN • Voice VLAN • Private VLAN
Security	• Port Isolation • CPU-Defend • ARP Inspection (Dynamic ARP Inspection) • DoS Defend • IP-MAC-Port Binding -1,024 Entries – DHCP Snooping – ARP Inspection – IPv4 Source Guard • IPv6-MAC -Port Binding -1,024 Entries – DHCPv6 Snooping – ND Detection – ND Snooping – IPv6 Source Guard • DHCP Filter • Static/Dynamic Port Security – Up to 64 MAC addresses per port • Broadcast/Multicast/Unknown-unicast Storm Control – kbps/ratio control mode • 802.1X – Port base authentication – Mac base authentication – VLAN Assignment – MAB – Guest VLAN – RADIUS authentication and accountability support • AAA (including TACACS+) • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv2 • IP/Port/MAC-based access control

Management Features
Omada App	Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of the Omada Cloud-Based Controller.
Management Features	• Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 – Trap/Inform – RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log • EEE

OTHERS
Package Content	• SG6428XHP Switch • Power Cord • RJ45 Console Cable • Quick Installation Guide • Rackmount Kit • Rubber Feet
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment	• Operating Temperature: 0–45 ℃ (32–113 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
