TEMPO OPM 500 Optical Power Meter
Original price was: ₹8,999.00.₹6,000.00Current price is: ₹6,000.00.
- Filtered InGaAs for measuring high powered optical Signals
- InGaAs detector for maximum Sensitivity
- Singlemode and multimode measurement
- Calibrated wavelengths of 850nm, 1300nm, 1310nm, 1490nm, 1550nm and 1625nm
- 270Hz, 1kHz and 2kHz tone
- IP54 ruggedized optical power meter
- Auto off/ continous on operation
- Use with bettery or 120m 240V AC Operation (Optional)
TEMPO OPM 500 Optical Power Meter

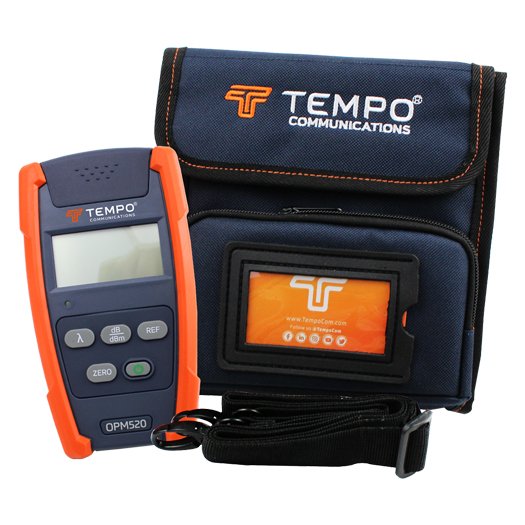

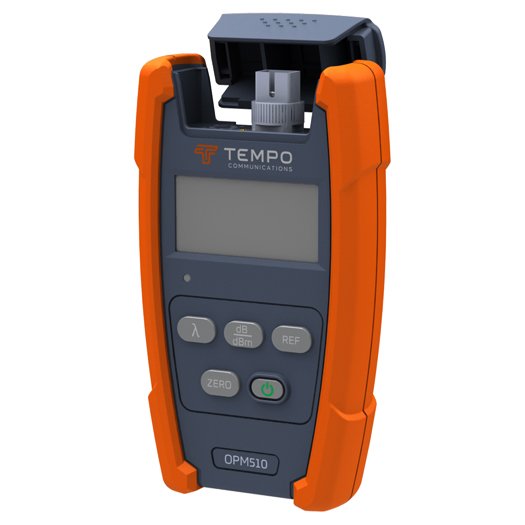

OPM 500 Optical Power Meter
OPM-500 series hand-held multiwavelength optical power meter from Tempo Communications, USA can measure 850nm, 1300nm, 1310nm, 1490nm, 1550nm and 1625nm wavelength.
Equipped with InGaAs detector, the OPM-500 has high sensitivity for measuring high power optical signal accurately.
When used with a corresponding SLS500 series optical laser source, use tones on fiber to quickly identify fiber.
OPM-500 Optical Power Meter is compatible with LC, SC, ST and FC adaptor.
With a IP54 rugged exterior and battery life >100 hrs., the OPM-500 Optical power meter is a preferred model for efficient power measurement.
Tempo OPM500 series is available in two options:
1. OPM510 for measuring range -65 to +10 dBm
2. OPM522 for -50 to +27 dBm
OPM500 series optical power meter is ideal for optical network loss testing, insertion loss measurements & fiber maintenance.
Features
- Filtered InGaAs for measuring high powered optical Signals
- InGaAs detector for maximum Sensitivity
- Singlemode and multimode measurement
- Calibrated wavelengths of 850nm, 1300nm, 1310nm, 1490nm, 1550nm and 1625nm
- 270Hz, 1kHz and 2kHz tone
- IP54 ruggedized optical power meter
- Auto off/ continous on operation
- Use with bettery or 120m 240V AC Operation (Optional)
Specification
| MODEL | OPM510 | OPM520 |
| Cal. Wavelength (nm) | 850,1300,1310,1490,1550,1625 | |
| Measure range (dBm) | -65~+10(1) | -50~+27 |
| Detector type | InGaAs | |
| Accuracy (dB) | ±5% ±0.01nW (±0.5dB@850nm) | ±5% ±1nW (±0.5dB@850nm) |
| Linearity | +/-O.5dB (+1O to-3dBm) +/-O.1dB (-3 to-5OdBm) +/-O.5dB (-5O to-65dBm) | +/-O.5dB (+27 to-3dBm) +/-O.1dB (-3 to-5OdBm) |
| Resolution (dB) | 0.01 dB | |
| Functions | W/mW/μW/dBm/dB(REF)/ MOD TONE DETECT 27OHz, 1kHz, 2kHz | |
| Connector Type | SC/PC (Interchangeable LC,ST,SC) | |
| Fiber Type | Singlemode & multimode | |
| Battery life | > 100 Hours | |
| Power supply | 9V Alkaline or 1000mAh lithium battery /9V AC adapter | |
| Operating Temperature | -10ºC-50ºC | |
| Storage Temperature | -20ºC-70ºC | |
| Relative Humidity | 0 to 95% (NON-CONDENSING) | |
| Weight | 0.68lbs (300g) | |
| Dimensions (HxWxT) | 6.1×3.5×1.3” (155x88x33mm) | |
| IP Rating | IP54 | |
| Vibration | 5Hz to 150Hz, Amplitude+0.15mm | |
| Shock | Peak acceleration 25g at a pluse duration of 6ms | |
| Compliance | CE, FCC | |
