Tenda TEG1110PF-8-120W 9GE+1SFP Ethernet Switch With 8-Port PoE

Tenda TEG1110PF-8-120W 9GE+1SFP Ethernet Switch With 8-Port PoE - Image 2

Tenda TEG1110PF-8-120W 9GE+1SFP Ethernet Switch With 8-Port PoE

Name: Tenda TEG1110PF-8-120W 9GE+1SFP Ethernet Switch With 8-Port PoE
Brand: TechPotli
SKU: 14150
Price: 3800 INR
Availability: InStock
Rating: 5 (1 reviews)

Original price was: ₹4,500.00.Current price is: ₹3,800.00.

Desktop installation &wall mounting
Supports Three-mode of Standard,VLAN,Extend
Single port output power 30W,maximum output power 110W

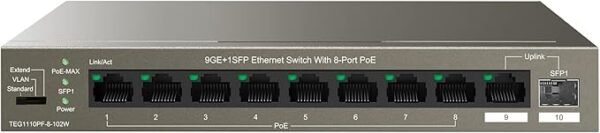

8×Gigabit PoE+ RJ45 ports,1×Gigabit RJ45 port,and 1×SFP slot

100 in stock

Compare

Description
Reviews (0)

Tenda TEG1110PF-8-120W 9GE+1SFP Ethernet Switch With 8-Port PoE

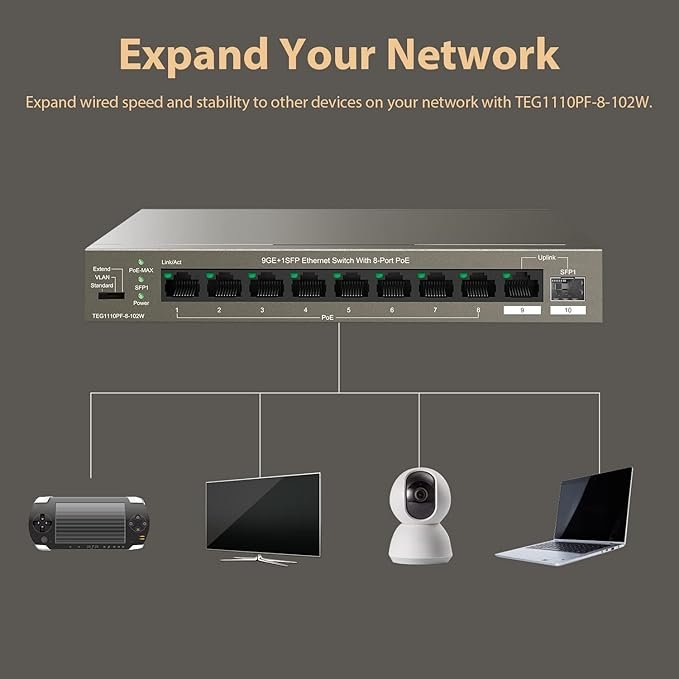

TEG1110PF-8-120W is a 10-port gigabit Ethernet unmanaged PoE switch independently designed by Tenda.It supports IEEE 802.3af/at standards for PoE power supply, capable of transmitting data and supplying power for 8 HD PoE cameras or gigabit APs. The maximum PoE output of a single port is 30 W and the total networking in such scenarios as SMEs, residential areas, indus power consumption of the switch is 120W. Supporting three-mode toggle, TEG1110PF-8-120W is suitable for complex networking deployment and is your ideal choice for video surveillance and gigabit wireless trial parks, hotels and schools.

etwork standards	IEEE 802.3、 IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、 IEEE 802.3af、IEEE 802.3at
LED Indicator	9* Link/Ack LED indicators 1 * Power LED indicator
Interfaces	810/100/1000 Base-T Ethernet Ports(Data/Power) 110/100/1000 Base-T Ethernet Ports(Data)
Transmission media	Recommended: CAT5/5e UTP or better
Dimension	177.5mmx104.0mmx26.0mm
Level of protection	Lightning protection for ports: 6kV Lightning protection for power: 6kV ESD: Air discharge: ±10kV Contact discharge: ±8kV
Forwarding mode	Store-and-forward
Switch capacity	18 Gbps
Packet forwarding rate	13.4Mpps
Buffer	2M
MAC address table	16K
PoE budget	Single port: AF: 15.4W, AT: 30W Whole device: 92W
Power consumption	/
Input voltage	100-240V AC 50/60Hz 51V /2.0A DC（Power Adapter Output ）
Mounting	Desktop mounting: support Wall mounting: support Rack mounting:non-support
Environment	Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Certification	FCC、CE、RoHS
Funtions	Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. VLAN: ports 1 to 8 are isolated from each other, but can communicate with ports 9 (uplink port) respectively.
