TP-Link DS-P7001-04 | Deltastream Pizza-box 4 port gpon olt

DS-P7001-04 4-Port GPON OLT ( unloaded ) |4 GPON Ports, Supports 512 ONUs Supports 1:128 splitting ratio for every port—up to 512 ONTs by one device | Dual built-in AC and DC power supplies |Free Centralized Management Via DeltaStream PON Management System (DPMS) | Warranty Period :- 3 Years

TP-Link DS-P7001-04 (4 port gpon olt) is a 4-channel power supply module, designed for stable and reliable power distribution to security systems and other devices. It offers efficient power management, multiple output channels, and protection features like overcurrent and short-circuit protection, ensuring dependable performance for critical setups.

• 4 GPON Ports: Supports 1:128 splitting ratio for every port—up to 512 ONTs by one device.
• High-Speed Uplink Ports: Provides 1× 10GE SFP+ port and 1× gigabit uplink port.
• Redundant Dual Power Supplies: Carrier-class reliability with dual built-in AC+DC power supplies.
• Complete L2 & Advanced L3 Functions: Satisfies the need for numerous commercial requirements.
• Centralized Management: Via DeltaStream PON Management System (DPMS), SNMP, CLI, and WEB UI.
• Advanced L2/L2+ Functions: Static Routing, IGMP Snooping, and more meet the requirement for different applications.



4 GPON Ports,
Supports 512 ONUs

Supports 1:128 splitting ratio for every port—up to 512 ONTs by one device.

Free Centralized Management

Via DeltaStream PON Management System (DPMS)

Easy maintenance and centralized management makes your life a breeze. Configure and update all your devices at once via DeltaStream PON Management System (DPMS), SNMP, CLI and Web UI.

•  No Additional Expense
•  Improve Management Efficiency And Reduce Maintenance Costs
•  The Easy-to-Use Dashboard Ensures Hassle-Free Configuration

Compact Size, Flexible Deployment

Mount in a rack for flexible deployment with all your other products.

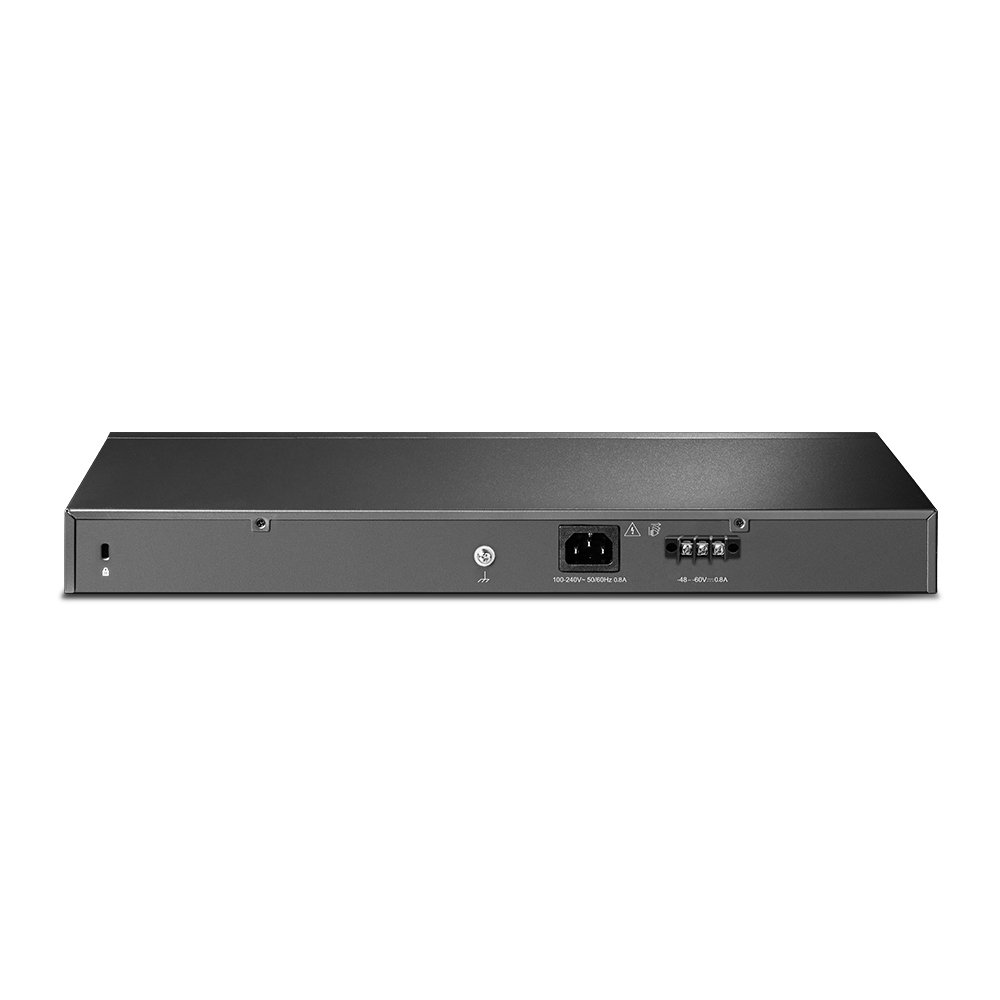

Constant Reliability Through Redundant Dual Power Supplies

Dual built-in AC and DC power supplies ensures carrier-class reliability.

• AC input: 100V~240V 50/60Hz
• DC input: 38.4V~72V

HARDWARE FEATURES

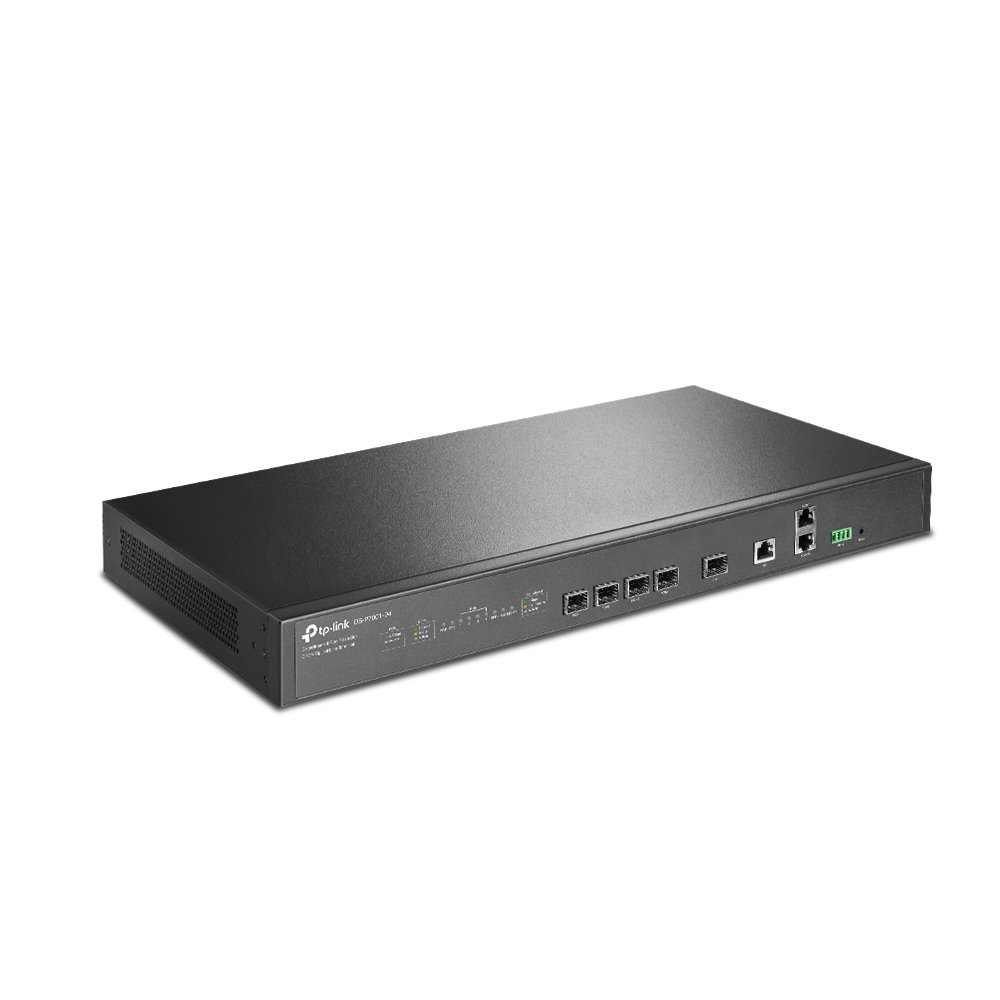

Interface	• 4× 2.5G PON Ports • 1× 10 Gbps SFP+ Uplink Port • 1× 10/100/1000 Mbps RJ45 Uplink Port • 1× RJ45 Console Port • 1× RJ45 MGMT Port • 1× Alarm Port (Reserved)
Button	Reset Button
Power Supply	Dual Power Supplies • AC: 100V~240V, 50/60Hz • DC: -38.4V~-72V
Power Consumption	Max. 58W
Dimensions ( W x D x H )	17.3 × 7.1 × 1.7 in (440 × 180× 44 mm)

SOFTWARE FEATURES
Security	• ACL • 802.1x Authentication • ARP Inspection • IP Source Guard
DHCP	• DHCP Server • DHCP Relay
OMCI	Standard OMCI Management Supported
ONU Authentication	ONU Auto Authentication
ONU Security	• Rouge ONU Detection and Isolation • Uplink and Downlink Data Encryption
Multi-Service	Multi-Service Traffic Identify and Rate Limit
QoS	• IEEE 802.1p/DSCP QoS • Voice VLAN • Auto VoIP
Routing	Static Routing
Mulitcast	• IGMP Snooping • MLD Snooping
Centralized Management	• Large-Scale Devices Management • OLT Batch Configure, Upgrade, Reboot • Multi-Site Management • Intelligent Network Monitoring • Real-time Network Overview

GPON port attribute
Max. Splitting Ratio	1:128
Transmission distance	20km
Data rate	• Downstream: 2.5 Gbps • Upstream: 1.25 Gbps
Wavelength	• Tx: 1490 nm • Rx: 1310 nm
Interface type	SC/UPC
Fiber type	9/125μm SMF (Single Mode Fiber)
Tx power	Class C+

OTHERS
Certification	CE,FCC
Package Contents	• OLT Device • Power Cord and Console Cable • Installation Guide • Mouting Brackets, Screws and Rubber Feet
Environment	• Operating Temperature: 0°C~50°C (32°F~122°F) • Storage Temperature: -40℃~70℃(-40°F ~158°F)
