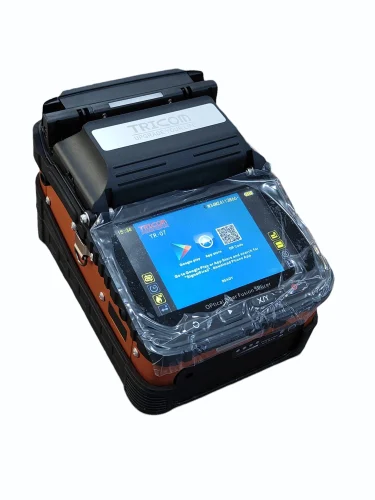

TRICOM TR-07 Splicing Machine ( Arc Fusion Splicer)

Name: TRICOM TR-07 Splicing Machine ( Arc Fusion Splicer)
Brand: TechPotli
SKU: 20378
Price: 54000 INR
Availability: InStock
Rating: 5 (1 reviews)

Original price was: ₹78,000.00.Current price is: ₹54,000.00.

Product Details:

Function Type	Fully Automatic
Usage/Application	Fiber Splicing
Model Name/Number	TR-07

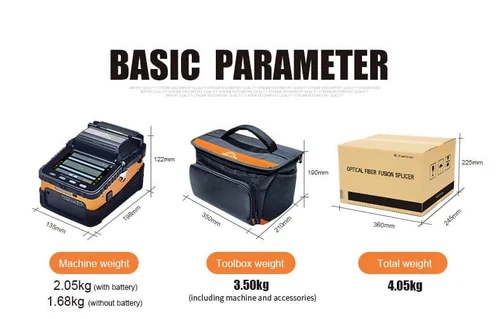

Dimensions	135x198x122mm
Color	Black and Orange
Tension Test	2N
Electrode Life	4000
Heating Time	18s
Return Loss	60dB
Make	TRICOM
Splicing Loss	0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS)
Splicing Time	8S
Fiber Alignment	core/cladding
Splicing Mode	automatic focusing core alignment, conventional/high precision welding
Cladding Diameter	80~150um
Applicable Fibers	single-mode fiber (SMF/G.652, BIF/G.657); Suitable for single mode, multi-mode, bare fiber, tail fib
Motor Number	four motors (accurate of fiber alignment: 0.5um)

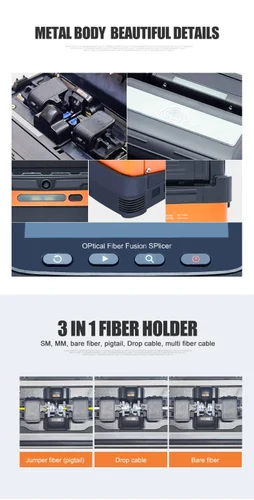

Fiber Holder	3-in-1 fiber holder, no need to change, suitable for single/multi-mode, multi-core cable, 250um/900
Splicing Method	automatic, semi-automatic

Compare

Categories: Fiber Testing Measurements Devices, SPLICING MACHINE Tags: SPLICING MACHINE, TRICOM Splicing Machine Brand: TRICOM

Description
Reviews (0)

TRICOM TR-07 Splicing Machine ( Arc Fusion Splicer)

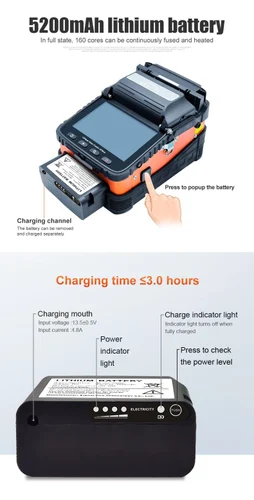

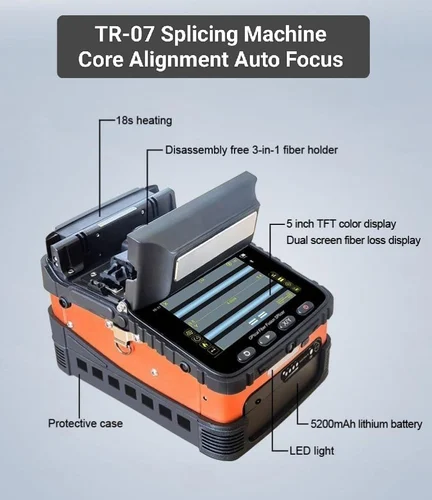

TRICOM TR-07 is mainly suitable for security monitoring and other engineering projects. Adopting a 5-inch color screen, the operation graphics are simple and intuitive; Up to 320x focusing magnification, 8 second high-speed splicing, 18 second heating, with a 50% increase in work efficiency compared to ordinary fusion machines; The 5200mAh lithium battery can fuse and heat about 160 cells when fully charged. Its unique lighting design makes it convenient for night construction or emergency repairs.
