Ubiquiti Antenna AMO-5G13 – airMAX 5GHz 13dBi Omni 2×2 MIMO Antenna

Ubiquiti Antenna AMO-5G13

Thank you for purchasing the Ubiquiti Networks® airMAX® 5 GHz 2×2 MIMO Dual Polarity Omni Antenna. This Quick Start Guide is designed to guide you through the installation of the antenna. This Quick Start Guide also includes the warranty terms and is for use with the airMAX Omni Antenna, model AMO-5G13.

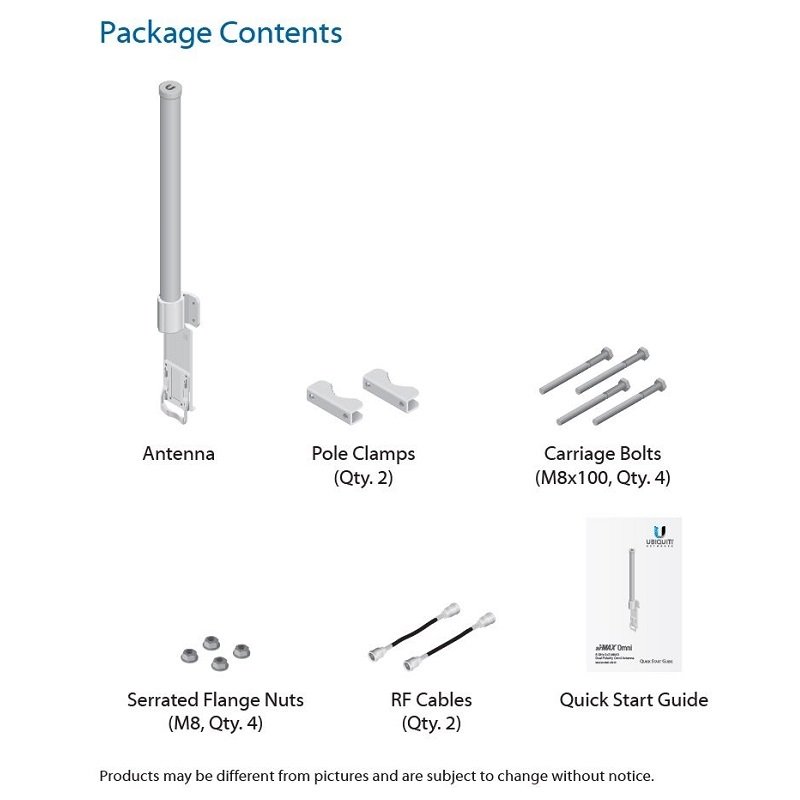

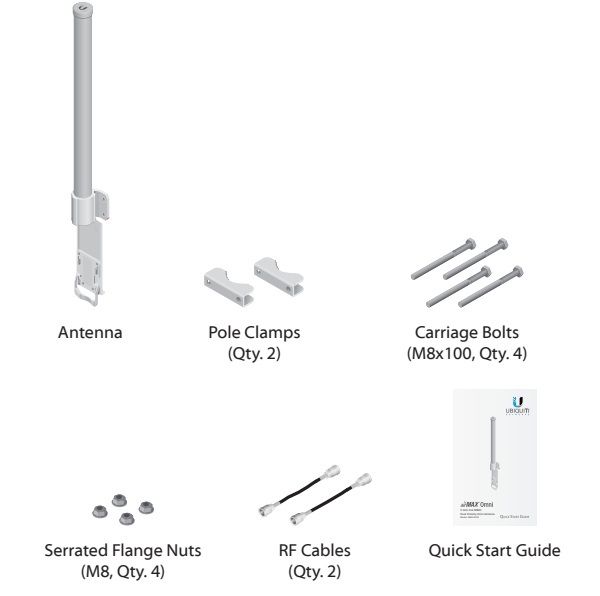

Package Contents

Products may be different from pictures and are subject to change without notice.
TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable is designed for outdoor installations. It is the customer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements

Installation Requirements

• Rocket™M5 or RocketM5 GPS (sold separately)
• 13 mm wrench
• Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded
through the AC ground of the PoE.
We recommend that you protect your networks from the most brutal environments and devastating ESD attacks with industrial‑grade     shielded Ethernet cable from Ubiquiti Networks. For more details,

Hardware Installation

1. Attach the RF Cables to the connectors labeled Chain 0 and Chain 1 on the Rocket.

2. Align the mounting tabs on the back of the Rocket with the Rocket mount, and slide the Rocket down to lock it into place

3. Attach the other ends of the RF Cables to the RF connectors on the antenna

4. Insert the four Carriage Bolts into the main mounting bracket of the antenna.

5. Attach the antenna to the top of the pole. (If the antenna is attached to a lower point on the pole, part of the signal will be blocked by      the pole.)
Note: The mounting assembly can accommodate a Ø 38 – 76 mm (1.5 – 3.0″) pole.
a. Slide a Pole Clamp over each pair of Carriage Bolts.
b. Secure each Pole Clamp with two Serrated Flange Nuts.
c. Tighten all nuts to approximately 25 N-m (18 lb-ft).

Specifications

Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label.       Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire    hazard if the limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service should be provided only by a qualified service technician.
