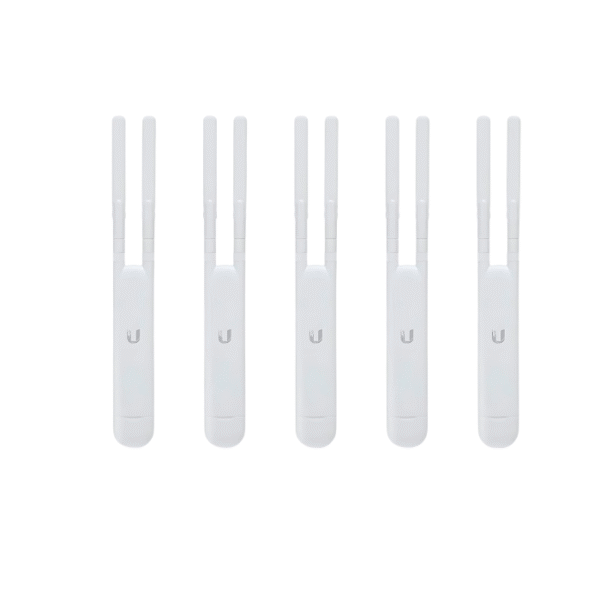

Ubiquiti-UAP-AC-M-5 Access Point AC Mesh Indoor/Outdoor Dual-Band (5 pack)

Model: UAP-AC-M-5 – Ubiquiti Access Point AC Mesh 802.11AC Indoor/Outdoor Wi-Fi Access Point

High-performance, 802.11ac Wave 1 access point with dual, 2×2 MIMO WiFi antennas that can reach a 1.1+ Gbps aggregate throughput rate.

The Access Point AC Mesh (UAP AC Mesh) is a high-performance, outdoor-ready, dual-band, 802.11ac WiFi access point than can reach a 1.1+ Gbps aggregate throughput rate with its 5 GHz and 2.4 GHz bands. The UAP AC Mesh features two, omnidirectional WIFi antennas (2×2 MIMO) to provide robust and extensive wireless coverage 360° coverage, as well as (2) RP-SMA connectors that can be used in tandem with the antennae for customized pattern shaping. This access point is powered with either PoE or 24V passive PoE and is equipped with (1) GbE RJ45 port for high-speed LAN connectivity. The UAP AC Mesh can be set up in minutes and fully managed with the UniFi Network web application or mobile app.

• Antenna Versatility
  • Adjustable dual-band omni-directional antennas and Fast-Mount included for expanded range coverage. Simultaneous Dual Band 2×2 MIMO
• Optimal Performance
  • Dual-Band performance with aggregate speeds of up to 1167 Mbps.
• Compact Form Factor
  • The UniFi AC Mesh base is just slightly larger than a standard pen, making it easy to deploy anywhere. Dimensions: 354 x 46 x 34 mm (H x W x D).
• Multiple Power Options
  • Power the UniFi AC Mesh with an 802.3af compatible switch, a UniFi PoE Switch, or the included Gigabit PoE adapter.

Dimensions

• 353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4″)

Weight

• 152 g (5.4 oz)

Compatibilities

• International version
  • UAP-AC-M-5

Technical Description

• Hardware

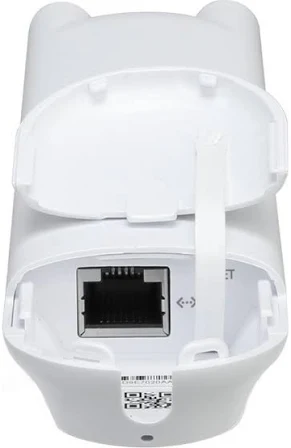

  • Networking interface: (1) GbE port
  • Management interface:
    • Ethernet
    • Bluetooth
  • Power method: 24V passive PoE (Pairs 4, 5+; 7, 8 return)
  • PoE alternative A (Pairs 1, 2+; 3, 6 return)
  • Power supply: Gigabit PoE adapter 24V, 0.5A*
    • *5-packs do not come with PoE adapters.
  • Supported voltage range: 44—57V DC
  • Max. power consumption: 8.5W
  • Max. TX power
    • 2.4 GHz: 20 dBm
    • 5 GHz: 20 dBm
  • MIMO
    • 2.4 GHz: 2 x 2
    • 5 GHz: 2 x 2
  • Throughput rate
    • 2.4 GHz: 300 Mbps
    • 5 GHz: 867 Mbps
  • Antenna gain
    • 2.4 GHz: 3 dBi
    • 5 GHz: 4 dBi

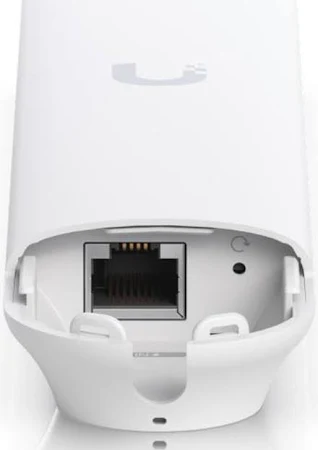

  • Button: Factory reset

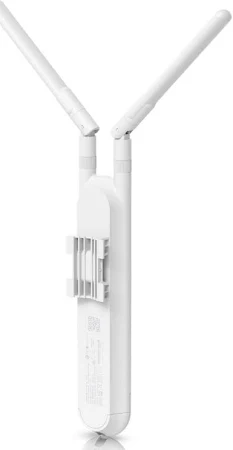

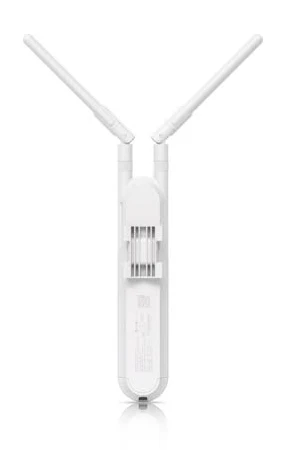

  • Mounting: Wall/pole/fast-mount (Included)
  • Operating temperature: -30 to 70° C (-22 to 158° F)
  • Operating humidity: 5 to 95% noncondensing
  • Certifications: CE, FCC, IC, UKCA
• Software
  • WiFi standards: 802.11a/b/g/n/ac
  • Wireless security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
  • VLAN: 802.1Q
  • BSSID: Up to 4 per radio
  • Advanced QoS: Per-user rate limiting
  • Guest traffic isolation: Supported
  • Power save: Supported
  • WMM: Voice, video, best effort, and background
  • Concurrent clients: 250+
• Supported Data Rates (Mbps)
  • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 802.11b: 1, 2, 5.5, 11 Mbps
  • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 802.11n: 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
  • 802.11ac: 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)
