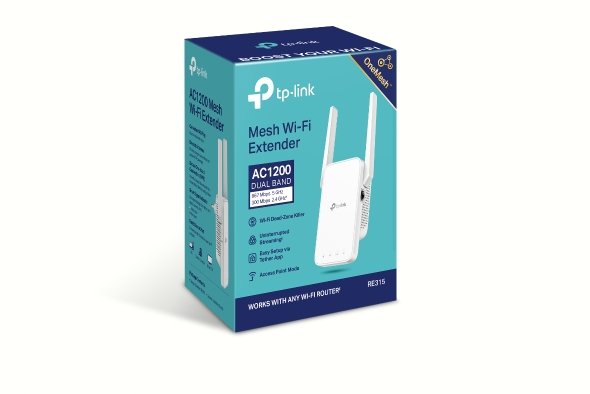

RE315
New
AC1200 Mesh Wi-Fi Range Extender
- Eliminate weak signal areas with whole home WiFi coverage.
- 2.4 GHz (300 Mbps) and 5 GHz (867 Mbps) dual-band WiFi connection ensures more stable wireless experience.†
- EasyMesh-Compatible – Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage
- Adaptive Path Selection – connects to the fastest connection path to the router automatically and runs at top-speed.
- AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability.
- Smart signal indicator helps to find the best location for optimal Wi-Fi coverage by showing the signal strength.
- Push the WPS button to easily connect to the router and you can uniformly manage from the Tether app or Web UI.
- Works with any Wi-Fi router or wireless access point.
WIRELESS | |
---|---|
Working Modes | Range Extender/Access Point |
HARDWARE FEATURES | |
---|---|
Interface | 1 x 10/100Mbps Ethernet Port (RJ45) |
Button | WPS Button, Reset Button |
Input Power | 100-240V~50/60Hz |
Max. Power Consumption | 9.5W(max power consumption) |
Dimensions ( W x D x H ) | 3.5×1.4×4.9 in. (89×35.0×124.1 mm) |
Antenna | 2 External Antennas |
WIRELESS FEATURES | |
---|---|
Wireless Standards | IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
Frequency | 2.4GHz and 5GHz |
Signal Rate | 300Mbps at 2.4GHz, 867Mbps at 5GHz |
Working Modes | Range Extender/Access Point |
Reception Sensitivity | 5 GHz: 11a 6Mbps: -94dBm 11a 54Mbps: -77dBm 11ac HT20 MCS0: -94dBm 11ac HT20 MCS8: -71dBm 11ac HT40 MCS0: -92dBm 11ac HT40 MCS9: -66dBm 11ac HT80 MCS0: -87dBm 11ac HT80 MCS9: -62dBm 2.4 GHz: |
Wireless Functions | Enable/Disable Wireless Radio DFS (the latest firmware and hardware version is required) Access Control LED Control Power Schedule Wi-Fi Coverage |
Wireless Security | 64/128-bit WEP, WPA/WPA2-PSK/WPA2-PSK2 encryptions |
Transmission Power | 2.4 GHz ≤20dBm, 5 GHz ≤30dBm |
OTHERS | |
---|---|
Certification | CE, RoHS |
Package Content | Wi-Fi Range Extender RE315 Quick Installation Guide |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
† Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.
‡ Smart Roaming is designed for devices that support the 802.11k/v standard.
§ The product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or is non-standard or outdated.
TP-Link EasyMesh-Compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-Compatible function is still being developed on some models and will be supported in subsequent software updates.
