YOKOGAWA OTDR AQ1000 -32/30dB Dual Wavelength

YOKOGAWA OTDR AQ1000 – High-Performance Entry-Level Optical Fiber Tester

This AQ1000 is specifically designed to increase the productivity of field personnel working on the installation and deployment of optical access networks such as Fiber To The Home (FTTH). Although it is positioned as an entry-level model, it still retains Yokogawa’s established standards of quality/reliability for OTDR manufacturers and features characteristics which are usually present in higher-level models, such as a high-quality capacitive multi-touch touchscreen and wireless connectivity.

At-a-glance

The AQ1000 satisfies test and measurement needs in analyzing access optical networks.

• Wavelengths: 1310 / 1550 nm
• Dynamic ranges: 32 / 30 dB
• Size: 185 mm (W) × 116 mm (H) × 56 mm (D)    ( 7.3″ (W) × 4.6″ (H) × 2.2″ (D) )
• Weight: 660 g   ( 1.46 Lbs )

Multi-touch touchscreen

Intuitive and responsive

Tap, swipe, pinch or press with the intuitive and responsive multi-touchscreen display. This high resolution, responsive 5.0-inch multi-touch capacitive touchscreen combined with hard-key buttons make OTDR operations simple and intuitive.

At-a-glance

The AQ1000 satisfies test and measurement needs in analyzing access optical networks.

• Wavelengths: 1310 / 1550 nm
• Dynamic ranges: 32 / 30 dB
• Size: 185 mm (W) × 116 mm (H) × 56 mm (D)    ( 7.3″ (W) × 4.6″ (H) × 2.2″ (D) )
• Weight: 660 g   ( 1.46 Lbs )

Multi-touch touchscreen

Intuitive and responsive

Tap, swipe, pinch or press with the intuitive and responsive multi-touchscreen display. This high resolution, responsive 5.0-inch multi-touch capacitive touchscreen combined with hard-key buttons make OTDR operations simple and intuitive.

Long battery operation time

Over 10 hours!

No worrying about running out of battery power during your daily work. The AQ1000’s high capacity Li-Ion battery will last for 10 hours under the Telcordia standard conditions.

Quick boot-up

Under 10 seconds!

From completely OFF to measurement ready in under 10 seconds

Key Measurement Functions

• Distance measurement
• Loss measurement
• Return loss measurement (Total/Section)
• Auto event search
• Pass/Fail judgment
• Real-Time

Simple and fast way to observe how the network connection looks like and make a Pass/Fail judgment of the network connection. The markers enables distance and loss measurements.

1. USB port (Type micro B)
2. USB port (Type A)

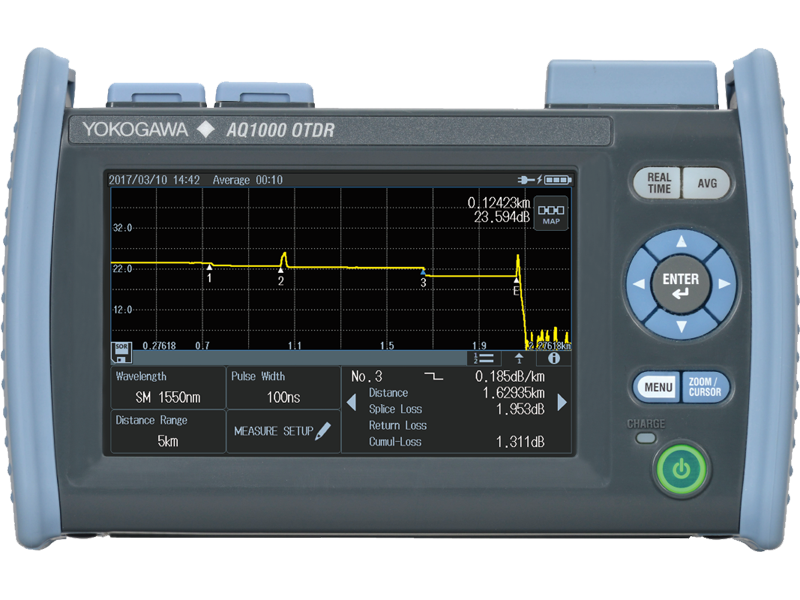

3. 5.0-inch color LCD with capacitive touch-screen
4. VLS port (option)
5. OTDR port
6. Keys

USB power feeding

USB port is used for charging the battery of AQ1000. No need to carry a bulky AC adapter anymore.

Note:

A USB power adapter is not included. Please consult with our sales representatives for Yokogawa approved USB power adapters
