VIEW12R MAX, a ribbon splicer with the fully motorized clamp alignment system, is the market’s most powerful and state-of-the-art ribbon splicer.

DESCRIPTION

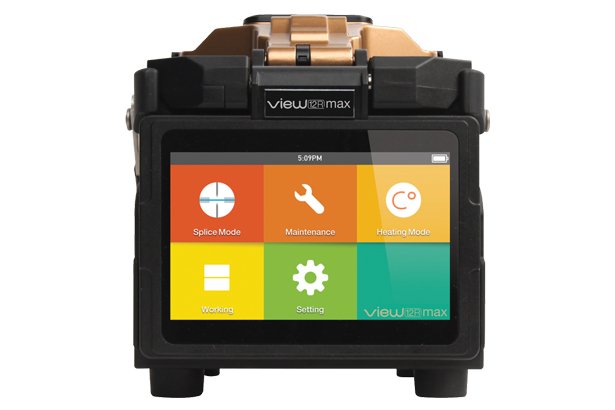

INNO VIEW12R MAX Ribbon Splicer

VIEW12R MAX, a ribbon splicer with the fully motorized clamp alignment system, is the market’s most powerful and state-of-the-art ribbon splicer.

VIEW12R MAX, a ribbon splicer with the fully motorized clamp alignment system, is the most powerful and state-of-the-art ribbon splicer in the market. Its advanced automatic clamp alignment system offers an accurate and dependable ribbon fiber splicing up to 12 fibers with double-tapping (Zoom in & out) and scrolling to the world’s highest magnification of 250x for ribbon splicer.

The VIEW12R MAX provides maximum work efficiency through the fast splicing & heating time, ultra-high battery capacity of 220 splice/heat cycles, and universal holder both for 250μm & 900μm single fiber. The VIEW12R MAX delivers the most reliable work experiences.

KEY FEATURE

• The Highest Magnifaction & Resolution
• 5″ Color LCD Touch Screen
• Ultra-High Capacity Battery, Typical usages: 220 cycles / Power save usage: 260 cycle
• Electrode Life 3000 Arcs
• Splicing Time: Ribbon Fiber: 15 sec / Single Fiber: 9 sec
• Heating Time: Ribbon Sleeve(40mm): 20 sec / Single Sleeve(60mm): 15 sec
• Alignment Method: Motorized Clamp Alignment
• Universal Single Fiber Holder
• Typical Splice Loss: SM:0.05dB / MM:0.02dB / DS:0.08dB / NZDS:0.08dB
• Two Years Warranty
