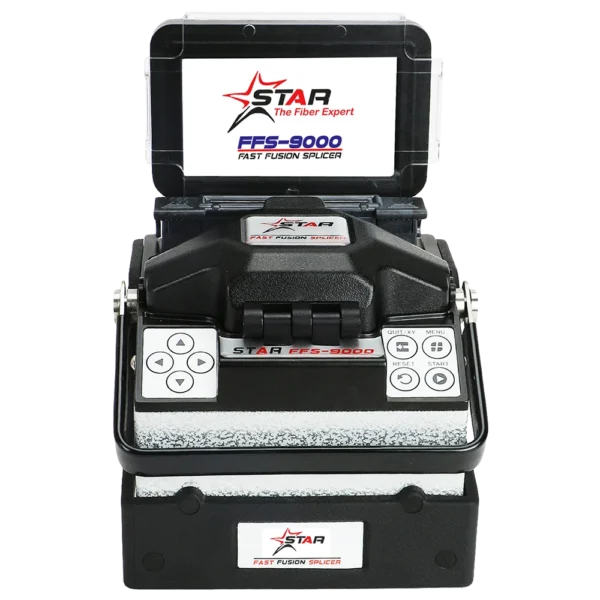

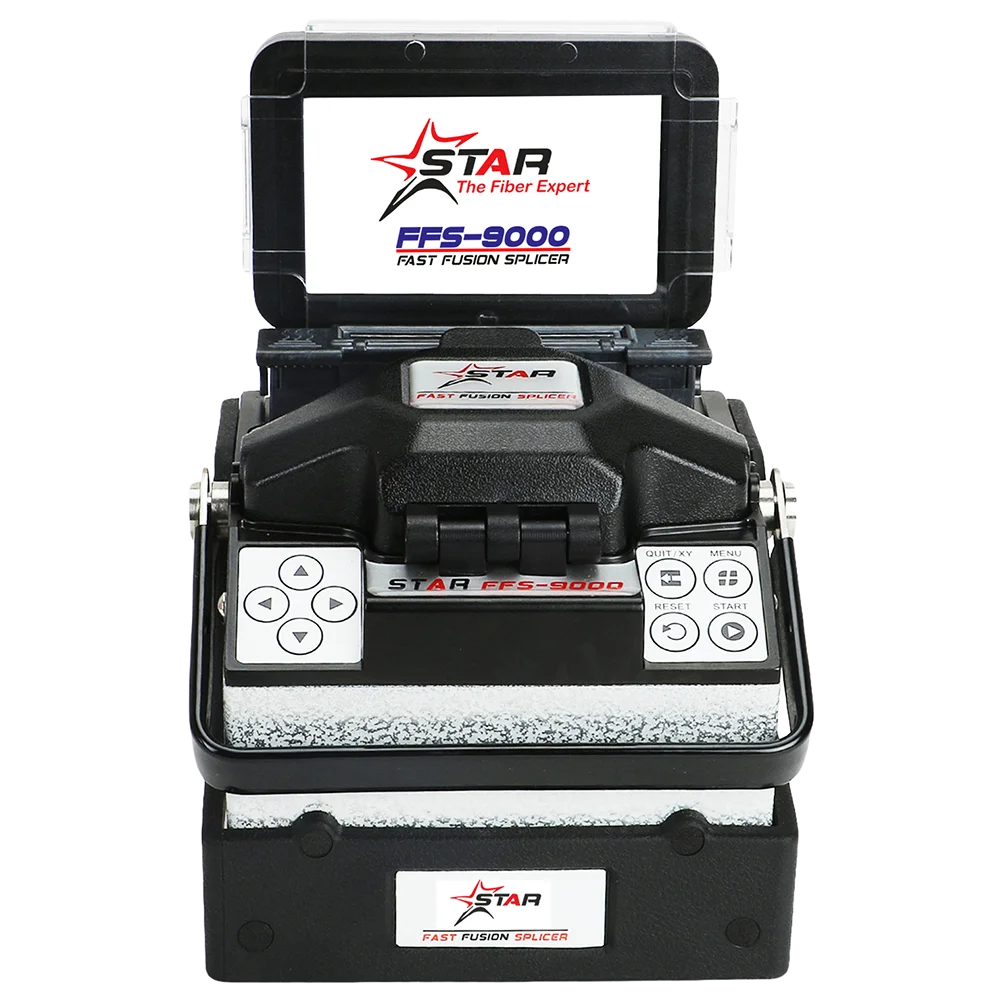

STAR FFS-9000 Fusion Splicer (CORE TO CORE)

Name: STAR FFS-9000 Fusion Splicer (CORE TO CORE)
Brand: TechPotli
SKU: STARFFS9
Price: 131000 INR
Availability: InStock
Rating: 5 (1 reviews)

Original price was: ₹165,000.00.Current price is: ₹131,000.00.

100 in stock

Compare

SKU: STARFFS9 Category: SPLICING MACHINE Tag: FUSION SINGLE SPLICING MACHINE

Description
Reviews (0)

The Star FFS-9000 Optical Fiber Fusion Splicer is a top-notch fusion splicing machine specially developed with the capability of carrying out a precise splicing process of fusing two broken single micro strands of fiber optic cable ends. It has a double-core alignment structure, a higher success rate of fusion, and a lower loss. This machine has more features and capabilities, like more battery capacity and colorized LCD screen, etc. Therefore, we can see that the splicer is really outstanding in terms of features, such as its accurate micro-alignment function and long battery life, these are the core features and functionalities that clients and businesses are seeking.

It has a typical fusion time of 7 seconds and a typical quick heating time, with automatic intelligent heating when closing the cover. This has brought this machine to the top of the list of splicing machines in demand today in the market.The FFS-9000 is ahead of other fusion splicing machines with its reliable design and strengthened functions like shockproof, dust proof, and others. With FFS-9000, it will be easier to cover all the demands of our clients and businesses with a faster splicing process and more efficiency.

Category: Fusion SplicersBrand: Star

Description

The FFS-9000 is a portable splicing machine, with a low-power consumption design that makes it possible to work longer with many functions operating at the same time. Performance is always top priority with FFS-9000, and customer satisfaction is a sure result, not to mention its cost effectiveness.

Multi-functional, small-sized, portable, and efficient in its work. The Star FFS-9000 is capable of detecting air pressure, temperature, humidity, and other environmental factors and automatically calibrating arc, making it easier for a fiber rectification team and its members to carry it on-site for carrying out day-to-day operational activities like fusing broken fiber cable. well suited for splicing joints in GPON and single mode fibers, as well as for pig-tailing new fibers and inspecting the installed ones.

The FFS 9000 Fusion Splicer is designed and manufactured in India for the global market; it is the first Fusion Splicer manufactured in India. The machine is a fully automatic, small, light, and aesthetically pleasing optical fibre fusion splicer with high performance, high safety.

Standard Package

1 Optical fiber fusion splicer
1 Power Adapter
1 Car Cigarette Lighter Charging Cable
1 Pair Spare Electrodes
1 Cooling Tray
1 Three Hold Stripper
1 Optical Fiber Holders
1 Fiber Cleaver
1 Carrying Case
1 Power Meter

Features

Double core align structure, higher success rate of fusion and lower loss.
Adopt 4.3 inches 16:9 TFT colorized LCD screen.
Typical fusion time: 7 seconds.
Typical heating time: 17 seconds, automatic intelligent heating when closing the cover.
Reliability design strengthens shockproof, dust-proof and other functions.
Low power consumption design makes it possible to work longer with many functions operating at the same time.
Multi-functional, small-sized, portable, greatly improving working efficiency.
Capable to detect air pressure, temperature and humidity and other environmental factors and automatically calibrate arc.
Pluggable battery, convenient and quick charge.

Product Specification

General

Applicable Fibers	Single / SMF(G.652/652D), MMF(G.651), DSF(G.653), NZDSF(G.655), G657A, G657B etc.
Cladding Dia./Sheath Dia.	80-150μm / 100-1000um
Cleave Length	5mm to 16mm
Splice Programs	Stored 40 Programs & 80 User-Configurable Options
Average Splice Loss	0.02dB (SM), 0.01dB(MM), 0.04dB(DS) and 0.04dB(NZDS) Measured by cut-back method relevant to ITU-T and IEC standards.
Return Loss	More than 60dB
Tube Heating Time	Typical 17sec, Slim 60mm, Slim 40mm Coating dia. 250um
Splice Time	7 Sec (Fast Mode) & 9 Sec (Typical)
Splice Loss Evaluation	Available
Tensile Test	2.25N
Screen	2 CMOS Camera with 4.3 inch Color LCD Non Touch for Fast Response
Optical Magnification	11.1V/6800 mAh lithium Battery, 13.5V/5A AC Adapter, 12V Car Power Supply
Battery Usage	Typical Operating 250 (splice / heat shrink) on a Single Charge 3h
Result Storage	Last 10000 Records
Electrode Life	5000 splices
Data Interface	USB2.0, PC Software Upgrade / Data Management
Operating Condition	Altitude : 0 to 5,000m above sea level, Wind : 15m/sec Temperature : 10 to 50 deg C, Humidity : 0 to 95%RH, non-dew
Weight	1.54kg (Without Battery), 1.82kg (Including Battery)
Size	150D×130W×126H(mm)
Weather Protection	Shock Resistance, Dust Resistance and Rain Resistance
